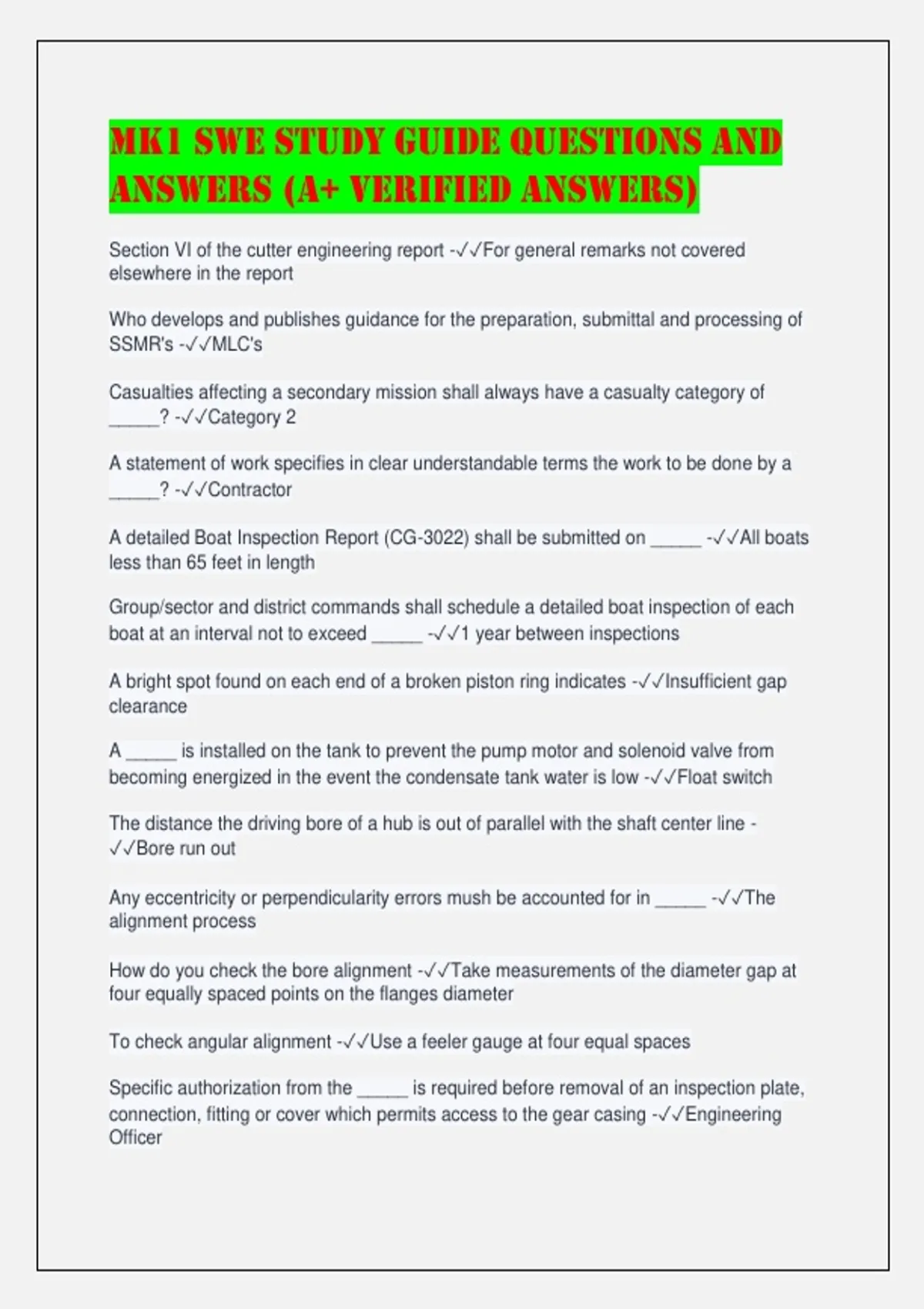

MK1 SWE Study Guide Questions and
Answers (A+ Verified Answers)
Section VI of the cutter engineering report -✓✓For general remarks not covered
elsewhere in the report
Who develops and publishes guidance for the preparation, submittal and processing of
SSMR's -✓✓MLC's
Casualties affecting a secondary mission shall always have a casualty category of
_____? -✓✓Category 2
A statement of work specifies in clear understandable terms the work to be done by a
_____? -✓✓Contractor
A detailed Boat Inspection Report (CG-3022) shall be submitted on _____ -✓✓All boats
less than 65 feet in length
Group/sector and district commands shall schedule a detailed boat inspection of each
boat at an interval not to exceed _____ -✓✓1 year between inspections
A bright spot found on each end of a broken piston ring indicates -✓✓Insufficient gap
clearance
A _____ is installed on the tank to prevent the pump motor and solenoid valve from
becoming energized in the event the condensate tank water is low -✓✓Float switch
The distance the driving bore of a hub is out of parallel with the shaft center line -
✓✓Bore run out
Any eccentricity or perpendicularity errors mush be accounted for in _____ -✓✓The
alignment process
How do you check the bore alignment -✓✓Take measurements of the diameter gap at
four equally spaced points on the flanges diameter
To check angular alignment -✓✓Use a feeler gauge at four equal spaces
Specific authorization from the _____ is required before removal of an inspection plate,
connection, fitting or cover which permits access to the gear casing -✓✓Engineering
Officer
,At the first sign of emulsion _____ and _____ -✓✓Stop the plant, change the oil
All cutters 65 feet and longer are required to maintain _____ -✓✓A machinery history
file
The amount of deflection of a crankshaft may be determined by the use of _____ -✓✓A
strain gauge
The _____ reports identifying info for all navy reporting system (NRS) messages.
Signifies beginning of formatted information. Also the message type and message
originator -✓✓MSGID
The _____ reports a units present location and effective date-time -✓✓POSIT
The _____ reports the requirement for outside assistance -✓✓ASSIST
SSMR Priority 1 -✓✓Immediate
SSMR Priority 2 -✓✓Early accomplishment, 6 months-2 years
SSMR Priority 3 -✓✓To be accomplished as normal back log up to 5 years
Reasons for SSMR change recommendations -✓✓-Safety
-Lack of personnel
-Interferences with wire, windows, doors, plumbing, etc
-Missing drawing or drawing parts
_____ contains data that is used to preserve the continuity of operational history of a
piece of equipment -✓✓Machinery history
Who determines what procedures are used to make a change to the SSMR -
✓✓Sector/Group SOP's
As a supervisor, during the planning stage, you should _____ -✓✓Check on all
materials like flexible hoses, gauges and all consumable materials before you start
working on any job
As a supervisor, while inspecting the job you should _____ -✓✓Carefully consider the
capabilities and experience of your personnel, then assign work
The _____ is responsible for ensuring all post overhaul tests, inspection and break-in
procedures are conducted -✓✓Supervisor
, Characterized by improper functioning of a torsion vibration dampner -✓✓Bent or
broken crankshaft
Characterized by the presence of fine abrasives in lubricants -✓✓Bearing wear causing
looseness without apparent surface degradation
If you have an OWS that doesn't discharge oil, it could be the _____ or the _____ -
✓✓Probe amplifier relay, oil sensing probe
All of the following information may be contained in the ID block of a schematic except
for the _____
a. Title b. Platform c. Sheet index d. Drawing number -✓✓C. Sheet index
No JP-5 fuel filter may be bypassed during helicopter refueling operations without the
concurrence of the _____, ______, and ______. -✓✓Commanding Officer, Engineering
Officer and Pilot in Charge
A deficiency exists in mission essential equipment that is worse than casualty category
3 and causes a loss of at least one primary mission -✓✓Casualty category 4
A deficiency exists in mission essential equipment that causes a major degradation but
not the loss of a primary mission -✓✓Casualty category 3
A deficiency exists in mission essential equipment and causes a minor degradation of
any primary mission or a major degradation or total loss of a secondary mission -
✓✓Casualty category 2
After an overhaul, the _____ in shall be conducted per manufacturers technical manual
and recorded -✓✓basic run in
Symptoms of excessive clearance between a piston and cylinder are _____ -✓✓Piston
slap and excessive oil consumption
Occasionally pistons and liners become insufficiently worn to permit the piston to lock
over into and drag on the cylinder liner wall
When using the load ring method, the droop must be eliminated to avoid unnecessary
load on the _____ -✓✓Marine transmission bearing
As close as possible to coupling but not interfere with mechanics taking the reading
Probable causes for no marine gear oil pressure are -✓✓-Low oil level
-Empty sump
-Fully clogged oil strainer
