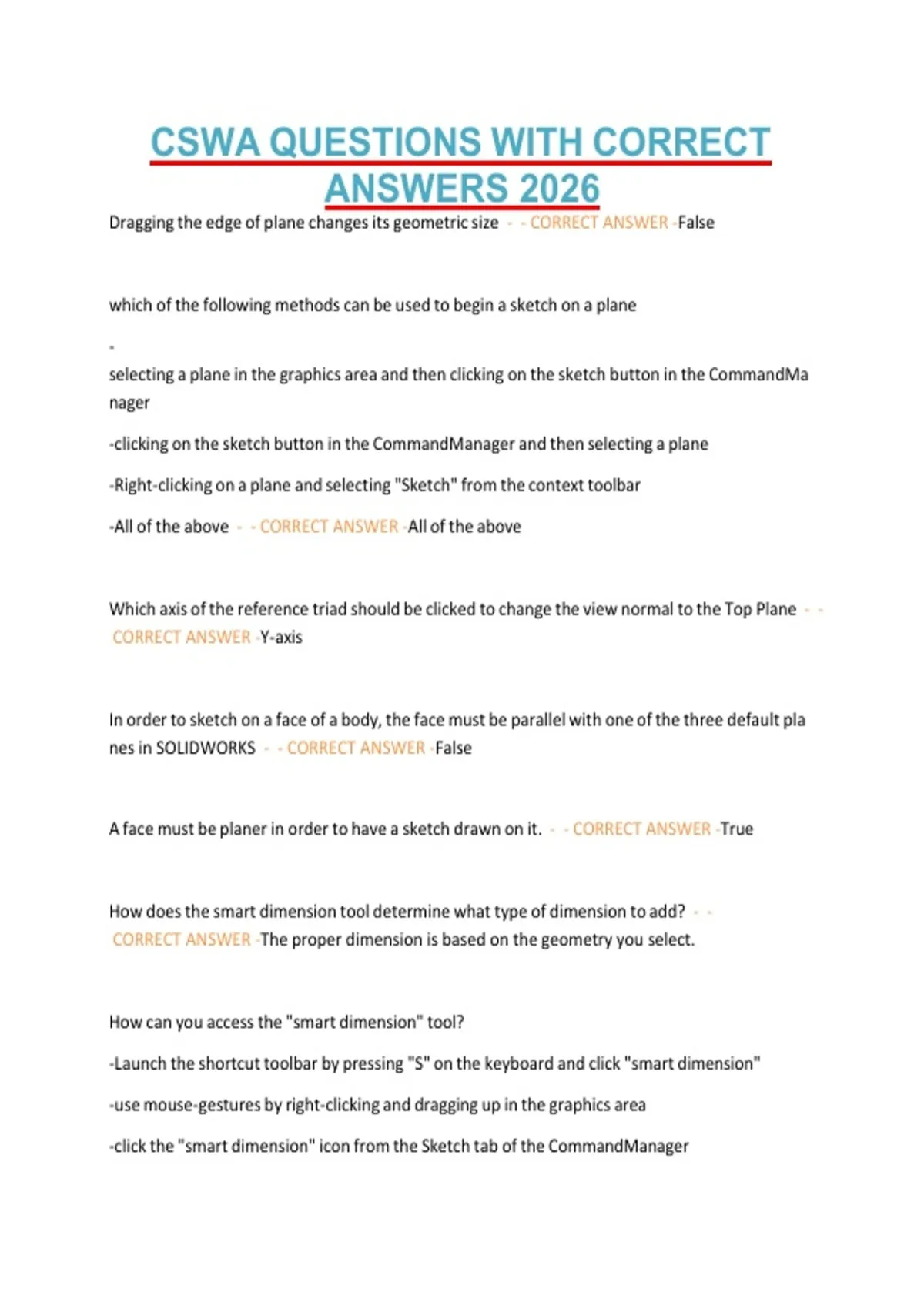

CSWA QUESTIONS WITH CORRECT
ANSWERS 2026
Dragging the edge of plane changes its geometric size - - CORRECT ANSWER -False
which of the following methods can be used to begin a sketch on a plane
-
selecting a plane in the graphics area and then clicking on the sketch button in the CommandMa
nager
-clicking on the sketch button in the CommandManager and then selecting a plane
-Right-clicking on a plane and selecting "Sketch" from the context toolbar
-All of the above - - CORRECT ANSWER -All of the above
Which axis of the reference triad should be clicked to change the view normal to the Top Plane - -
CORRECT ANSWER -Y-axis
In order to sketch on a face of a body, the face must be parallel with one of the three default pla
nes in SOLIDWORKS - - CORRECT ANSWER -False
A face must be planer in order to have a sketch drawn on it. - - CORRECT ANSWER -True
How does the smart dimension tool determine what type of dimension to add? - -
CORRECT ANSWER -The proper dimension is based on the geometry you select.
How can you access the "smart dimension" tool?
-Launch the shortcut toolbar by pressing "S" on the keyboard and click "smart dimension"
-use mouse-gestures by right-clicking and dragging up in the graphics area
-click the "smart dimension" icon from the Sketch tab of the CommandManager
, -All of the above - - CORRECT ANSWER -All of the above
When you select an arc, the smart dimension tool automatically adds whatPtype of dimension? - -
CORRECT ANSWER -Radical
Using the Modify Dialog box, how can you edit the value of a dimension?
-use the spinbox to increase or decrease the value
-use the arrows to increase or decrease the value
-click in the window and type in a new value
-all of the above - - CORRECT ANSWER -All of the above
When dimensioning to centerlines, Solidworks provides the ability to change from linear to diam
eter dimensions. - - CORRECT ANSWER -True
which of the following line types cannot have a length specified prior to it being drawn? - -
CORRECT ANSWER -As sketched
Which of the following is not available option for a line? - - CORRECT ANSWER
- To make the line "snap to axes"
Which line type includes an option to enable the "add dimensions" checkbox? -
- CORRECT ANSWER -angle
using the blue inference lines while sketching will result in automatic relation being established
between sketch entities being drawn and other sketch geometry - - CORRECT ANSWER -False
