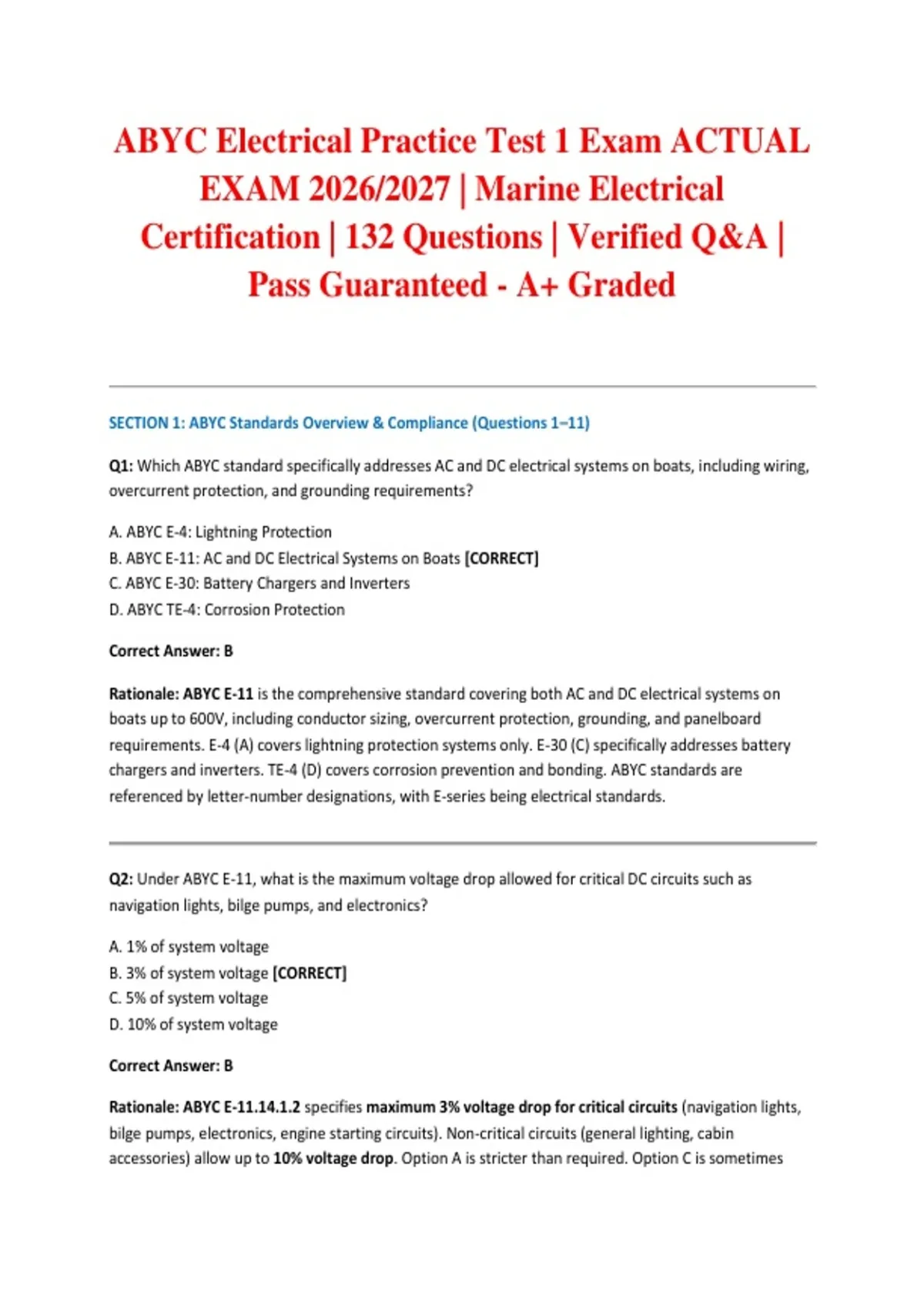

ABYC Electrical Practice Test 1 Exam ACTUAL
EXAM 2026/2027 | Marine Electrical
Certification | 132 Questions | Verified Q&A |
Pass Guaranteed - A+ Graded
SECTION 1: ABYC Standards Overview & Compliance (Questions 1–11)
Q1: Which ABYC standard specifically addresses AC and DC electrical systems on boats, including wiring,
overcurrent protection, and grounding requirements?
A. ABYC E-4: Lightning Protection
B. ABYC E-11: AC and DC Electrical Systems on Boats [CORRECT]
C. ABYC E-30: Battery Chargers and Inverters
D. ABYC TE-4: Corrosion Protection
Correct Answer: B
Rationale: ABYC E-11 is the comprehensive standard covering both AC and DC electrical systems on
boats up to 600V, including conductor sizing, overcurrent protection, grounding, and panelboard
requirements. E-4 (A) covers lightning protection systems only. E-30 (C) specifically addresses battery
chargers and inverters. TE-4 (D) covers corrosion prevention and bonding. ABYC standards are
referenced by letter-number designations, with E-series being electrical standards.
Q2: Under ABYC E-11, what is the maximum voltage drop allowed for critical DC circuits such as
navigation lights, bilge pumps, and electronics?
A. 1% of system voltage
B. 3% of system voltage [CORRECT]
C. 5% of system voltage
D. 10% of system voltage
Correct Answer: B
Rationale: ABYC E-11.14.1.2 specifies maximum 3% voltage drop for critical circuits (navigation lights,
bilge pumps, electronics, engine starting circuits). Non-critical circuits (general lighting, cabin
accessories) allow up to 10% voltage drop. Option A is stricter than required. Option C is sometimes
,used for non-critical but exceeds ABYC limits. Option D is only for non-critical circuits. Voltage drop
calculations must use the round-trip circuit length (positive and negative conductors).
Q3: Which standard governs the installation of battery chargers and inverters on boats, including
requirements for temperature compensation and multi-stage charging?
A. ABYC E-11
B. ABYC E-4
C. ABYC E-30: Battery Chargers and Inverters [CORRECT]
D. ABYC H-24: Gasoline Fuel Systems
Correct Answer: C
Rationale: ABYC E-30 specifically addresses battery chargers, inverters, and converter installations,
including requirements for temperature compensation, multi-stage charging profiles, and installation
location relative to batteries. While E-11 (A) covers general wiring, E-30 provides charger-specific
requirements. E-4 (B) is lightning protection. H-24 (D) is fuel systems. E-30 ensures chargers don't
overcharge batteries at varying temperatures, which is critical for battery longevity and safety.
Q4: According to ABYC E-11, what is the required color coding for DC positive conductors on boats?
A. Red only
B. Yellow with red stripe [CORRECT]
C. Black only
D. Green with yellow stripe
Correct Answer: B
Rationale: ABYC E-11.14.4 specifies yellow base with red stripe for DC positive conductors (and yellow
with black stripe for negative). This differs from automotive (red/black) to prevent confusion. Red-only
(A) is automotive standard, not ABYC marine. Black (C) is DC negative in ABYC. Green/yellow (D) is AC
grounding conductor. The yellow base with colored stripe system is unique to marine DC wiring and
reduces confusion with AC wiring colors.
Q5: What is the maximum ambient temperature correction factor applied to wire ampacity when
conductors are routed through engine spaces according to ABYC E-11?
A. No correction required – engine spaces are standard temperature
B. 0.75 (25% derating) for engine room ambient of 50°C [CORRECT]
,C. 0.50 (50% derating) for all engine room wiring
D. 1.25 (25% increase) because engine heat improves conductivity
Correct Answer: B
Rationale: ABYC E-11.14.4.2 requires ampacity derating for engine room temperatures. Standard wire
ampacity tables assume 30°C ambient. Engine rooms operate at approximately 50°C, requiring 0.75
correction factor (25% reduction in allowable current). This prevents insulation damage from combined
current heat and ambient heat. Option C overstates derating. Option D is physically incorrect—heat
reduces ampacity. Engine room wiring must use 105°C rated insulation minimum.
Q6: Which standard covers corrosion prevention, including bonding systems, galvanic protection, and
stray current protection for boats?
A. ABYC E-11
B. ABYC E-4
C. ABYC TE-4: Corrosion Protection [CORRECT]
D. ABYC E-30
Correct Answer: C
Rationale: ABYC TE-4 (Technical Standard) covers corrosion prevention including bonding system
requirements, galvanic anode selection, isolation transformers, and stray current protection. E-11 (A)
references bonding but TE-4 provides comprehensive corrosion guidance. E-4 (B) is lightning protection.
E-30 (D) is battery charging. TE-4 is essential for preventing galvanic corrosion between dissimilar metals
in marine environments.
Q7: Under ABYC E-11, what is the maximum allowable resistance between any two bonded components
in a bonding system?
A. 1.0 ohm
B. 0.5 ohm
C. 0.1 ohm [CORRECT]
D. 0.01 ohm
Correct Answer: C
Rationale: ABYC E-11.17.2 (and TE-4) specifies maximum 0.1 ohm resistance between bonded
components. This ensures effective equalization of potential, preventing galvanic corrosion and
ensuring electrical continuity for lightning protection and stray current dissipation. Higher resistance (A,
B) allows potential differences that cause corrosion. Option D is unnecessarily stringent and difficult to
, achieve consistently. Testing requires a low-resistance ohmmeter (milliohmmeter) with proper
calibration.
Q8: A marine technician is selecting wire for a 12V DC bilge pump circuit. According to ABYC E-11, what
is the minimum insulation temperature rating required for wire in non-engine spaces?
A. 60°C
B. 75°C
C. 105°C [CORRECT]
D. 200°C
Correct Answer: C
Rationale: ABYC E-11.14.4.1 requires minimum 105°C insulation rating for all marine DC wiring (both
engine room and non-engine room). This exceeds household/automotive standards (60°C–75°C) due to
marine environment challenges (engine heat, sunlight in bilges, potential chafing). Higher temperature
rating provides safety margin. 200°C (D) is specialty wire (silicone, Teflon) used for specific high-heat
applications but not required by ABYC for general circuits.
Q9: Which of the following is NOT a requirement for shore power inlet installations under ABYC E-11?
A. NEMA locking-type inlet (L5-30, L14-30, etc.)
B. Proper strain relief to prevent conductor damage
C. Reverse polarity indicator or protection device
D. GFCI protection on all shore power inlets regardless of amperage
Correct Answer: D
Rationale: GFCI protection is not universally required on all shore power inlets—ABYC E-11 requires
GFCI or ELCI (Equipment Leakage Circuit Interrupter) protection for 120V AC shore power circuits, but
specific requirements depend on system configuration and amperage. NEMA locking inlets (A), strain
relief (B), and reverse polarity protection (C) are all mandatory. ELCI protection (30mA trip) is required
for shore power inlets on boats, but this is distinct from GFCI (5mA trip) used for branch circuits. The
question tests nuanced understanding of protection device requirements.
Q10: Under ABYC E-11, what is the maximum distance allowed between the main battery disconnect
switch and the battery it controls?
A. 24 inches (610 mm)
B. 48 inches (1,220 mm)
