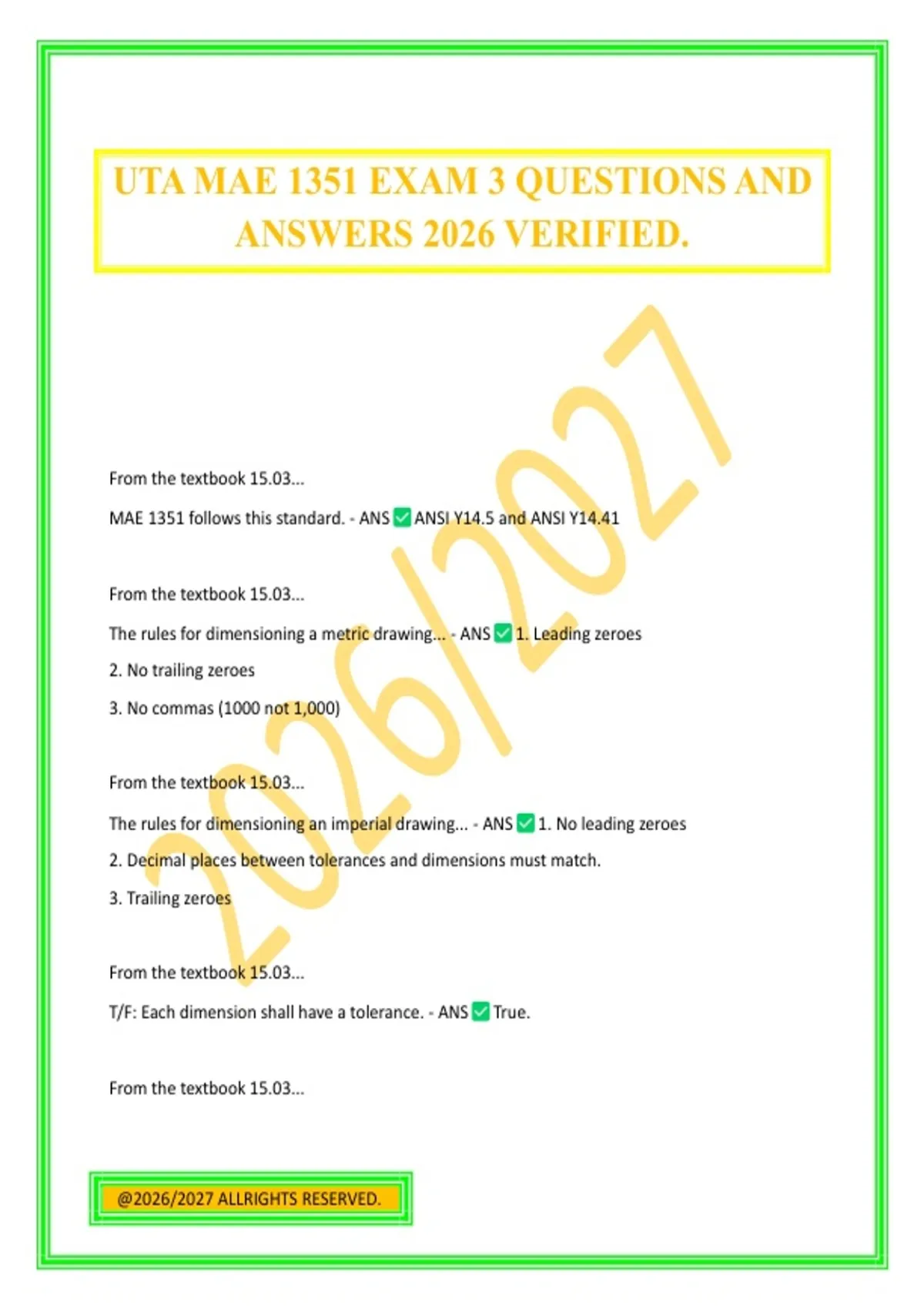

UTA MAE 1351 EXAM 3 QUESTIONS AND
ANSWERS 2026 VERIFIED.
From the textbook 15.03...
MAE 1351 follows this standard. - ANS ANSI Y14.5 and ANSI Y14.41
From the textbook 15.03...
The rules for dimensioning a metric drawing... - ANS 1. Leading zeroes
2. No trailing zeroes
3. No commas (1000 not 1,000)
From the textbook 15.03...
The rules for dimensioning an imperial drawing... - ANS 1. No leading zeroes
2. Decimal places between tolerances and dimensions must match.
3. Trailing zeroes
From the textbook 15.03...
T/F: Each dimension shall have a tolerance. - ANS True.
From the textbook 15.03...
@2026/2027 ALLRIGHTS RESERVED.
,T/F: Dimensioning and tolerancing shall be complete so there is a full understanding of the
characteristics of most features. - ANS False, there must be full understanding of all features.
No ambiguity.
From the textbook 15.03...
T/F: Each necessary dimension of an end product shall be shown, no more dimensions than
those necessary for complete definition shall be given. - ANS True.
From the textbook 15.03...
T/F: The drawing should define a part, as well as specifying manufacturing methods. -
ANS False, manufacturing methods are not to be specified in engineering drawings.
From the textbook 15.03...
T/F: Dimensions should be shown in true profile views, and refer to visible outlines in an
arrangement that provides information for optimum readability. - ANS True.
From the textbook 15.04...
Define dimension. - ANS A numerical value expressed in appropriate units of measure and
used to define the size, location, geometric characteristic, or surface texture of a party or part
feature.
From the textbook 15.04...
Define arrowhead. - ANS A small triangle at the end of dimension line and leaders to indicate
the direction and extent of a dimension.
From the textbook 15.04...
Define dimension line. - ANS A thin, dark, solid line that terminates at each end with
arrowheads. The value of a dimension is typically shown in the center of the dimension line.
From the textbook 15.04...
@2026/2027 ALLRIGHTS RESERVED.
, Define extension line. - ANS A thin, dark, solid line extending from a point on an object
perpendicular to a dimension line. Used to indicate the extension of a surface or point to a
location preferably outside the part outline.
From the textbook 15.04...
Define leader. - ANS A thin, dark, solid line terminating with an arrowhead at one end and a
dimension, note or symbol at the other. Used to direct a dimension , note or symbol to the
intended place on the drawing.
From the textbook 15.05...
What is the contour rule? (contour dimensioning) - ANS - Each dimension should be placed in
the view where the contour shape is best shown.
- Dimension only to solid lines.
From the textbook 15.05...
Dimensions that help to define outer boundaries of parts quickly. - ANS Overall dimensions.
From the textbook 15.05...
Dimensions identified by numbers enclosed within parentheses. - ANS Reference dimensions.
From the textbook 15.06...
Circles are typically dimensioned as, _____ and arcs are typically dimensioned as, _______. -
ANS Diameters, Radii.
From the textbook 15.06...
What kind of dimensioning?
- All dimensions in a given direction originate from a base or datum.
- Frequently used for CNC machines that work from a rectangular coordinate system. -
ANS Baseline dimensioning.
@2026/2027 ALLRIGHTS RESERVED.
