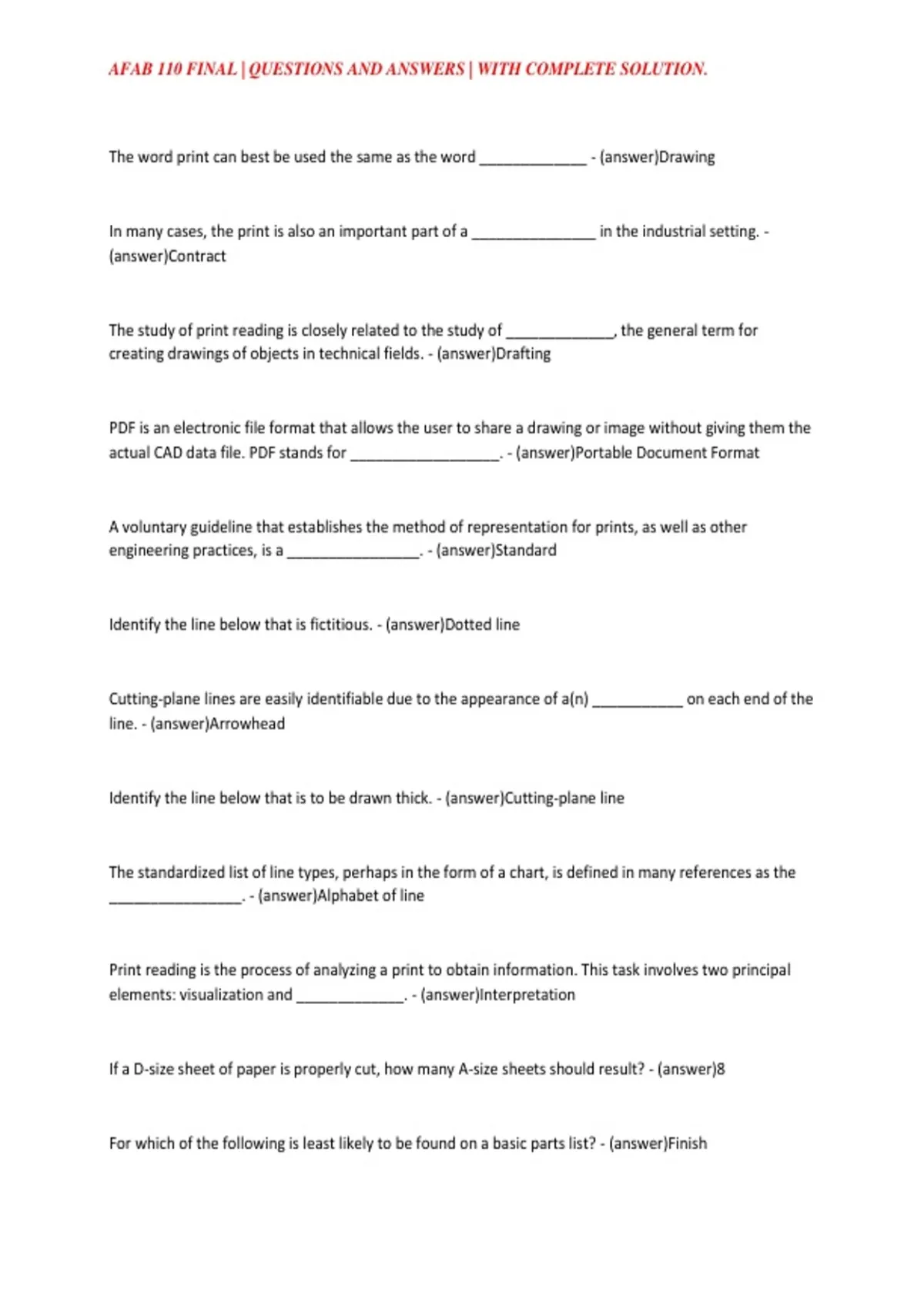

AFAB 110 FINAL | QUESTIONS AND ANSWERS | WITH COMPLETE SOLUTION.
The word print can best be used the same as the word _____________ - (answer)Drawing
In many cases, the print is also an important part of a _______________ in the industrial setting. -
(answer)Contract
The study of print reading is closely related to the study of _____________, the general term for
creating drawings of objects in technical fields. - (answer)Drafting
PDF is an electronic file format that allows the user to share a drawing or image without giving them the
actual CAD data file. PDF stands for __________________. - (answer)Portable Document Format
A voluntary guideline that establishes the method of representation for prints, as well as other
engineering practices, is a ________________. - (answer)Standard
Identify the line below that is fictitious. - (answer)Dotted line
Cutting-plane lines are easily identifiable due to the appearance of a(n) ___________ on each end of the
line. - (answer)Arrowhead
Identify the line below that is to be drawn thick. - (answer)Cutting-plane line
The standardized list of line types, perhaps in the form of a chart, is defined in many references as the
________________. - (answer)Alphabet of line
Print reading is the process of analyzing a print to obtain information. This task involves two principal
elements: visualization and _____________. - (answer)Interpretation
If a D-size sheet of paper is properly cut, how many A-size sheets should result? - (answer)8
For which of the following is least likely to be found on a basic parts list? - (answer)Finish
, AFAB 110 FINAL | QUESTIONS AND ANSWERS | WITH COMPLETE SOLUTION.
A block that is important to read in the early stage of examining a print is the ___________ block, which
helps determine if the print being observed is up-to-date. - (answer)Revision history
Which of the following is least likely to be found on a basic parts list? - (answer)Finish
The word that basically means "cut in half" is _______________. - (answer)Bisect
If a hexagon is inscribed within a circle, the diameter of the circle is equivalent to the term __________.
- (answer)Across-the-corners
In most CAD systems, the basic geometric forms used to create complex models are referred to as
_______________. - (answer)Primitives
As lines are parallel to each other, arcs are ________________ to each other. - (answer)Concentric
Which of the following is a way to describe the point of tangency between two circles? - (answer)Found
on a line connecting the two center points
Which of the following cannot be defined by the way a plane intersects a cone? - (answer)Ogee curve
Which of the following is not an example of a spatial visualization instrument? - (answer)Playing 3D tic-
tac-toe
There are three dimension terms common to drafting education. Which of the following is not correct? -
(answer)Length
The type of section view wherein the cutting-plane line has bends to accommodate several features that
are not aligned is a(n) ________ section. - (answer)Offset
The word print can best be used the same as the word _____________ - (answer)Drawing
In many cases, the print is also an important part of a _______________ in the industrial setting. -
(answer)Contract
The study of print reading is closely related to the study of _____________, the general term for
creating drawings of objects in technical fields. - (answer)Drafting
PDF is an electronic file format that allows the user to share a drawing or image without giving them the
actual CAD data file. PDF stands for __________________. - (answer)Portable Document Format
A voluntary guideline that establishes the method of representation for prints, as well as other
engineering practices, is a ________________. - (answer)Standard
Identify the line below that is fictitious. - (answer)Dotted line
Cutting-plane lines are easily identifiable due to the appearance of a(n) ___________ on each end of the
line. - (answer)Arrowhead
Identify the line below that is to be drawn thick. - (answer)Cutting-plane line
The standardized list of line types, perhaps in the form of a chart, is defined in many references as the
________________. - (answer)Alphabet of line
Print reading is the process of analyzing a print to obtain information. This task involves two principal
elements: visualization and _____________. - (answer)Interpretation
If a D-size sheet of paper is properly cut, how many A-size sheets should result? - (answer)8
For which of the following is least likely to be found on a basic parts list? - (answer)Finish
, AFAB 110 FINAL | QUESTIONS AND ANSWERS | WITH COMPLETE SOLUTION.
A block that is important to read in the early stage of examining a print is the ___________ block, which
helps determine if the print being observed is up-to-date. - (answer)Revision history
Which of the following is least likely to be found on a basic parts list? - (answer)Finish
The word that basically means "cut in half" is _______________. - (answer)Bisect
If a hexagon is inscribed within a circle, the diameter of the circle is equivalent to the term __________.
- (answer)Across-the-corners
In most CAD systems, the basic geometric forms used to create complex models are referred to as
_______________. - (answer)Primitives
As lines are parallel to each other, arcs are ________________ to each other. - (answer)Concentric
Which of the following is a way to describe the point of tangency between two circles? - (answer)Found
on a line connecting the two center points
Which of the following cannot be defined by the way a plane intersects a cone? - (answer)Ogee curve
Which of the following is not an example of a spatial visualization instrument? - (answer)Playing 3D tic-
tac-toe
There are three dimension terms common to drafting education. Which of the following is not correct? -
(answer)Length
The type of section view wherein the cutting-plane line has bends to accommodate several features that
are not aligned is a(n) ________ section. - (answer)Offset
