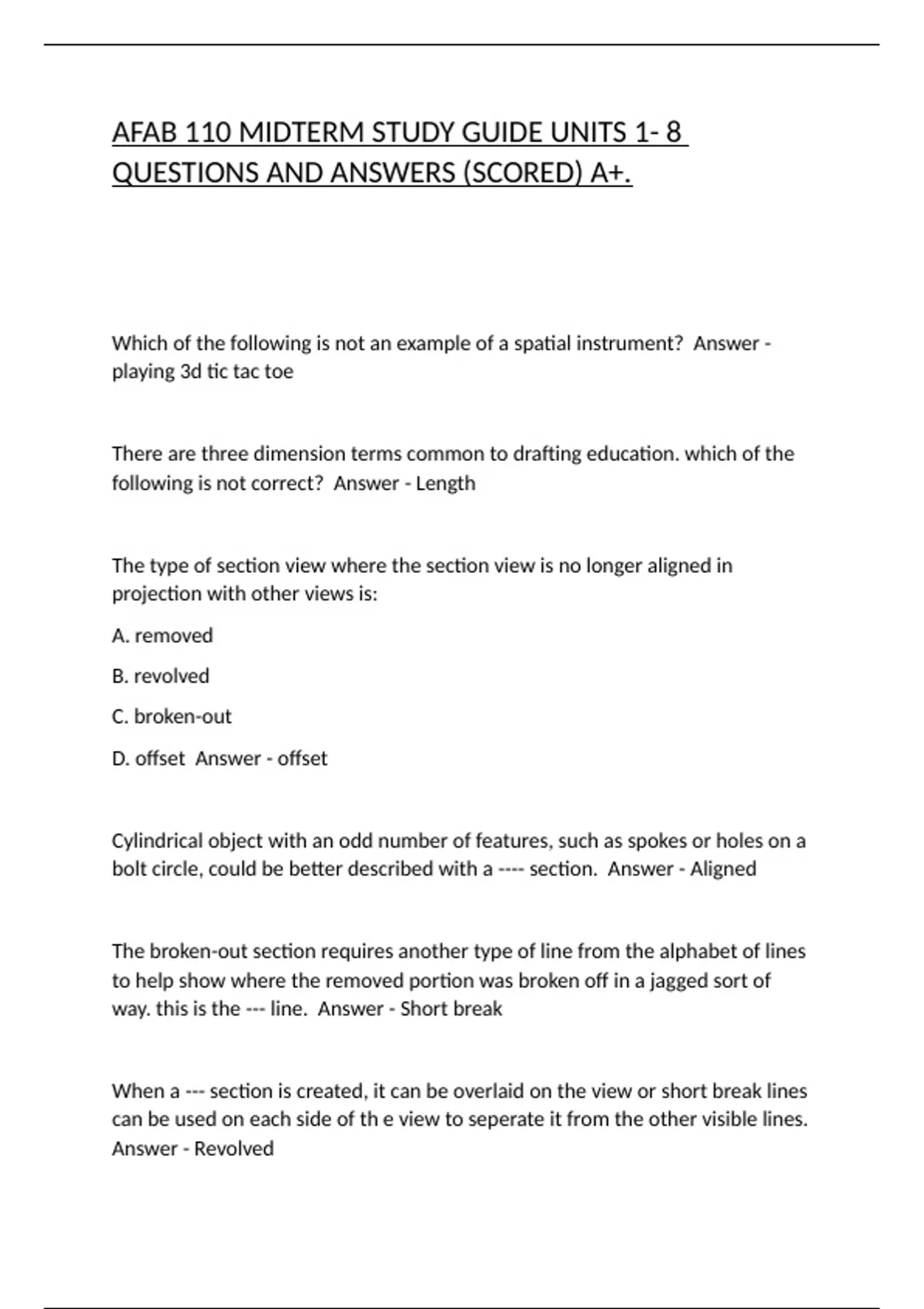

AFAB 110 MIDTERM STUDY GUIDE UNITS 1- 8
QUESTIONS AND ANSWERS (SCORED) A+.
Which of the following is not an example of a spatial instrument? Answer -
playing 3d tic tac toe
There are three dimension terms common to drafting education. which of the
following is not correct? Answer - Length
The type of section view where the section view is no longer aligned in
projection with other views is:
A. removed
B. revolved
C. broken-out
D. offset Answer - offset
Cylindrical object with an odd number of features, such as spokes or holes on a
bolt circle, could be better described with a ---- section. Answer - Aligned
The broken-out section requires another type of line from the alphabet of lines
to help show where the removed portion was broken off in a jagged sort of
way. this is the --- line. Answer - Short break
When a --- section is created, it can be overlaid on the view or short break lines
can be used on each side of th e view to seperate it from the other visible lines.
Answer - Revolved
, Type of section wherein the section view is probably located out of projection
with the other regular or auxiliary views is a --- section. Answer - Removed
There is a conventional practice that allows the drafter to leave a feature
unhatched, even though the cutting-plane line passes through it. Which of the
following is not relevent to this conventional practice? Answer - Hole
If there is a large area that needs to receive section lines, the ____ section
allows for the section lines to only be applied around the perimeter. Answer -
outline
In assembly drawings, there may be some parts that do not receive section
lines, but rather the area cut by the cutting-plane line is filled-in solid. Which of
the following is not relevant to this conventional practice? Answer - Springs
T/F each type of line in the standards has one, and only one, option for its
appearance. Answer - False
t/f In recent years, the standards have only recommended two line weights:
thick and thin. Answer - True
T/F Sometimes, hidden lines are omitted on complex views when the drawing is
clear without them. Answer - true
T/F The latest standards set forth the appearance of each line available for
industrial prints, including exact line thickness and exact dash and space
lengths. Answer - false
