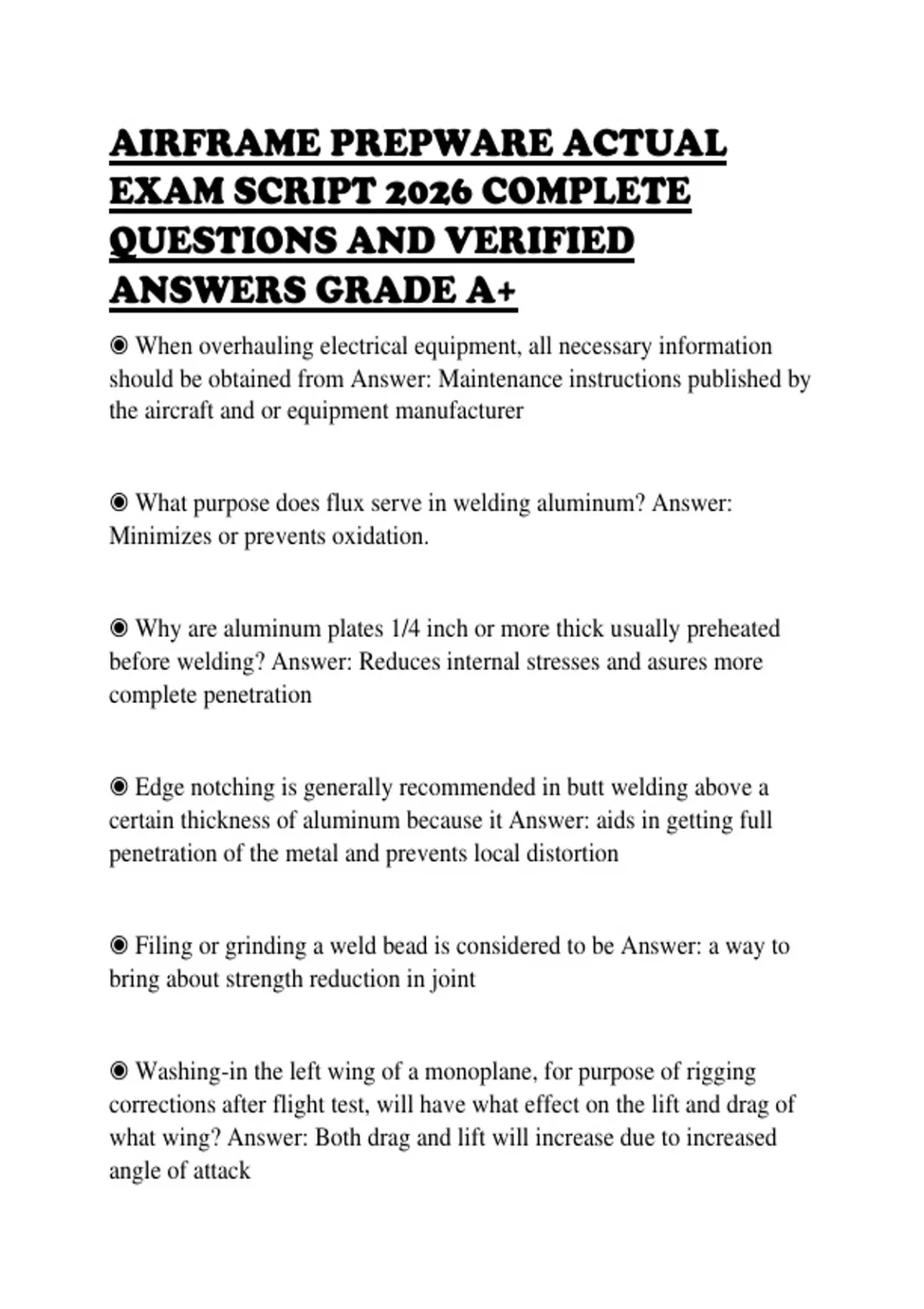

AIRFRAME PREPWARE ACTUAL
EXAM SCRIPT 2026 COMPLETE
QUESTIONS AND VERIFIED
ANSWERS GRADE A+
◉ When overhauling electrical equipment, all necessary information
should be obtained from Answer: Maintenance instructions published by
the aircraft and or equipment manufacturer
◉ What purpose does flux serve in welding aluminum? Answer:
Minimizes or prevents oxidation.
◉ Why are aluminum plates 1/4 inch or more thick usually preheated
before welding? Answer: Reduces internal stresses and asures more
complete penetration
◉ Edge notching is generally recommended in butt welding above a
certain thickness of aluminum because it Answer: aids in getting full
penetration of the metal and prevents local distortion
◉ Filing or grinding a weld bead is considered to be Answer: a way to
bring about strength reduction in joint
◉ Washing-in the left wing of a monoplane, for purpose of rigging
corrections after flight test, will have what effect on the lift and drag of
what wing? Answer: Both drag and lift will increase due to increased
angle of attack
,◉ Improper rigging of the elevator trim tab system will affect the
balance of the airplane about its Answer: Lateral axis
◉ A reduction in anti-torque thrust will cause the Answer: tail to pivot
in the direction of torque rotation around the main rotor axis
◉ a helicopter in forward flight, cruise configuration, changes direction
by Answer: tilting the main rotor disk in the desired direction
◉ An airplane is controlled directionally about its vertical axis by the
Answer: rudder
◉ Proper wing twist in a sheet metal constructed wing can usually be
checked by utilizing a Answer: bubble level and special fixtures
described by the manufacturer
◉ If all instructions issued by the swaging tool manufacturer are
followed when swaging a cable terminal, the resultant swaged terminal
strength should be Answer: the full rated strenght of the cable
◉ A rivet set used to drive MS20470 rivets should Answer: have a
slightly greater radius than the rivet head.
, ◉ Fiberglass laminate damage not exceeding the first layer or ply can be
repaired by Answer: filling with a putty consisting of a compatible resin
and clean, short glass fibers
◉ what is the minimun edge distance allowed for aluminum alloy single
lap sheet splices containing a single row of rivets as compared to a joint
with multiple rows, all rivets being equal in diameter? Answer: the
minimum edge distance for the single row is equal to that for the
multiple row
◉ One method of inspecting a laminated fiberglass structure that has
been subjected to damage is to Answer: strip the damaged area of all
paint and shine strong light trough the structure
◉ When a piece of aluminum alloy is to be bent using a minimum radius
for the type and thickness of material, Answer: the layout should be
made so that the bend will be 90 to the grain of the sheet
◉ what is the minimun spacing for a single row of aircraft rivets?
Answer: Three times the diameter of the rivet shank
◉ Which is considered good practice concerning the installation of
acrylic plastics? Answer: when rivets are used, adequate spacer or other
satisfactory means to prevent excessive tightening of the frame to the
plastic should provided
