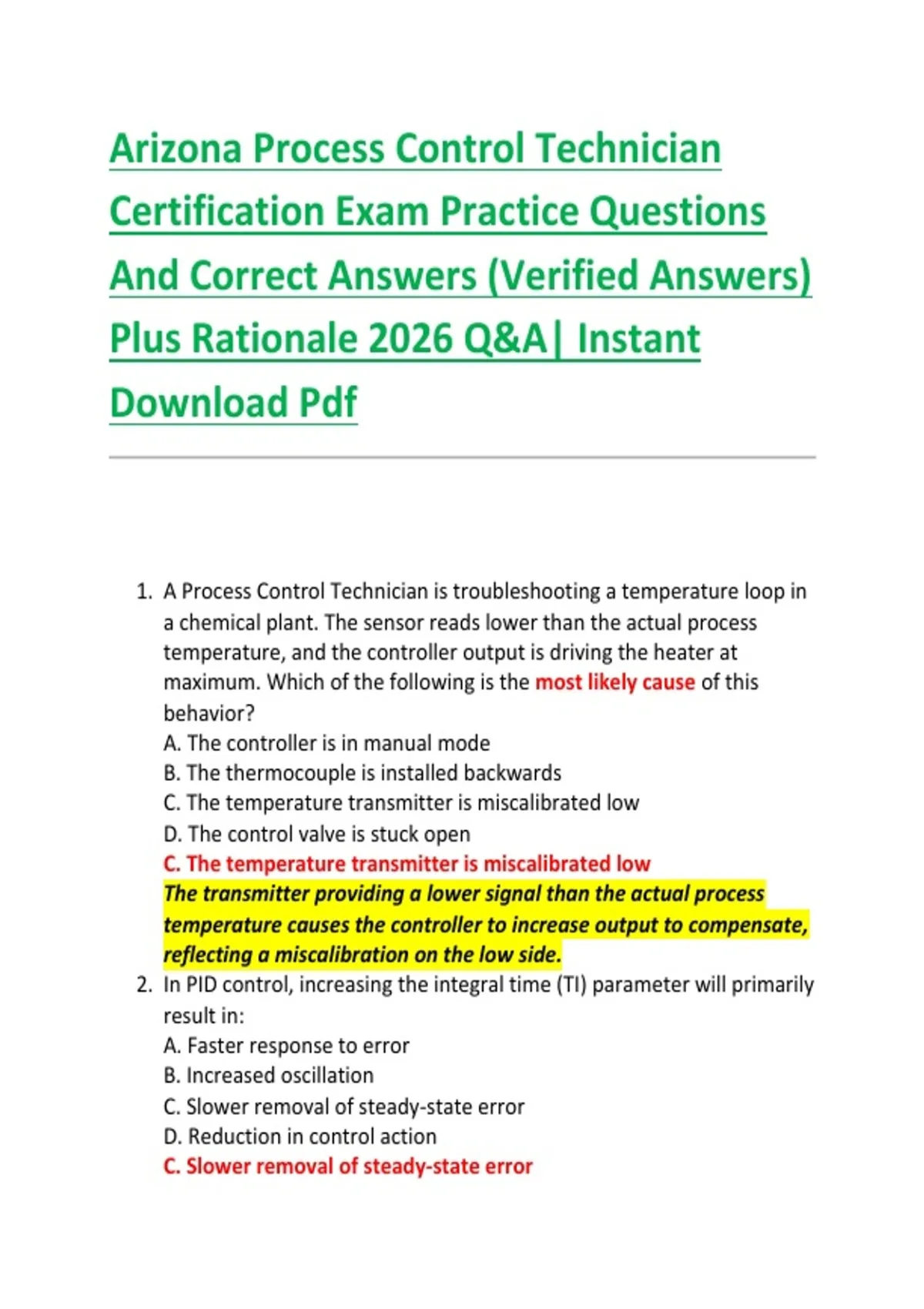

Arizona Process Control Technician
Certification Exam Practice Questions
And Correct Answers (Verified Answers)
Plus Rationale 2026 Q&A| Instant
Download Pdf
1. A Process Control Technician is troubleshooting a temperature loop in
a chemical plant. The sensor reads lower than the actual process
temperature, and the controller output is driving the heater at
maximum. Which of the following is the most likely cause of this
behavior?
A. The controller is in manual mode
B. The thermocouple is installed backwards
C. The temperature transmitter is miscalibrated low
D. The control valve is stuck open
C. The temperature transmitter is miscalibrated low
The transmitter providing a lower signal than the actual process
temperature causes the controller to increase output to compensate,
reflecting a miscalibration on the low side.
2. In PID control, increasing the integral time (TI) parameter will primarily
result in:
A. Faster response to error
B. Increased oscillation
C. Slower removal of steady-state error
D. Reduction in control action
C. Slower removal of steady-state error
, Lengthening the integral time reduces the aggressiveness of the
integral action, slowing the elimination of steady-state offsets.
3. A flow transmitter outputs 4–20 mA corresponding to 0–1000 L/min. If
the controller receives 12 mA, what is the measured flow?
A. 250 L/min
B. 400 L/min
C. 500 L/min
D. 600 L/min
C. 500 L/min
12 mA is halfway between 4 and 20 mA, representing 50% of span,
which equals 500 L/min in a 0–1000 L/min range.
4. A control valve positioner’s purpose is to:
A. Reduce hysteresis in a pressure transmitter
B. Enhance valve responsiveness and accuracy
C. Eliminate the need for a controller
D. Provide actuator lubrication
B. Enhance valve responsiveness and accuracy
Valve positioners ensure the actuator moves to the commanded
position quickly and accurately, improving control performance.
5. Which safety system is designed to bring a process to a safe state
independently of the normal control system?
A. PLC ladder logic
B. SCADA historian
C. Safety Instrumented System (SIS)
D. DCS trending
C. Safety Instrumented System (SIS)
SIS operates separately and is engineered to act when predefined
unsafe conditions occur, independent of the main control system.
6. In proportional control, if the gain is increased too high, the most
likely impact on the loop will be:
A. Improved stability
B. Increased steady-state error
C. Oscillatory behavior
D. Reduced responsiveness
C. Oscillatory behavior
, Excessive gain amplifies reaction to error, leading to instability and
oscillations in the process variable.
7. A PLC input card scans digital inputs every 10 ms. If a fast pulse occurs
for 5 ms, the PLC may:
A. Always detect the pulse
B. Never detect the pulse
C. Detect the pulse only if it synchronizes with scan
D. Invert the pulse signal
C. Detect the pulse only if it synchronizes with scan
Short pulses shorter than the scan period can be missed if they occur
between scans, leading to unreliable detection.
8. When calibrating a differential pressure transmitter on a boiler
feedwater flow loop, the technician should apply:
A. Equal pressures to both sides
B. Only high side pressure
C. Known differential pressures over span
D. Average atmospheric pressure
C. Known differential pressures over span
Applying calibrated differential pressures ensures the transmitter
output correctly represents the measured span for flow calculations.
9. A SCADA system provides all of the following functions EXCEPT:
A. Remote data acquisition
B. Real-time operator control
C. Spreadsheet budgeting
D. Alarm management
C. Spreadsheet budgeting
SCADA focuses on process monitoring, control, and alarms, not
business budgeting tasks.
10. A technician observes a pneumatic control signal of 3 psi to a
valve. If the full span is 3–15 psi, the valve is:
A. Closed
B. At mid-position
C. Fully open
D. At 25% open
A. Closed
