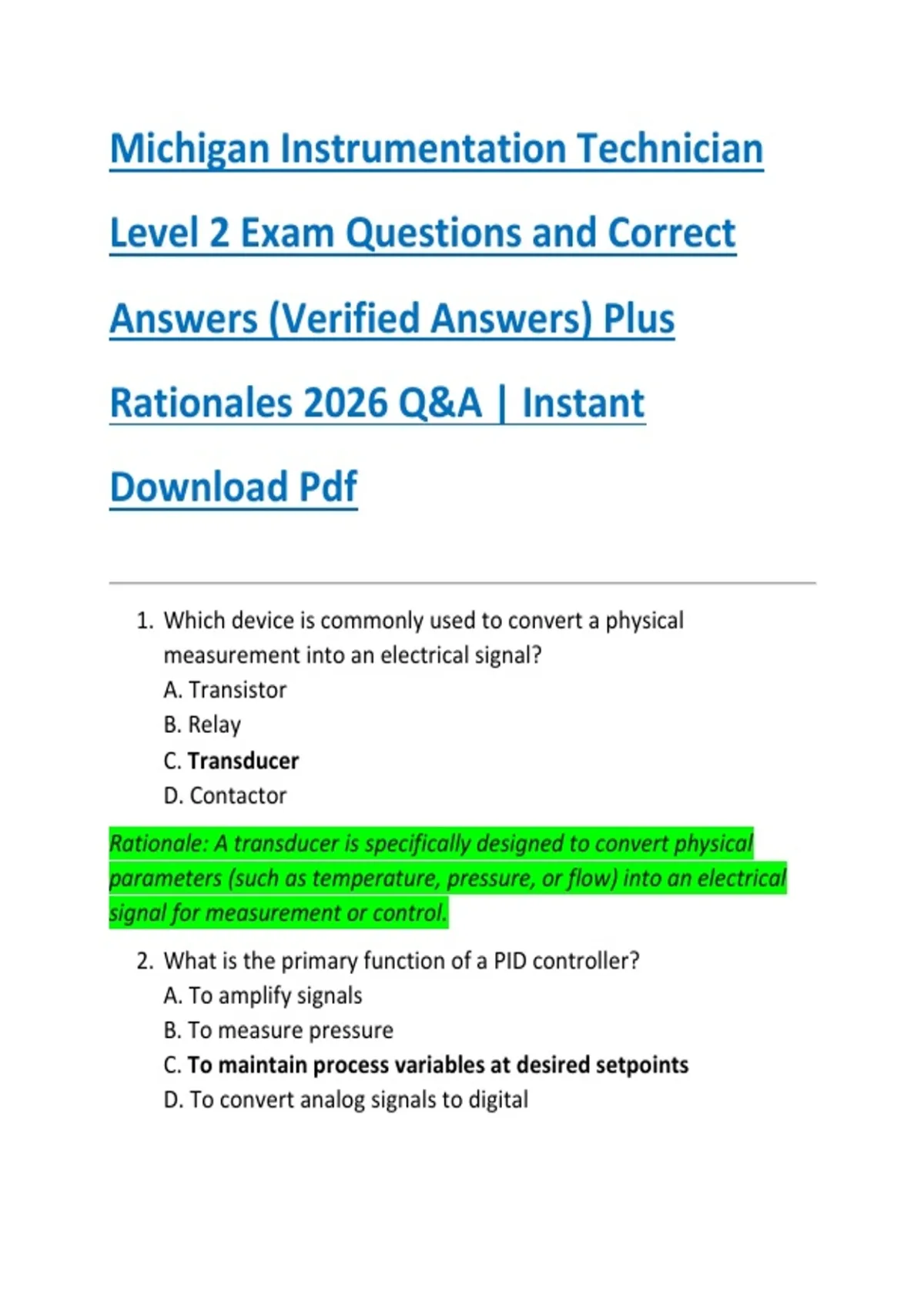

Michigan Instrumentation Technician
Level 2 Exam Questions and Correct
Answers (Verified Answers) Plus
Rationales 2026 Q&A | Instant
Download Pdf
1. Which device is commonly used to convert a physical
measurement into an electrical signal?
A. Transistor
B. Relay
C. Transducer
D. Contactor
Rationale: A transducer is specifically designed to convert physical
parameters (such as temperature, pressure, or flow) into an electrical
signal for measurement or control.
2. What is the primary function of a PID controller?
A. To amplify signals
B. To measure pressure
C. To maintain process variables at desired setpoints
D. To convert analog signals to digital
,Rationale: A PID (Proportional-Integral-Derivative) controller adjusts
output to maintain a process variable at its setpoint by compensating
for deviations.
3. Which type of sensor is most suitable for measuring fluid level
without direct contact?
A. RTD
B. Thermocouple
C. Ultrasonic sensor
D. Strain gauge
Rationale: Ultrasonic sensors emit sound waves and measure the time
taken for the echo to return, allowing non-contact level measurement.
4. In a 4–20 mA current loop, what does 4 mA represent?
A. Maximum process value
B. Zero or baseline process value
C. Half-scale value
D. Sensor error
Rationale: In instrumentation, 4 mA corresponds to the zero or baseline
measurement, and 20 mA corresponds to full scale.
5. What type of signal does a thermocouple generate?
A. Voltage proportional to resistance
B. Voltage proportional to temperature difference
C. Current proportional to flow
D. Frequency proportional to pressure
Rationale: Thermocouples produce a voltage due to the Seebeck effect,
which is proportional to the temperature difference between junctions.
6. Which device converts a digital signal into an analog signal?
A. ADC
B. DAC
, C. Sensor
D. PLC
Rationale: A Digital-to-Analog Converter (DAC) takes digital input
(binary) and produces a corresponding analog output.
7. Which type of sensor is affected by ambient temperature changes
the most?
A. Inductive
B. Capacitive
C. Thermistor
D. Piezoelectric
Rationale: Thermistors are highly sensitive to temperature changes, as
their resistance varies significantly with temperature.
8. A control valve is characterized by its flow coefficient, Cv. What
does Cv indicate?
A. Valve pressure rating
B. Maximum current
C. Flow rate in GPM for a 1 psi pressure drop
D. Valve size
Rationale: Cv represents the flow capacity of a valve, showing the flow
rate in gallons per minute (GPM) that will produce a 1 psi pressure drop.
9. Which signal type is least susceptible to electrical noise over long
distances?
A. Analog voltage
B. Thermocouple voltage
C. 4–20 mA current loop
D. Capacitive signal
Rationale: Current loops maintain constant current, making them
resistant to voltage drops and electrical interference over long cables.
