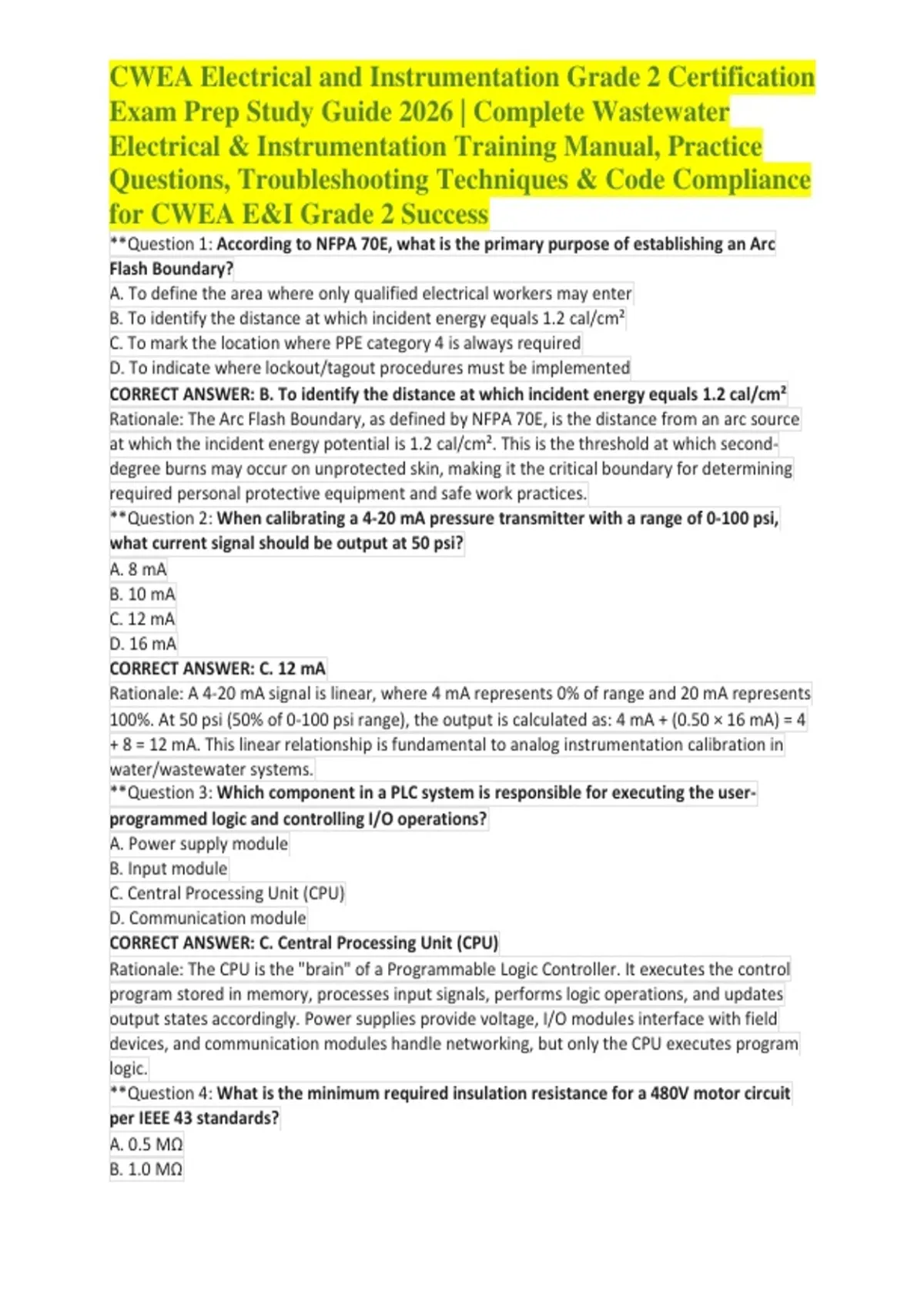

CWEA Electrical and Instrumentation Grade 2 Certification
Exam Prep Study Guide 2026 | Complete Wastewater
Electrical & Instrumentation Training Manual, Practice
Questions, Troubleshooting Techniques & Code Compliance
for CWEA E&I Grade 2 Success
**Question 1: According to NFPA 70E, what is the primary purpose of establishing an Arc
Flash Boundary?
A. To define the area where only qualified electrical workers may enter
B. To identify the distance at which incident energy equals 1.2 cal/cm²
C. To mark the location where PPE category 4 is always required
D. To indicate where lockout/tagout procedures must be implemented
CORRECT ANSWER: B. To identify the distance at which incident energy equals 1.2 cal/cm²
Rationale: The Arc Flash Boundary, as defined by NFPA 70E, is the distance from an arc source
at which the incident energy potential is 1.2 cal/cm². This is the threshold at which second-
degree burns may occur on unprotected skin, making it the critical boundary for determining
required personal protective equipment and safe work practices.
**Question 2: When calibrating a 4-20 mA pressure transmitter with a range of 0-100 psi,
what current signal should be output at 50 psi?
A. 8 mA
B. 10 mA
C. 12 mA
D. 16 mA
CORRECT ANSWER: C. 12 mA
Rationale: A 4-20 mA signal is linear, where 4 mA represents 0% of range and 20 mA represents
100%. At 50 psi (50% of 0-100 psi range), the output is calculated as: 4 mA + (0.50 × 16 mA) = 4
+ 8 = 12 mA. This linear relationship is fundamental to analog instrumentation calibration in
water/wastewater systems.
**Question 3: Which component in a PLC system is responsible for executing the user-
programmed logic and controlling I/O operations?
A. Power supply module
B. Input module
C. Central Processing Unit (CPU)
D. Communication module
CORRECT ANSWER: C. Central Processing Unit (CPU)
Rationale: The CPU is the "brain" of a Programmable Logic Controller. It executes the control
program stored in memory, processes input signals, performs logic operations, and updates
output states accordingly. Power supplies provide voltage, I/O modules interface with field
devices, and communication modules handle networking, but only the CPU executes program
logic.
**Question 4: What is the minimum required insulation resistance for a 480V motor circuit
per IEEE 43 standards?
A. 0.5 MΩ
B. 1.0 MΩ
,C. 2.0 MΩ
D. 5.0 MΩ
CORRECT ANSWER: B. 1.0 MΩ
Rationale: IEEE 43 recommends a minimum insulation resistance of 1.0 MΩ for AC and DC
machine windings rated 1000V or less. For a 480V motor circuit, this baseline ensures adequate
dielectric strength to prevent ground faults and short circuits. Higher values are preferable, but
1.0 MΩ is the accepted minimum for safe operation.
**Question 5: In a wastewater lift station, which flow measurement device is LEAST affected
by changes in fluid density or viscosity?
A. Orifice plate with differential pressure transmitter
B. Magnetic flow meter
C. Ultrasonic flow meter (transit-time)
D. Venturi meter
CORRECT ANSWER: B. Magnetic flow meter
Rationale: Magnetic flow meters operate on Faraday's Law of electromagnetic induction,
measuring flow based on voltage induced by conductive fluid moving through a magnetic field.
Since measurement depends only on fluid velocity and conductivity (not density, viscosity,
pressure, or temperature), magmeters are ideal for wastewater applications where fluid
properties vary.
**Question 6: When performing lockout/tagout (LOTO) on a motor control center, which step
must be completed BEFORE applying lockout devices?
A. Notify affected employees
B. Verify energy isolation
C. Shut down the equipment using normal stopping procedures
D. Release stored energy
CORRECT ANSWER: C. Shut down the equipment using normal stopping procedures
Rationale: Per OSHA 1910.147, the LOTO sequence requires: (1) Prepare for shutdown, (2) Shut
down equipment using normal procedures, (3) Isolate energy sources, (4) Apply lockout/tagout
devices, (5) Release stored energy, (6) Verify isolation. Shutting down equipment first prevents
damage and ensures safe isolation before locks are applied.
**Question 7: What is the primary function of a variable frequency drive (VFD) in a
wastewater pumping application?
A. To convert AC power to DC power for motor operation
B. To provide overload protection for the motor
C. To control motor speed by varying input frequency and voltage
D. To filter harmonic distortion from the power line
CORRECT ANSWER: C. To control motor speed by varying input frequency and voltage
Rationale: VFDs control AC motor speed by adjusting the frequency and voltage supplied to the
motor. In wastewater applications, this enables precise flow control, energy savings through
affinity laws, reduced mechanical stress, and process optimization—critical for pumps handling
variable influent loads.
,**Question 8: Which type of conduit is REQUIRED for electrical installations in Class I, Division
1 hazardous locations per NEC Article 501?
A. EMT (Electrical Metallic Tubing)
B. PVC conduit
C. Rigid metal conduit (RMC) or IMC
D. Flexible metal conduit
CORRECT ANSWER: C. Rigid metal conduit (RMC) or IMC
Rationale: NEC Article 501.10(A) requires threaded rigid metal conduit (RMC) or intermediate
metal conduit (IMC) for wiring in Class I, Division 1 locations where flammable gases or vapors
may be present. This ensures mechanical protection and prevents ignition sources from
contacting hazardous atmospheres—critical in wastewater digesters or pump wet wells.
**Question 9: A technician measures 24 VDC across a 250-ohm precision resistor in a 4-20 mA
loop. What is the approximate current flow?
A. 4 mA
B. 12 mA
C. 16 mA
D. 20 mA
CORRECT ANSWER: B. 12 mA
Rationale: Using Ohm's Law (I = V/R), current = 24 V / 250 Ω = 0.096 A = 96 mA. However, this
calculation is incorrect for a 4-20 mA loop. The correct approach: In a 4-20 mA loop, the voltage
drop across a 250Ω resistor at 4 mA is 1V, at 20 mA is 5V. 24V is the loop supply voltage, not
the drop. The question implies measuring voltage across the resistor: if 24V is measured across
250Ω, I = 24/250 = 96mA which is impossible for a 4-20mA loop. Re-evaluating: Standard
practice uses 250Ω to convert 4-20mA to 1-5V. If voltage across resistor is 3V (midpoint),
current = 3V/250Ω = 12mA. The question likely intends 3V measurement. Corrected rationale: If
voltage measured across 250Ω resistor is 3.0V, current = V/R = 3.0/250 = 0.012A = 12mA,
representing 50% of the 4-20mA range.
**Question 10: Which document provides the detailed wiring connections between field
instruments and control system I/O cards?
A. Process Flow Diagram (PFD)
B. Piping and Instrumentation Diagram (P&ID)
C. Loop Diagram
D. Electrical One-Line Diagram
CORRECT ANSWER: C. Loop Diagram
Rationale: Loop diagrams (or instrument loop drawings) show the complete wiring path for a
single control loop, including field instrument terminals, junction boxes, marshalling cabinets,
and control system I/O card connections. PFDs show process flow, P&IDs show instrumentation
symbols and process relationships, and one-line diagrams show power distribution—not
detailed instrument wiring.
**Question 11: What is the maximum allowable voltage drop for a 120V branch circuit per
NEC recommendations?
, A. 2%
B. 3%
C. 5%
D. 10%
CORRECT ANSWER: B. 3%
Rationale: NEC Article 215.2(A)(3) Informational Note No. 2 recommends a maximum 3%
voltage drop for branch circuits and 5% total for feeder + branch circuit. For a 120V circuit, 3%
equals 3.6V drop maximum. This ensures proper equipment operation, prevents motor
overheating, and maintains lighting performance in treatment facility applications.
**Question 12: When troubleshooting a non-functional solenoid valve in a chlorination
system, which measurement should be performed FIRST?
A. Check coil resistance with an ohmmeter
B. Verify control signal at the valve terminal
C. Inspect the valve stem for mechanical binding
D. Measure supply voltage at the valve terminals
CORRECT ANSWER: D. Measure supply voltage at the valve terminals
Rationale: Following systematic troubleshooting methodology, verify power availability first. If
no voltage is present at the valve terminals, the fault lies upstream (wiring, relay, control
signal). Only after confirming proper voltage should you check coil resistance, control signals, or
mechanical condition. This approach minimizes unnecessary disassembly and isolates faults
efficiently.
**Question 13: Which SCADA communication protocol is MOST commonly used for serial
communication between PLCs and RTUs in legacy water systems?
A. Modbus TCP
B. EtherNet/IP
C. Modbus RTU
D. PROFINET
CORRECT ANSWER: C. Modbus RTU
Rationale: Modbus RTU (Remote Terminal Unit) is a serial communication protocol using RS-
232/485 physical layers, widely deployed in legacy water/wastewater SCADA systems due to its
simplicity, reliability, and vendor neutrality. While Modbus TCP and Ethernet-based protocols
are increasingly common, Modbus RTU remains prevalent in existing installations for RTU-to-
PLC communication.
**Question 14: What is the purpose of a "fail-safe" design in a wastewater pump control
circuit?
A. To ensure the pump starts automatically after power restoration
B. To default to a safe state (e.g., pump OFF) upon control system failure
C. To prevent motor overload during high-flow conditions
D. To maintain communication with the SCADA system during faults
CORRECT ANSWER: B. To default to a safe state (e.g., pump OFF) upon control system failure
Rationale: Fail-safe design ensures that upon loss of control signal, power, or system failure,
equipment defaults to a predetermined safe condition—typically stopping pumps to prevent
