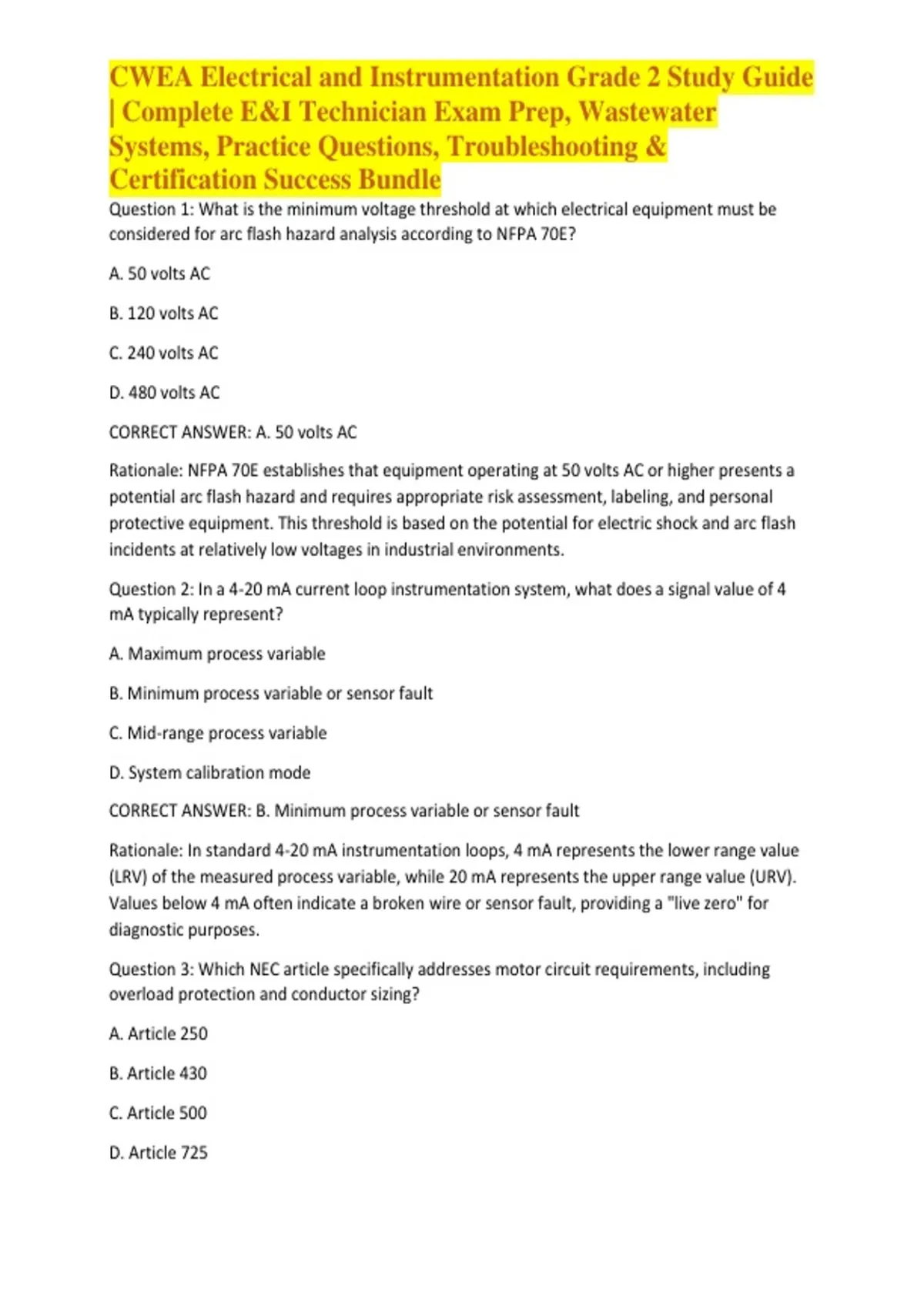

CWEA Electrical and Instrumentation Grade 2 Study Guide
| Complete E&I Technician Exam Prep, Wastewater
Systems, Practice Questions, Troubleshooting &
Certification Success Bundle
Question 1: What is the minimum voltage threshold at which electrical equipment must be
considered for arc flash hazard analysis according to NFPA 70E?
A. 50 volts AC
B. 120 volts AC
C. 240 volts AC
D. 480 volts AC
CORRECT ANSWER: A. 50 volts AC
Rationale: NFPA 70E establishes that equipment operating at 50 volts AC or higher presents a
potential arc flash hazard and requires appropriate risk assessment, labeling, and personal
protective equipment. This threshold is based on the potential for electric shock and arc flash
incidents at relatively low voltages in industrial environments.
Question 2: In a 4-20 mA current loop instrumentation system, what does a signal value of 4
mA typically represent?
A. Maximum process variable
B. Minimum process variable or sensor fault
C. Mid-range process variable
D. System calibration mode
CORRECT ANSWER: B. Minimum process variable or sensor fault
Rationale: In standard 4-20 mA instrumentation loops, 4 mA represents the lower range value
(LRV) of the measured process variable, while 20 mA represents the upper range value (URV).
Values below 4 mA often indicate a broken wire or sensor fault, providing a "live zero" for
diagnostic purposes.
Question 3: Which NEC article specifically addresses motor circuit requirements, including
overload protection and conductor sizing?
A. Article 250
B. Article 430
C. Article 500
D. Article 725
,CORRECT ANSWER: B. Article 430
Rationale: NEC Article 430 covers motors, motor circuits, and controllers, providing
requirements for motor branch circuits, feeder conductors, overload protection, short-circuit
protection, and disconnecting means. This is critical for electrical technicians working with
pump motors in water/wastewater facilities.
Question 4: When troubleshooting a three-phase motor that hums but does not start, which
condition is MOST likely the cause?
A. Overvoltage condition
B. Single-phasing (loss of one phase)
C. Excessive load torque
D. Incorrect rotation sequence
CORRECT ANSWER: B. Single-phasing (loss of one phase)
Rationale: Single-phasing occurs when one phase of a three-phase power supply is lost, causing
the motor to hum, overheat, and fail to start. This condition draws excessive current in the
remaining phases and can quickly damage motor windings if not corrected promptly.
Question 5: What is the primary purpose of a variable frequency drive (VFD) in wastewater
treatment pump applications?
A. To increase motor horsepower rating
B. To provide soft start and precise speed control for energy efficiency
C. To convert AC power to DC power only
D. To isolate the motor from electrical noise
CORRECT ANSWER: B. To provide soft start and precise speed control for energy efficiency
Rationale: VFDs control motor speed by varying the frequency and voltage supplied to the
motor, enabling soft starting to reduce mechanical stress and allowing precise flow control that
significantly improves energy efficiency in pump applications compared to throttling valves.
Question 6: Which instrument is MOST appropriate for measuring insulation resistance of
motor windings?
A. Digital multimeter
B. Clamp-on ammeter
C. Megohmmeter (megger)
,D. Oscilloscope
CORRECT ANSWER: C. Megohmmeter (megger)
Rationale: A megohmmeter applies a high DC test voltage (typically 500V or 1000V) to measure
insulation resistance in megohms, detecting moisture, contamination, or degradation in motor
windings that a standard multimeter cannot identify due to its low test voltage.
Question 7: In hazardous location classifications, what does "Class I, Division 2" indicate?
A. Flammable gases or vapors are present under normal operating conditions
B. Combustible dust is present in sufficient quantities to be ignitable
C. Flammable gases or vapors are present only under abnormal conditions
D. Ignitable fibers or flyings are present in the atmosphere
CORRECT ANSWER: C. Flammable gases or vapors are present only under abnormal conditions
Rationale: NEC Article 500 defines Class I locations as those with flammable gases or vapors.
Division 2 indicates these hazardous materials are normally confined or present only under
abnormal conditions (e.g., container failure), requiring specific equipment ratings for safe
operation.
Question 8: What is the expected resistance reading across a properly functioning 24 VDC
solenoid coil with a rated current of 0.5 A?
A. 12 ohms
B. 24 ohms
C. 48 ohms
D. 120 ohms
CORRECT ANSWER: C. 48 ohms
Rationale: Using Ohm's Law (R = V/I), resistance equals 24 volts divided by 0.5 amps, resulting in
48 ohms. This calculation helps technicians verify coil integrity during troubleshooting;
significant deviation indicates an open or shorted winding.
Question 9: Which type of level transmitter uses the principle of hydrostatic pressure to
determine liquid level in a tank?
A. Ultrasonic transmitter
B. Capacitance transmitter
C. Differential pressure transmitter
, D. Radar transmitter
CORRECT ANSWER: C. Differential pressure transmitter
Rationale: Differential pressure transmitters measure the pressure exerted by a liquid column,
which is directly proportional to liquid height (P = ρgh). This hydrostatic principle is widely used
in open and closed tank level applications in water/wastewater treatment.
Question 10: When performing lockout/tagout procedures, who is authorized to remove a
lockout device?
A. Any qualified electrical worker
B. The shift supervisor
C. Only the person who applied the device
D. The facility manager
CORRECT ANSWER: C. Only the person who applied the device
Rationale: OSHA 1910.147 and NFPA 70E require that only the individual who applied a
lockout/tagout device may remove it, ensuring personal safety accountability. Exceptions
require specific, documented procedures with equivalent safety verification.
Question 11: What is the standard signal range for pneumatic instrumentation control systems?
A. 0-10 VDC
B. 4-20 mA
C. 3-15 PSI
D. 0-100 PSI
CORRECT ANSWER: C. 3-15 PSI
Rationale: Pneumatic control systems traditionally use a 3-15 PSI signal range, where 3 PSI
represents the minimum (0%) and 15 PSI represents the maximum (100%) of the process
variable. This standard persists in some legacy water treatment facilities.
Question 12: Which motor protection device is specifically designed to protect against
prolonged overcurrent conditions that are below short-circuit levels?
A. Circuit breaker
B. Fuse
C. Thermal overload relay
D. Surge protector
| Complete E&I Technician Exam Prep, Wastewater
Systems, Practice Questions, Troubleshooting &
Certification Success Bundle
Question 1: What is the minimum voltage threshold at which electrical equipment must be
considered for arc flash hazard analysis according to NFPA 70E?
A. 50 volts AC
B. 120 volts AC
C. 240 volts AC
D. 480 volts AC
CORRECT ANSWER: A. 50 volts AC
Rationale: NFPA 70E establishes that equipment operating at 50 volts AC or higher presents a
potential arc flash hazard and requires appropriate risk assessment, labeling, and personal
protective equipment. This threshold is based on the potential for electric shock and arc flash
incidents at relatively low voltages in industrial environments.
Question 2: In a 4-20 mA current loop instrumentation system, what does a signal value of 4
mA typically represent?
A. Maximum process variable
B. Minimum process variable or sensor fault
C. Mid-range process variable
D. System calibration mode
CORRECT ANSWER: B. Minimum process variable or sensor fault
Rationale: In standard 4-20 mA instrumentation loops, 4 mA represents the lower range value
(LRV) of the measured process variable, while 20 mA represents the upper range value (URV).
Values below 4 mA often indicate a broken wire or sensor fault, providing a "live zero" for
diagnostic purposes.
Question 3: Which NEC article specifically addresses motor circuit requirements, including
overload protection and conductor sizing?
A. Article 250
B. Article 430
C. Article 500
D. Article 725
,CORRECT ANSWER: B. Article 430
Rationale: NEC Article 430 covers motors, motor circuits, and controllers, providing
requirements for motor branch circuits, feeder conductors, overload protection, short-circuit
protection, and disconnecting means. This is critical for electrical technicians working with
pump motors in water/wastewater facilities.
Question 4: When troubleshooting a three-phase motor that hums but does not start, which
condition is MOST likely the cause?
A. Overvoltage condition
B. Single-phasing (loss of one phase)
C. Excessive load torque
D. Incorrect rotation sequence
CORRECT ANSWER: B. Single-phasing (loss of one phase)
Rationale: Single-phasing occurs when one phase of a three-phase power supply is lost, causing
the motor to hum, overheat, and fail to start. This condition draws excessive current in the
remaining phases and can quickly damage motor windings if not corrected promptly.
Question 5: What is the primary purpose of a variable frequency drive (VFD) in wastewater
treatment pump applications?
A. To increase motor horsepower rating
B. To provide soft start and precise speed control for energy efficiency
C. To convert AC power to DC power only
D. To isolate the motor from electrical noise
CORRECT ANSWER: B. To provide soft start and precise speed control for energy efficiency
Rationale: VFDs control motor speed by varying the frequency and voltage supplied to the
motor, enabling soft starting to reduce mechanical stress and allowing precise flow control that
significantly improves energy efficiency in pump applications compared to throttling valves.
Question 6: Which instrument is MOST appropriate for measuring insulation resistance of
motor windings?
A. Digital multimeter
B. Clamp-on ammeter
C. Megohmmeter (megger)
,D. Oscilloscope
CORRECT ANSWER: C. Megohmmeter (megger)
Rationale: A megohmmeter applies a high DC test voltage (typically 500V or 1000V) to measure
insulation resistance in megohms, detecting moisture, contamination, or degradation in motor
windings that a standard multimeter cannot identify due to its low test voltage.
Question 7: In hazardous location classifications, what does "Class I, Division 2" indicate?
A. Flammable gases or vapors are present under normal operating conditions
B. Combustible dust is present in sufficient quantities to be ignitable
C. Flammable gases or vapors are present only under abnormal conditions
D. Ignitable fibers or flyings are present in the atmosphere
CORRECT ANSWER: C. Flammable gases or vapors are present only under abnormal conditions
Rationale: NEC Article 500 defines Class I locations as those with flammable gases or vapors.
Division 2 indicates these hazardous materials are normally confined or present only under
abnormal conditions (e.g., container failure), requiring specific equipment ratings for safe
operation.
Question 8: What is the expected resistance reading across a properly functioning 24 VDC
solenoid coil with a rated current of 0.5 A?
A. 12 ohms
B. 24 ohms
C. 48 ohms
D. 120 ohms
CORRECT ANSWER: C. 48 ohms
Rationale: Using Ohm's Law (R = V/I), resistance equals 24 volts divided by 0.5 amps, resulting in
48 ohms. This calculation helps technicians verify coil integrity during troubleshooting;
significant deviation indicates an open or shorted winding.
Question 9: Which type of level transmitter uses the principle of hydrostatic pressure to
determine liquid level in a tank?
A. Ultrasonic transmitter
B. Capacitance transmitter
C. Differential pressure transmitter
, D. Radar transmitter
CORRECT ANSWER: C. Differential pressure transmitter
Rationale: Differential pressure transmitters measure the pressure exerted by a liquid column,
which is directly proportional to liquid height (P = ρgh). This hydrostatic principle is widely used
in open and closed tank level applications in water/wastewater treatment.
Question 10: When performing lockout/tagout procedures, who is authorized to remove a
lockout device?
A. Any qualified electrical worker
B. The shift supervisor
C. Only the person who applied the device
D. The facility manager
CORRECT ANSWER: C. Only the person who applied the device
Rationale: OSHA 1910.147 and NFPA 70E require that only the individual who applied a
lockout/tagout device may remove it, ensuring personal safety accountability. Exceptions
require specific, documented procedures with equivalent safety verification.
Question 11: What is the standard signal range for pneumatic instrumentation control systems?
A. 0-10 VDC
B. 4-20 mA
C. 3-15 PSI
D. 0-100 PSI
CORRECT ANSWER: C. 3-15 PSI
Rationale: Pneumatic control systems traditionally use a 3-15 PSI signal range, where 3 PSI
represents the minimum (0%) and 15 PSI represents the maximum (100%) of the process
variable. This standard persists in some legacy water treatment facilities.
Question 12: Which motor protection device is specifically designed to protect against
prolonged overcurrent conditions that are below short-circuit levels?
A. Circuit breaker
B. Fuse
C. Thermal overload relay
D. Surge protector
