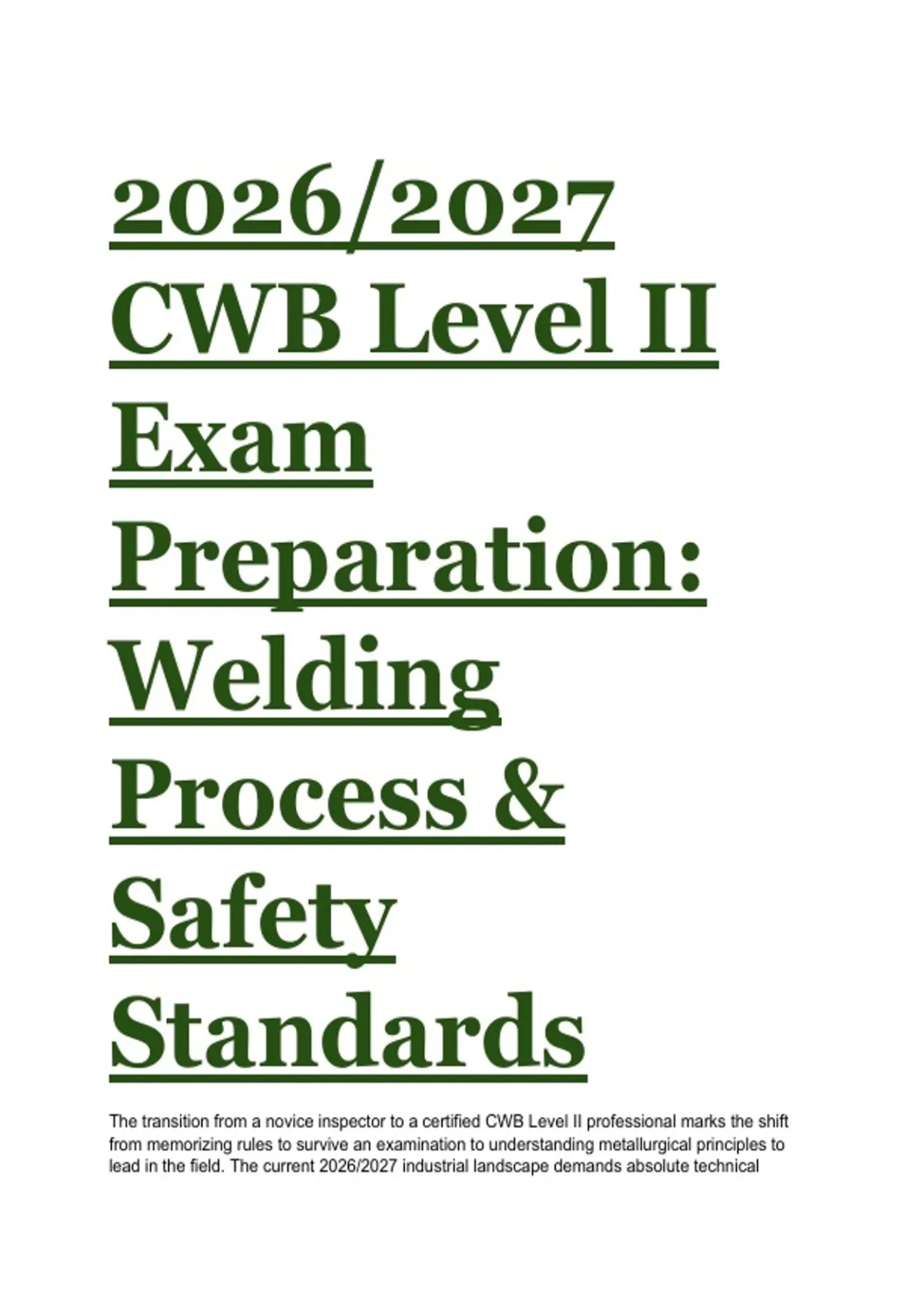

2026/2027
CWB Level II
Exam
Preparation:
Welding
Process &
Safety
Standards
The transition from a novice inspector to a certified CWB Level II professional marks the shift
from memorizing rules to survive an examination to understanding metallurgical principles to
lead in the field. The current 2026/2027 industrial landscape demands absolute technical
,precision. Modern welding inspection is no longer limited to flashlights and fillet gauges; the
industry now operates alongside Artificial Intelligence-driven Automated Defect Recognition
(ADR), Encoded Phased Array Ultrasonic Testing (PAUT), and rigorous new metallurgical
thresholds. A Level II Inspector must be fully autonomous, capable of identifying microscopic
flaws and understanding the catastrophic chain reactions those flaws can trigger within a
structure.
This document is engineered for heavy utility. It systematically dismantles the intimidation factor
surrounding advanced metallurgy, complex safety codes, and modern non-destructive testing.
By internalizing the principles outlined in this master architecture, the candidate will not merely
pass the rigorous CSA W178.2 examinations; the candidate will command the subject matter
entirely, ensuring safety, structural integrity, and professional excellence in the field.
The "De-Mystifier" Table
The Scary Academic Word The "Pub Explanation" (Plain The "Expensive Mistake"
English) (Real-World Consequence)
Sigma Phase Embrittlement Stainless steel turning into A high-pressure refinery pipe
brittle glass because it sat in a shatters like a dinner plate
hot temperature zone during shutdown, costing
(540°C–925°C) for too long. millions in downtime and risking
lives.
Encoded Phased Array UT A medical ultrasound for metal Relying on an outdated
(PAUT) that records a continuous, single-probe method, missing a
permanent digital video of the critical lack-of-fusion defect,
inside of a weld using multiple and passing a bridge girder that
sound angles. later collapses.
IARC Group 1 Carcinogen A global scientific classification Treating fume extractors as
meaning the welding smoke "optional," leading to fatal
definitively causes human occupational lung or kidney
cancer, with zero room for cancer and exposing the
debate. corporation to massive legal
liability.
Lamellar Tearing Steel plate peeling apart on the Entire structural T-joints ripping
inside like layers of cheap, out from the inside under heavy
water-damaged plywood due to load, requiring the complete
severe shrinkage stress during scrapping and costly
cooling. re-fabrication of the assembly.
Autogenous Weld Melting two pieces of metal Attempting this on a joint with a
together using only their own wide gap, resulting in a
material, without adding any concave, severely weakened
extra filler wire from a rod or connection that snaps
spool. immediately under operating
pressure.
PART II: THE CORE MODULES (The Knowledge)
Module 1: Physical Metallurgy and the Heat Trap
,The Analogy: Consider steel like a complex baked good. If it cools too fast, it becomes
excessively hard and cracks (like a burnt, brittle crust). If certain ingredients are left in the heat
for too long, they chemically alter and turn toxic to the structure's overall integrity.
The Hard Deck: Metallurgy dictates how metals behave during the violent heating and cooling
cycles of welding. The Heat-Affected Zone (HAZ) is the area of base metal that was not melted
but had its mechanical properties permanently altered by the intense heat of the arc. When
dealing with austenitic and duplex stainless steels, inspectors must aggressively monitor for
Sigma Phase Embrittlement. This phenomenon occurs when the metal is exposed to
temperatures between 540°C and 925°C (1000°F–1700°F). The prolonged heat causes a
chromium-rich intermetallic phase to precipitate at the grain boundaries. This microscopic
change strips the surrounding metal of its chromium, destroying its corrosion resistance and
completely eliminating its fracture toughness (its ability to absorb energy without breaking),
making it highly susceptible to catastrophic cracking.
Metallurgical Term Plain English Definition Primary Danger
Martensite A highly brittle, severely Induces immediate cold
hardened crystalline structure cracking in the HAZ.
in steel formed by rapid cooling.
Austenite A non-magnetic solid solution Susceptible to hot cracking and
of carbon in iron, common in Sigma Phase precipitation.
300-series stainless steels.
Ferrite A magnetic, relatively soft In duplex stainless steels,
phase of iron. excessive ferrite transforms
rapidly into the brittle Sigma
Phase.
The 2026/2027 Redline: Under the recent CSA W59 2024 updates, strict Boron Limitations
have been placed on weldable structural steels. Boron is frequently added by overseas
manufacturers to artificially increase the hardenability of cheap steel. However, in welding
applications, a boron content exceeding 0.0008% drastically increases the extreme hardness of
the HAZ, leading to severe cold cracking. For primary structural bridge components, any
material exceeding this micro-limit must be outright rejected; no engineering variances are
permitted in the current era.
The "Trap" Alert: Examiners love to trick the candidate by asking if Sigma Phase
Embrittlement causes immediate cracking while the metal is operating at a scorching 1200°F.
The real answer is that the metal can actually withstand significant operating stresses while hot;
however, it loses all fracture toughness and shatters like glass only upon cooling down below
260°C (500°F) during a shutdown or pressure test.
Module 2: Advanced Welding Processes and Consumables
The Analogy: Selecting a welding process is comparable to choosing between a sniper rifle
and a shotgun. Gas Tungsten Arc Welding (GTAW) is the sniper rifle—slow, surgical, and
meticulously clean. Submerged Arc Welding (SAW) is the shotgun—massive material
deposition, high heat, and completely buried under a heavy layer of flux.
The Hard Deck: The SMAW (Shielded Metal Arc Welding) electrode classification system
serves as the foundational language of the trade. In the standard designation E7018:
● E stands for Electrode (a component that conducts current and melts to provide filler
metal).
, ● 70 indicates a minimum tensile strength of 70,000 psi (pounds per square inch).
● 1 designates it for all welding positions (flat, horizontal, vertical, and overhead).
● 8 dictates a low-hydrogen potassium, iron powder flux coating suitable for AC (Alternating
Current) or DCEP (Direct Current Electrode Positive). A true Consumable is defined
strictly as an electrode or wire that actively melts and provides physical filler metal to the
joint.
Process Acronym Full Name Operational Arc Efficiency
Characteristic
GTAW Gas Tungsten Arc Uses a 20-45% (Lowest)
Welding non-consumable
tungsten electrode;
surgical precision.
SMAW Shielded Metal Arc Uses a flux-coated 65-85%
Welding consumable stick;
highly versatile.
GMAW Gas Metal Arc Welding Uses a continuous solid 65-85%
wire and external
shielding gas.
SAW Submerged Arc Uses a continuous wire 90-95% (Highest)
Welding buried under granular
flux; extreme
deposition.
The 2026/2027 Redline: The CSA W59 2024 edition has introduced new, aggressive
allowances and guidance for parallel electrodes (twin-wire) configurations. This regulatory
update applies heavily to SAW, FCAW (Flux-Cored Arc Welding), and GMAW processes, safely
permitting much higher deposition rates in prequalified joint configurations to meet modern
manufacturing demands.
The "Trap" Alert: Examiners love to trick the candidate by presenting a radiograph of a GMAW
weld featuring a dense, irregular white spot, asking for the defect's origin. The real answer is
that this is a classic misdirection. An irregular white spot indicates a tungsten inclusion (a piece
of the non-melting electrode breaking off), which is physically impossible in GMAW. It is
exclusively a defect generated by the GTAW process.
Module 3: Non-Destructive Testing (NDT) & Quality Control
The Analogy: NDT functions identically to performing a medical diagnostic checkup on a steel
structure. Magnetic Particle Testing (MT) acts as the dermatologist, examining the surface and
immediate sub-surface for anomalies, while Ultrasonic Testing (UT) acts as the MRI,
transmitting sound waves to scan deep inside the solid tissue of the metal.
The Hard Deck: Visual Testing (VT) remains the uncompromising first line of defense. Under
the CWB W178.2 Generic Welding Standard (GWS), the acceptance criteria are absolute: Zero
surface cracks are permitted under any circumstance. Porosity (trapped gas pockets) cannot
exceed 1 mm in diameter or length. Undercut (the melting away of the base metal at the weld
toe) must not exceed 2 mm in depth, and butt joint weld reinforcement (the excess metal
sitting above the flush line of the plate) must not exceed 2 mm. For deep internal flaws, UT
measures the Signal Amplitude (the height of the sound wave bouncing back) of reflected
high-frequency sound waves to accept or reject hidden discontinuities.
,The 2026/2027 Redline: Two major technological leaps define the current standard. First, CSA
W59 2024 officially recognizes and regulates Encoded Phased Array UT (PAUT), a system
that sweeps multiple sound angles simultaneously to create a permanent medical-grade image
of the weld. Second, AI-driven Automated Defect Recognition (ADR) is now actively deployed
to review digital radiographs, boasting a 90–95% accuracy rate for detecting lack of fusion and
porosity. Furthermore, CWB practical examinations are now offered remotely via ProctorU
utilizing a highly advanced 3D weld inspection simulator.
The "Trap" Alert: Examiners love to trick the candidate during the 3D simulated practical
examination by intentionally placing a visible "wood grain" texture or horizontal printing line on
the test sample. The real answer is that these are known 3D printing artifacts and must be
entirely disregarded by the inspector; they do not represent actual base metal discontinuities
and penalize candidates who flag them.
Module 4: Codes, Standards, and Blueprints
The Analogy: The blueprint serves as the destination map, the Welding Procedure
Specification (WPS) serves as the strict recipe to get there, and the Code serves as the
absolute law governing the entire journey.
The Hard Deck: Welding symbols convey precise instructions to the fabricator without requiring
paragraphs of text. The horizontal Reference Line is the core of the symbol. If a weld symbol
(such as a triangle denoting a fillet weld) is placed below the reference line, the weld is
physically executed on the Arrow Side of the joint. If it is placed above the line, it must be
executed on the Other Side (the opposite side of where the arrow points). In Canada, structural
steel is governed by two interconnected pillars: CSA W47.1 covers the mandatory certification
of the companies and personnel (ensuring engineers, supervisors, and welders are legally
qualified), while CSA W59 dictates the actual engineering design and physical execution of the
welds.
Standard Code Primary Function / Scope
CSA W47.1 Certification of companies for the fusion
welding of steel.
CSA W59 Design, execution, and inspection requirements
for welded steel construction.
CSA W178.2 Certification requirements for visual welding
inspectors.
ASME B31.3 Code requirements for process piping
(chemical plants, refineries).
The 2026/2027 Redline: The 2024 update to CSA W59 introduced critical new design
requirements for welds in Hollow Structural Sections (HSS) to address their massive increase
in modern architectural and structural applications. It also heavily updated the measurement
and design requirements for Skewed Joint Welds (joints meeting at acute or obtuse angles)
and formally recognized standard Cast Steels.
The "Trap" Alert: Examiners love to trick the candidate by asking if an AWS CWI (American
Welding Society Certified Welding Inspector) can automatically step onto a site and inspect
Canadian structural steel. The real answer is no. While reciprocity agreements exist, an AWS
CWI must possess two years of experience and pass specific CWB bridging examinations
(including Canadian code specifics and practicals) to legally earn the CSA W178.2 Level II
,endorsement.
Module 5: Occupational Health, Fumes, and Safety
The Analogy: Executing a welding operation without active local exhaust ventilation is directly
comparable to locking oneself in a small garage with a running car engine. The cellular damage
is entirely invisible until it reaches an irreversible, critical mass.
The Hard Deck: Welding fumes are not merely smoke; they contain microscopic solid
particles—metal oxides, fluorides, and silicates—that bypass the body's natural defenses and
deposit permanently in the gas-exchange region of the lungs. Hexavalent Chromium (Cr(VI)),
generated heavily when welding stainless steel or chromium-alloyed metals, is highly toxic and
causes lung cancer, nasal ulcers, and severe kidney damage. The OSHA Permissible Exposure
Limit (PEL) for Cr(VI) is a microscopic 5 µg/m3 averaged over an 8-hour shift. Welding
galvanized steel (zinc-coated) vaporizes the zinc, causing an acute, debilitating illness known as
Metal Fume Fever.
The 2026/2027 Redline: The global landscape shifted when the International Agency for
Research on Cancer (IARC) formally reclassified all welding fumes (including basic mild steel)
and ultraviolet (UV) radiation from welding as absolute Group 1 Carcinogens (known to be
carcinogenic to humans). This has drastically changed corporate liability parameters; relying
solely on natural ventilation or open doors is no longer legally acceptable. Active Local Exhaust
Ventilation (LEV) is now mandatory to capture and scrub fumes precisely at the source.
The "Trap" Alert: Examiners love to trick the candidate by asking if an N95 dust mask is
sufficient personal protective equipment for a welder cutting stainless steel inside a confined
storage tank. The real answer is absolutely not. Confined spaces require robust mechanical
ventilation, and if hazardous gases are present or oxygen is being depleted by heavy shielding
gases (such as argon), positive-pressure supplied-air respirators are legally required to prevent
asphyxiation.
PART III: THE 55-POINT GAUNTLET (The Assessment)
Tier 1: Foundation (Questions 1-15)
Q1: What is the maximum allowable depth of undercut permitted under the CSA W178.2
Generic Welding Standard (GWS)? The Answer: 2 mm. The Professional Insight: Undercut
(a groove melted into the base metal adjacent to the weld toe) creates a sharp mechanical
notch that acts as a severe stress concentrator. Exceeding 2 mm fundamentally compromises
the structural integrity of the joint, guaranteeing premature fatigue failure under cyclic loading.
Q2: When measuring the dimensional size of a concave fillet weld, which specific side of the
fillet weld gauge must be utilized by the inspector? The Answer: The throat side. The
Professional Insight: A concave fillet weld's true load-bearing strength is determined
exclusively by its effective throat (the shortest distance from the root to the face). Measuring the
leg length of a concave weld will dangerously overestimate its strength, leading to the approval
of an undersized, weak joint.
Q3: What is the minimum passing grade required for each individual module of the CSA W178.2
Level II examination? The Answer: 70%. The Professional Insight: The certification demands
absolute, unwavering technical competence. Candidates must achieve exactly 70% or higher in
all four modules (Basic Materials, Standard/Code, CSA W178.2, and Practical) in a single
, sitting. This proves they possess the requisite knowledge to operate independently without
constant Level III oversight.
Q4: What specific scientific classification has the International Agency for Research on Cancer
(IARC) recently assigned to mild steel welding fumes? The Answer: Group 1 Carcinogen. The
Professional Insight: The industry historically treated mild steel fumes as a mere nuisance
dust. The Group 1 classification confirms there is sufficient, undeniable evidence that inhaling
any welding fume causes lung cancer and potentially kidney cancer, mandating strict Local
Exhaust Ventilation (LEV) protocols across all fabrication shops.
Q5: In the standard SMAW electrode designation E4918, what does the numerical "1" explicitly
indicate? The Answer: The electrode is qualified for all welding positions (flat, horizontal,
vertical, and overhead). The Professional Insight: Selecting the correct position designator is
critical for the welder. An all-position electrode utilizes a fast-freezing slag that ensures the
molten puddle will solidify rapidly enough to prevent gravity from pulling it out of the joint when
welding vertically or overhead.
Q6: What type of destructive mechanical test requires the use of an impact test specimen to
determine a material's resistance to sudden brittle fracture? The Answer: The Charpy V-Notch
(Notched bar impact) test. The Professional Insight: This destructive test features a swinging
pendulum that strikes a notched sample to measure the exact amount of kinetic energy
absorbed during fracture. It is a critical requirement for structures operating in freezing
environments (like Arctic pipelines) to ensure the steel yields elastically rather than shattering
like glass.
Q7: Under the practical examination's Generic Welding Standard (GWS), what is the maximum
allowable diameter or length for a single pore of visible surface porosity? The Answer: 1 mm.
The Professional Insight: Porosity represents trapped atmospheric gas within the solidifying
metal. While a single microscopic pore might not collapse a massive building, any pore
exceeding 1 mm indicates a fundamental failure in the shielding gas coverage or heavy base
metal contamination (oil, rust, paint) that must be rectified immediately.
Q8: What highly efficient welding process establishes an arc between a continuously fed
consumable wire and the workpiece while operating entirely under a granular flux blanket? The
Answer: Submerged Arc Welding (SAW). The Professional Insight: SAW serves as the
heavy-industry workhorse for thick-plate fabrication. The flux blanket completely suppresses
sparks, spatter, and harmful UV radiation while allowing for massive electrical heat input and
extreme deposition rates, making it the most arc-efficient process available (90-95%).
Q9: What is the metallurgical and visual difference between a transverse crack and a
longitudinal crack? The Answer: A transverse crack runs perpendicular to the longitudinal axis
of the weld, while a longitudinal crack runs parallel to the axis of the weld. The Professional
Insight: Transverse cracks are typically driven by severe longitudinal shrinkage stresses acting
on a highly brittle weld metal structure. This defect frequently indicates a severe mismatch
between the filler metal's properties and the base material's cooling characteristics.
Q10: Which specific Canadian Standard dictates the administrative and technical certification
requirements for companies involved in the fusion welding of steel? The Answer: CSA W47.1.
The Professional Insight: CSA W47.1 ensures the fabricating company possesses the
necessary human infrastructure—specifically qualified Welding Engineers, Welding Supervisors,
and continuously tested welders—before a single arc is struck on a project. It serves as the
administrative backbone of Canadian steel fabrication.
Q11: What happens to the electrical arc voltage when the physical arc length is manually
increased by the welder during an operation? The Answer: The arc voltage increases. The
Professional Insight: Arc length and voltage share a direct, proportional relationship. Pulling
CWB Level II
Exam
Preparation:
Welding
Process &
Safety
Standards
The transition from a novice inspector to a certified CWB Level II professional marks the shift
from memorizing rules to survive an examination to understanding metallurgical principles to
lead in the field. The current 2026/2027 industrial landscape demands absolute technical
,precision. Modern welding inspection is no longer limited to flashlights and fillet gauges; the
industry now operates alongside Artificial Intelligence-driven Automated Defect Recognition
(ADR), Encoded Phased Array Ultrasonic Testing (PAUT), and rigorous new metallurgical
thresholds. A Level II Inspector must be fully autonomous, capable of identifying microscopic
flaws and understanding the catastrophic chain reactions those flaws can trigger within a
structure.
This document is engineered for heavy utility. It systematically dismantles the intimidation factor
surrounding advanced metallurgy, complex safety codes, and modern non-destructive testing.
By internalizing the principles outlined in this master architecture, the candidate will not merely
pass the rigorous CSA W178.2 examinations; the candidate will command the subject matter
entirely, ensuring safety, structural integrity, and professional excellence in the field.
The "De-Mystifier" Table
The Scary Academic Word The "Pub Explanation" (Plain The "Expensive Mistake"
English) (Real-World Consequence)
Sigma Phase Embrittlement Stainless steel turning into A high-pressure refinery pipe
brittle glass because it sat in a shatters like a dinner plate
hot temperature zone during shutdown, costing
(540°C–925°C) for too long. millions in downtime and risking
lives.
Encoded Phased Array UT A medical ultrasound for metal Relying on an outdated
(PAUT) that records a continuous, single-probe method, missing a
permanent digital video of the critical lack-of-fusion defect,
inside of a weld using multiple and passing a bridge girder that
sound angles. later collapses.
IARC Group 1 Carcinogen A global scientific classification Treating fume extractors as
meaning the welding smoke "optional," leading to fatal
definitively causes human occupational lung or kidney
cancer, with zero room for cancer and exposing the
debate. corporation to massive legal
liability.
Lamellar Tearing Steel plate peeling apart on the Entire structural T-joints ripping
inside like layers of cheap, out from the inside under heavy
water-damaged plywood due to load, requiring the complete
severe shrinkage stress during scrapping and costly
cooling. re-fabrication of the assembly.
Autogenous Weld Melting two pieces of metal Attempting this on a joint with a
together using only their own wide gap, resulting in a
material, without adding any concave, severely weakened
extra filler wire from a rod or connection that snaps
spool. immediately under operating
pressure.
PART II: THE CORE MODULES (The Knowledge)
Module 1: Physical Metallurgy and the Heat Trap
,The Analogy: Consider steel like a complex baked good. If it cools too fast, it becomes
excessively hard and cracks (like a burnt, brittle crust). If certain ingredients are left in the heat
for too long, they chemically alter and turn toxic to the structure's overall integrity.
The Hard Deck: Metallurgy dictates how metals behave during the violent heating and cooling
cycles of welding. The Heat-Affected Zone (HAZ) is the area of base metal that was not melted
but had its mechanical properties permanently altered by the intense heat of the arc. When
dealing with austenitic and duplex stainless steels, inspectors must aggressively monitor for
Sigma Phase Embrittlement. This phenomenon occurs when the metal is exposed to
temperatures between 540°C and 925°C (1000°F–1700°F). The prolonged heat causes a
chromium-rich intermetallic phase to precipitate at the grain boundaries. This microscopic
change strips the surrounding metal of its chromium, destroying its corrosion resistance and
completely eliminating its fracture toughness (its ability to absorb energy without breaking),
making it highly susceptible to catastrophic cracking.
Metallurgical Term Plain English Definition Primary Danger
Martensite A highly brittle, severely Induces immediate cold
hardened crystalline structure cracking in the HAZ.
in steel formed by rapid cooling.
Austenite A non-magnetic solid solution Susceptible to hot cracking and
of carbon in iron, common in Sigma Phase precipitation.
300-series stainless steels.
Ferrite A magnetic, relatively soft In duplex stainless steels,
phase of iron. excessive ferrite transforms
rapidly into the brittle Sigma
Phase.
The 2026/2027 Redline: Under the recent CSA W59 2024 updates, strict Boron Limitations
have been placed on weldable structural steels. Boron is frequently added by overseas
manufacturers to artificially increase the hardenability of cheap steel. However, in welding
applications, a boron content exceeding 0.0008% drastically increases the extreme hardness of
the HAZ, leading to severe cold cracking. For primary structural bridge components, any
material exceeding this micro-limit must be outright rejected; no engineering variances are
permitted in the current era.
The "Trap" Alert: Examiners love to trick the candidate by asking if Sigma Phase
Embrittlement causes immediate cracking while the metal is operating at a scorching 1200°F.
The real answer is that the metal can actually withstand significant operating stresses while hot;
however, it loses all fracture toughness and shatters like glass only upon cooling down below
260°C (500°F) during a shutdown or pressure test.
Module 2: Advanced Welding Processes and Consumables
The Analogy: Selecting a welding process is comparable to choosing between a sniper rifle
and a shotgun. Gas Tungsten Arc Welding (GTAW) is the sniper rifle—slow, surgical, and
meticulously clean. Submerged Arc Welding (SAW) is the shotgun—massive material
deposition, high heat, and completely buried under a heavy layer of flux.
The Hard Deck: The SMAW (Shielded Metal Arc Welding) electrode classification system
serves as the foundational language of the trade. In the standard designation E7018:
● E stands for Electrode (a component that conducts current and melts to provide filler
metal).
, ● 70 indicates a minimum tensile strength of 70,000 psi (pounds per square inch).
● 1 designates it for all welding positions (flat, horizontal, vertical, and overhead).
● 8 dictates a low-hydrogen potassium, iron powder flux coating suitable for AC (Alternating
Current) or DCEP (Direct Current Electrode Positive). A true Consumable is defined
strictly as an electrode or wire that actively melts and provides physical filler metal to the
joint.
Process Acronym Full Name Operational Arc Efficiency
Characteristic
GTAW Gas Tungsten Arc Uses a 20-45% (Lowest)
Welding non-consumable
tungsten electrode;
surgical precision.
SMAW Shielded Metal Arc Uses a flux-coated 65-85%
Welding consumable stick;
highly versatile.
GMAW Gas Metal Arc Welding Uses a continuous solid 65-85%
wire and external
shielding gas.
SAW Submerged Arc Uses a continuous wire 90-95% (Highest)
Welding buried under granular
flux; extreme
deposition.
The 2026/2027 Redline: The CSA W59 2024 edition has introduced new, aggressive
allowances and guidance for parallel electrodes (twin-wire) configurations. This regulatory
update applies heavily to SAW, FCAW (Flux-Cored Arc Welding), and GMAW processes, safely
permitting much higher deposition rates in prequalified joint configurations to meet modern
manufacturing demands.
The "Trap" Alert: Examiners love to trick the candidate by presenting a radiograph of a GMAW
weld featuring a dense, irregular white spot, asking for the defect's origin. The real answer is
that this is a classic misdirection. An irregular white spot indicates a tungsten inclusion (a piece
of the non-melting electrode breaking off), which is physically impossible in GMAW. It is
exclusively a defect generated by the GTAW process.
Module 3: Non-Destructive Testing (NDT) & Quality Control
The Analogy: NDT functions identically to performing a medical diagnostic checkup on a steel
structure. Magnetic Particle Testing (MT) acts as the dermatologist, examining the surface and
immediate sub-surface for anomalies, while Ultrasonic Testing (UT) acts as the MRI,
transmitting sound waves to scan deep inside the solid tissue of the metal.
The Hard Deck: Visual Testing (VT) remains the uncompromising first line of defense. Under
the CWB W178.2 Generic Welding Standard (GWS), the acceptance criteria are absolute: Zero
surface cracks are permitted under any circumstance. Porosity (trapped gas pockets) cannot
exceed 1 mm in diameter or length. Undercut (the melting away of the base metal at the weld
toe) must not exceed 2 mm in depth, and butt joint weld reinforcement (the excess metal
sitting above the flush line of the plate) must not exceed 2 mm. For deep internal flaws, UT
measures the Signal Amplitude (the height of the sound wave bouncing back) of reflected
high-frequency sound waves to accept or reject hidden discontinuities.
,The 2026/2027 Redline: Two major technological leaps define the current standard. First, CSA
W59 2024 officially recognizes and regulates Encoded Phased Array UT (PAUT), a system
that sweeps multiple sound angles simultaneously to create a permanent medical-grade image
of the weld. Second, AI-driven Automated Defect Recognition (ADR) is now actively deployed
to review digital radiographs, boasting a 90–95% accuracy rate for detecting lack of fusion and
porosity. Furthermore, CWB practical examinations are now offered remotely via ProctorU
utilizing a highly advanced 3D weld inspection simulator.
The "Trap" Alert: Examiners love to trick the candidate during the 3D simulated practical
examination by intentionally placing a visible "wood grain" texture or horizontal printing line on
the test sample. The real answer is that these are known 3D printing artifacts and must be
entirely disregarded by the inspector; they do not represent actual base metal discontinuities
and penalize candidates who flag them.
Module 4: Codes, Standards, and Blueprints
The Analogy: The blueprint serves as the destination map, the Welding Procedure
Specification (WPS) serves as the strict recipe to get there, and the Code serves as the
absolute law governing the entire journey.
The Hard Deck: Welding symbols convey precise instructions to the fabricator without requiring
paragraphs of text. The horizontal Reference Line is the core of the symbol. If a weld symbol
(such as a triangle denoting a fillet weld) is placed below the reference line, the weld is
physically executed on the Arrow Side of the joint. If it is placed above the line, it must be
executed on the Other Side (the opposite side of where the arrow points). In Canada, structural
steel is governed by two interconnected pillars: CSA W47.1 covers the mandatory certification
of the companies and personnel (ensuring engineers, supervisors, and welders are legally
qualified), while CSA W59 dictates the actual engineering design and physical execution of the
welds.
Standard Code Primary Function / Scope
CSA W47.1 Certification of companies for the fusion
welding of steel.
CSA W59 Design, execution, and inspection requirements
for welded steel construction.
CSA W178.2 Certification requirements for visual welding
inspectors.
ASME B31.3 Code requirements for process piping
(chemical plants, refineries).
The 2026/2027 Redline: The 2024 update to CSA W59 introduced critical new design
requirements for welds in Hollow Structural Sections (HSS) to address their massive increase
in modern architectural and structural applications. It also heavily updated the measurement
and design requirements for Skewed Joint Welds (joints meeting at acute or obtuse angles)
and formally recognized standard Cast Steels.
The "Trap" Alert: Examiners love to trick the candidate by asking if an AWS CWI (American
Welding Society Certified Welding Inspector) can automatically step onto a site and inspect
Canadian structural steel. The real answer is no. While reciprocity agreements exist, an AWS
CWI must possess two years of experience and pass specific CWB bridging examinations
(including Canadian code specifics and practicals) to legally earn the CSA W178.2 Level II
,endorsement.
Module 5: Occupational Health, Fumes, and Safety
The Analogy: Executing a welding operation without active local exhaust ventilation is directly
comparable to locking oneself in a small garage with a running car engine. The cellular damage
is entirely invisible until it reaches an irreversible, critical mass.
The Hard Deck: Welding fumes are not merely smoke; they contain microscopic solid
particles—metal oxides, fluorides, and silicates—that bypass the body's natural defenses and
deposit permanently in the gas-exchange region of the lungs. Hexavalent Chromium (Cr(VI)),
generated heavily when welding stainless steel or chromium-alloyed metals, is highly toxic and
causes lung cancer, nasal ulcers, and severe kidney damage. The OSHA Permissible Exposure
Limit (PEL) for Cr(VI) is a microscopic 5 µg/m3 averaged over an 8-hour shift. Welding
galvanized steel (zinc-coated) vaporizes the zinc, causing an acute, debilitating illness known as
Metal Fume Fever.
The 2026/2027 Redline: The global landscape shifted when the International Agency for
Research on Cancer (IARC) formally reclassified all welding fumes (including basic mild steel)
and ultraviolet (UV) radiation from welding as absolute Group 1 Carcinogens (known to be
carcinogenic to humans). This has drastically changed corporate liability parameters; relying
solely on natural ventilation or open doors is no longer legally acceptable. Active Local Exhaust
Ventilation (LEV) is now mandatory to capture and scrub fumes precisely at the source.
The "Trap" Alert: Examiners love to trick the candidate by asking if an N95 dust mask is
sufficient personal protective equipment for a welder cutting stainless steel inside a confined
storage tank. The real answer is absolutely not. Confined spaces require robust mechanical
ventilation, and if hazardous gases are present or oxygen is being depleted by heavy shielding
gases (such as argon), positive-pressure supplied-air respirators are legally required to prevent
asphyxiation.
PART III: THE 55-POINT GAUNTLET (The Assessment)
Tier 1: Foundation (Questions 1-15)
Q1: What is the maximum allowable depth of undercut permitted under the CSA W178.2
Generic Welding Standard (GWS)? The Answer: 2 mm. The Professional Insight: Undercut
(a groove melted into the base metal adjacent to the weld toe) creates a sharp mechanical
notch that acts as a severe stress concentrator. Exceeding 2 mm fundamentally compromises
the structural integrity of the joint, guaranteeing premature fatigue failure under cyclic loading.
Q2: When measuring the dimensional size of a concave fillet weld, which specific side of the
fillet weld gauge must be utilized by the inspector? The Answer: The throat side. The
Professional Insight: A concave fillet weld's true load-bearing strength is determined
exclusively by its effective throat (the shortest distance from the root to the face). Measuring the
leg length of a concave weld will dangerously overestimate its strength, leading to the approval
of an undersized, weak joint.
Q3: What is the minimum passing grade required for each individual module of the CSA W178.2
Level II examination? The Answer: 70%. The Professional Insight: The certification demands
absolute, unwavering technical competence. Candidates must achieve exactly 70% or higher in
all four modules (Basic Materials, Standard/Code, CSA W178.2, and Practical) in a single
, sitting. This proves they possess the requisite knowledge to operate independently without
constant Level III oversight.
Q4: What specific scientific classification has the International Agency for Research on Cancer
(IARC) recently assigned to mild steel welding fumes? The Answer: Group 1 Carcinogen. The
Professional Insight: The industry historically treated mild steel fumes as a mere nuisance
dust. The Group 1 classification confirms there is sufficient, undeniable evidence that inhaling
any welding fume causes lung cancer and potentially kidney cancer, mandating strict Local
Exhaust Ventilation (LEV) protocols across all fabrication shops.
Q5: In the standard SMAW electrode designation E4918, what does the numerical "1" explicitly
indicate? The Answer: The electrode is qualified for all welding positions (flat, horizontal,
vertical, and overhead). The Professional Insight: Selecting the correct position designator is
critical for the welder. An all-position electrode utilizes a fast-freezing slag that ensures the
molten puddle will solidify rapidly enough to prevent gravity from pulling it out of the joint when
welding vertically or overhead.
Q6: What type of destructive mechanical test requires the use of an impact test specimen to
determine a material's resistance to sudden brittle fracture? The Answer: The Charpy V-Notch
(Notched bar impact) test. The Professional Insight: This destructive test features a swinging
pendulum that strikes a notched sample to measure the exact amount of kinetic energy
absorbed during fracture. It is a critical requirement for structures operating in freezing
environments (like Arctic pipelines) to ensure the steel yields elastically rather than shattering
like glass.
Q7: Under the practical examination's Generic Welding Standard (GWS), what is the maximum
allowable diameter or length for a single pore of visible surface porosity? The Answer: 1 mm.
The Professional Insight: Porosity represents trapped atmospheric gas within the solidifying
metal. While a single microscopic pore might not collapse a massive building, any pore
exceeding 1 mm indicates a fundamental failure in the shielding gas coverage or heavy base
metal contamination (oil, rust, paint) that must be rectified immediately.
Q8: What highly efficient welding process establishes an arc between a continuously fed
consumable wire and the workpiece while operating entirely under a granular flux blanket? The
Answer: Submerged Arc Welding (SAW). The Professional Insight: SAW serves as the
heavy-industry workhorse for thick-plate fabrication. The flux blanket completely suppresses
sparks, spatter, and harmful UV radiation while allowing for massive electrical heat input and
extreme deposition rates, making it the most arc-efficient process available (90-95%).
Q9: What is the metallurgical and visual difference between a transverse crack and a
longitudinal crack? The Answer: A transverse crack runs perpendicular to the longitudinal axis
of the weld, while a longitudinal crack runs parallel to the axis of the weld. The Professional
Insight: Transverse cracks are typically driven by severe longitudinal shrinkage stresses acting
on a highly brittle weld metal structure. This defect frequently indicates a severe mismatch
between the filler metal's properties and the base material's cooling characteristics.
Q10: Which specific Canadian Standard dictates the administrative and technical certification
requirements for companies involved in the fusion welding of steel? The Answer: CSA W47.1.
The Professional Insight: CSA W47.1 ensures the fabricating company possesses the
necessary human infrastructure—specifically qualified Welding Engineers, Welding Supervisors,
and continuously tested welders—before a single arc is struck on a project. It serves as the
administrative backbone of Canadian steel fabrication.
Q11: What happens to the electrical arc voltage when the physical arc length is manually
increased by the welder during an operation? The Answer: The arc voltage increases. The
Professional Insight: Arc length and voltage share a direct, proportional relationship. Pulling
