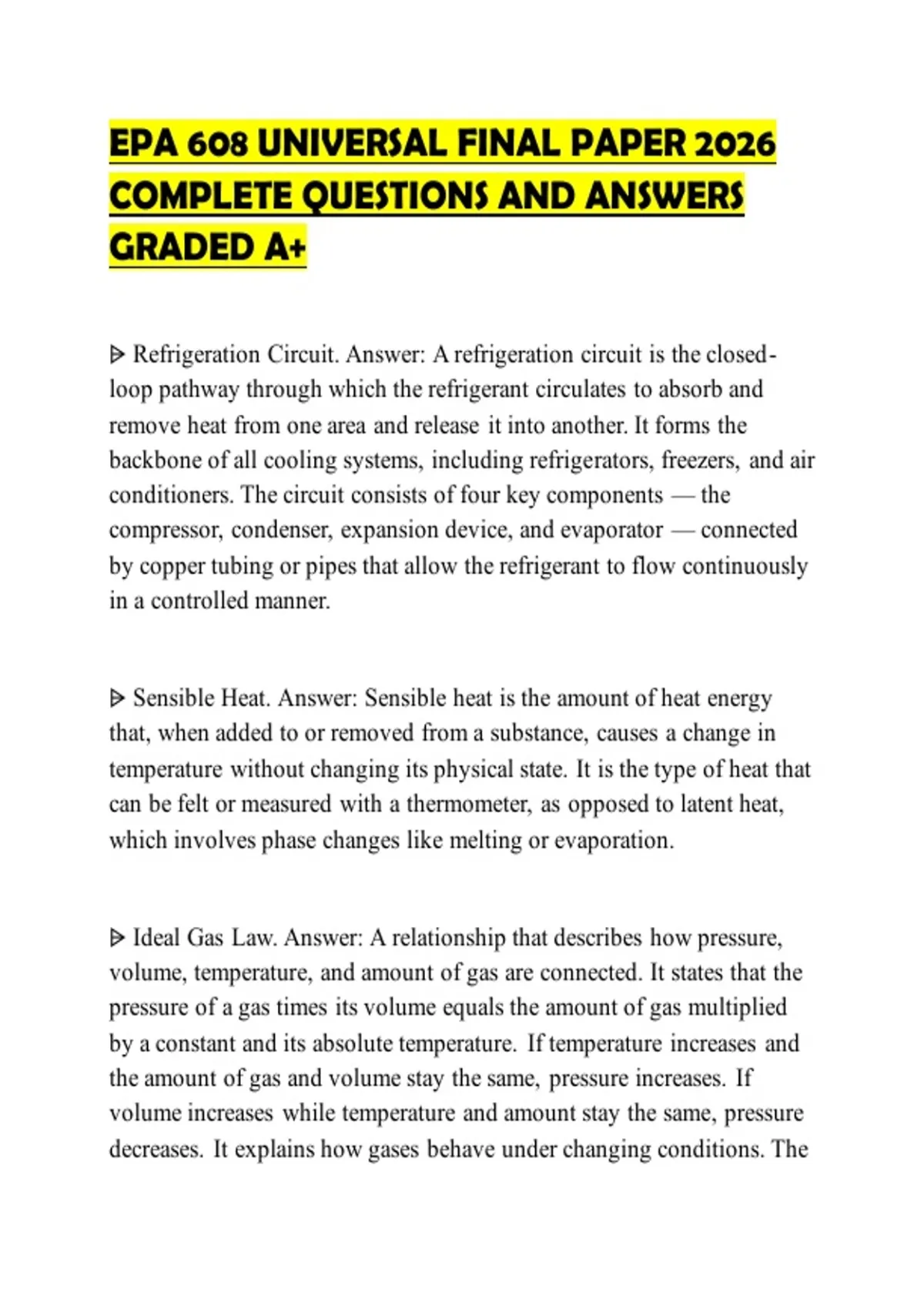

EPA 608 UNIVERSAL FINAL PAPER 2026
COMPLETE QUESTIONS AND ANSWERS
GRADED A+
⩥ Refrigeration Circuit. Answer: A refrigeration circuit is the closed-
loop pathway through which the refrigerant circulates to absorb and
remove heat from one area and release it into another. It forms the
backbone of all cooling systems, including refrigerators, freezers, and air
conditioners. The circuit consists of four key components — the
compressor, condenser, expansion device, and evaporator — connected
by copper tubing or pipes that allow the refrigerant to flow continuously
in a controlled manner.
⩥ Sensible Heat. Answer: Sensible heat is the amount of heat energy
that, when added to or removed from a substance, causes a change in
temperature without changing its physical state. It is the type of heat that
can be felt or measured with a thermometer, as opposed to latent heat,
which involves phase changes like melting or evaporation.
⩥ Ideal Gas Law. Answer: A relationship that describes how pressure,
volume, temperature, and amount of gas are connected. It states that the
pressure of a gas times its volume equals the amount of gas multiplied
by a constant and its absolute temperature. If temperature increases and
the amount of gas and volume stay the same, pressure increases. If
volume increases while temperature and amount stay the same, pressure
decreases. It explains how gases behave under changing conditions. The
,law assumes that gas particles have no significant volume and that there
are no attractive or repulsive forces between them. Collisions between
gas molecules and with the container walls are perfectly elastic, meaning
no energy is lost. Under these assumptions, a gas is said to behave
ideally. While no real gas is perfectly ideal, the Ideal Gas Law gives
accurate results at normal temperatures and pressures. Deviations occur
at high pressures or low temperatures where molecules are close
together, and intermolecular forces become significant.
⩥ Mole. Answer: A mole is a fundamental unit in chemistry that
measures the amount of a substance. It represents a fixed number of
particles, such as atoms, molecules, ions, or electrons. One mole is
defined as containing exactly 6.022 × 10²³ particles, a value known as
Avogadro's number. This means that one mole of carbon atoms, one
mole of water molecules, or one mole of sodium ions each contain the
same number of individual entities — 6.022 × 10²³ — even though their
masses are different.
⩥ Avogadro's Number. Answer: A constant that represents the number of
particles such as atoms or molecules in one mole of a substance. Its
value is about 6.022 times 10 to the 23. It links the microscopic world of
individual particles to measurable laboratory amounts, allowing
calculations of mass, quantity of matter, and chemical reaction
relationships.
⩥ Molar Mass. Answer: Molar mass is the mass of one mole of a
substance, expressed in grams per mole (g/mol). It tells us how much
one mole — that is, 6.022 × 10²³ particles (Avogadro's number) — of a
,particular element or compound weighs. The molar mass provides a
direct link between the microscopic world of atoms and molecules and
the macroscopic world of measurable quantities in the laboratory. For an
element, the molar mass is numerically equal to its atomic mass on the
periodic table but expressed in grams per mole. For a compound, the
molar mass is found by adding up the molar masses of all the atoms in
its chemical formula. For instance, the molar mass of water (H₂O) is
calculated by adding the mass of two hydrogen atoms (2 × 1.008 g/mol)
and one oxygen atom (16.00 g/mol), giving a total of about 18.016
g/mol.
⩥ Flashing Process. Answer: The flashing process is a thermodynamic
phenomenon that occurs when a liquid suddenly evaporates or vaporizes
as it undergoes a rapid pressure drop. In this process, a portion of the
liquid instantly converts into vapor because the lower pressure causes its
boiling point to fall below the liquid's actual temperature. The remaining
portion stays as liquid, resulting in a mixture of vapor and liquid —
often called a two-phase mixture.
⩥ Evaporator. Answer: An evaporator is a key component in
refrigeration and air-conditioning systems that serves the purpose of
absorbing heat from the space or substance that needs to be cooled. It
works by allowing the low-pressure, low-temperature refrigerant to
evaporate—that is, change from liquid to vapor—while absorbing heat
from its surroundings in the process. This heat absorption is what creates
the cooling effect that makes refrigeration and air conditioning possible.
, ⩥ Condenser. Answer: A condenser is a crucial component in
refrigeration, air-conditioning, and power generation systems that
functions to reject heat from a working fluid or refrigerant to the
surrounding environment. In a refrigeration or air-conditioning system,
the condenser's main role is to convert high-pressure vapor refrigerant
coming from the compressor into a high-pressure liquid by releasing the
heat it carries. This process completes the heat rejection stage of the
refrigeration cycle and allows the refrigerant to be reused in the cooling
process.
⩥ Compressor. Answer: A compressor is the mechanical heart of a
refrigeration or air-conditioning system. Its main function is to raise the
pressure and temperature of the refrigerant vapor so that it can release
absorbed heat in the condenser. In simple terms, the compressor draws in
low-pressure vapor from the evaporator, compresses it into a high-
pressure, high-temperature vapor, and then discharges it into the
condenser, maintaining the flow of refrigerant through the entire cycle.
⩥ Expansion Valve. Answer: An expansion valve is a critical component
in refrigeration and air-conditioning systems that controls the flow and
pressure of the refrigerant entering the evaporator. Its main purpose is to
reduce the pressure and temperature of the high-pressure liquid
refrigerant from the condenser, converting it into a low-pressure, low-
temperature mixture of liquid and vapor before it enters the evaporator.
This process enables the refrigerant to absorb heat efficiently and
produce cooling.
COMPLETE QUESTIONS AND ANSWERS
GRADED A+
⩥ Refrigeration Circuit. Answer: A refrigeration circuit is the closed-
loop pathway through which the refrigerant circulates to absorb and
remove heat from one area and release it into another. It forms the
backbone of all cooling systems, including refrigerators, freezers, and air
conditioners. The circuit consists of four key components — the
compressor, condenser, expansion device, and evaporator — connected
by copper tubing or pipes that allow the refrigerant to flow continuously
in a controlled manner.
⩥ Sensible Heat. Answer: Sensible heat is the amount of heat energy
that, when added to or removed from a substance, causes a change in
temperature without changing its physical state. It is the type of heat that
can be felt or measured with a thermometer, as opposed to latent heat,
which involves phase changes like melting or evaporation.
⩥ Ideal Gas Law. Answer: A relationship that describes how pressure,
volume, temperature, and amount of gas are connected. It states that the
pressure of a gas times its volume equals the amount of gas multiplied
by a constant and its absolute temperature. If temperature increases and
the amount of gas and volume stay the same, pressure increases. If
volume increases while temperature and amount stay the same, pressure
decreases. It explains how gases behave under changing conditions. The
,law assumes that gas particles have no significant volume and that there
are no attractive or repulsive forces between them. Collisions between
gas molecules and with the container walls are perfectly elastic, meaning
no energy is lost. Under these assumptions, a gas is said to behave
ideally. While no real gas is perfectly ideal, the Ideal Gas Law gives
accurate results at normal temperatures and pressures. Deviations occur
at high pressures or low temperatures where molecules are close
together, and intermolecular forces become significant.
⩥ Mole. Answer: A mole is a fundamental unit in chemistry that
measures the amount of a substance. It represents a fixed number of
particles, such as atoms, molecules, ions, or electrons. One mole is
defined as containing exactly 6.022 × 10²³ particles, a value known as
Avogadro's number. This means that one mole of carbon atoms, one
mole of water molecules, or one mole of sodium ions each contain the
same number of individual entities — 6.022 × 10²³ — even though their
masses are different.
⩥ Avogadro's Number. Answer: A constant that represents the number of
particles such as atoms or molecules in one mole of a substance. Its
value is about 6.022 times 10 to the 23. It links the microscopic world of
individual particles to measurable laboratory amounts, allowing
calculations of mass, quantity of matter, and chemical reaction
relationships.
⩥ Molar Mass. Answer: Molar mass is the mass of one mole of a
substance, expressed in grams per mole (g/mol). It tells us how much
one mole — that is, 6.022 × 10²³ particles (Avogadro's number) — of a
,particular element or compound weighs. The molar mass provides a
direct link between the microscopic world of atoms and molecules and
the macroscopic world of measurable quantities in the laboratory. For an
element, the molar mass is numerically equal to its atomic mass on the
periodic table but expressed in grams per mole. For a compound, the
molar mass is found by adding up the molar masses of all the atoms in
its chemical formula. For instance, the molar mass of water (H₂O) is
calculated by adding the mass of two hydrogen atoms (2 × 1.008 g/mol)
and one oxygen atom (16.00 g/mol), giving a total of about 18.016
g/mol.
⩥ Flashing Process. Answer: The flashing process is a thermodynamic
phenomenon that occurs when a liquid suddenly evaporates or vaporizes
as it undergoes a rapid pressure drop. In this process, a portion of the
liquid instantly converts into vapor because the lower pressure causes its
boiling point to fall below the liquid's actual temperature. The remaining
portion stays as liquid, resulting in a mixture of vapor and liquid —
often called a two-phase mixture.
⩥ Evaporator. Answer: An evaporator is a key component in
refrigeration and air-conditioning systems that serves the purpose of
absorbing heat from the space or substance that needs to be cooled. It
works by allowing the low-pressure, low-temperature refrigerant to
evaporate—that is, change from liquid to vapor—while absorbing heat
from its surroundings in the process. This heat absorption is what creates
the cooling effect that makes refrigeration and air conditioning possible.
, ⩥ Condenser. Answer: A condenser is a crucial component in
refrigeration, air-conditioning, and power generation systems that
functions to reject heat from a working fluid or refrigerant to the
surrounding environment. In a refrigeration or air-conditioning system,
the condenser's main role is to convert high-pressure vapor refrigerant
coming from the compressor into a high-pressure liquid by releasing the
heat it carries. This process completes the heat rejection stage of the
refrigeration cycle and allows the refrigerant to be reused in the cooling
process.
⩥ Compressor. Answer: A compressor is the mechanical heart of a
refrigeration or air-conditioning system. Its main function is to raise the
pressure and temperature of the refrigerant vapor so that it can release
absorbed heat in the condenser. In simple terms, the compressor draws in
low-pressure vapor from the evaporator, compresses it into a high-
pressure, high-temperature vapor, and then discharges it into the
condenser, maintaining the flow of refrigerant through the entire cycle.
⩥ Expansion Valve. Answer: An expansion valve is a critical component
in refrigeration and air-conditioning systems that controls the flow and
pressure of the refrigerant entering the evaporator. Its main purpose is to
reduce the pressure and temperature of the high-pressure liquid
refrigerant from the condenser, converting it into a low-pressure, low-
temperature mixture of liquid and vapor before it enters the evaporator.
This process enables the refrigerant to absorb heat efficiently and
produce cooling.
