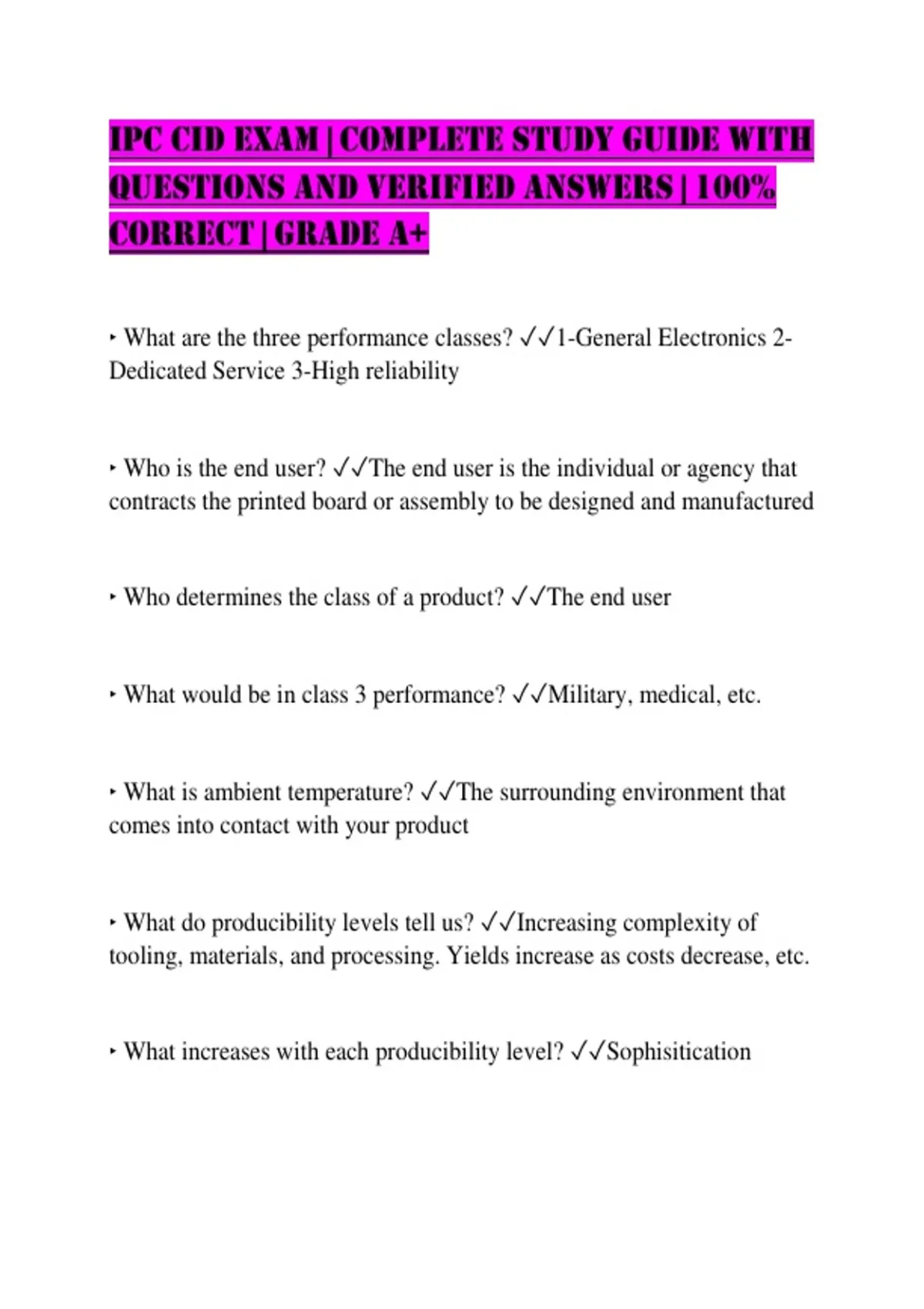

‣ What are the three performance classes? ✓✓1-General Electronics 2-
Dedicated Service 3-High reliability
‣ Who is the end user? ✓✓The end user is the individual or agency that
contracts the printed board or assembly to be designed and manufactured
‣ Who determines the class of a product? ✓✓The end user
‣ What would be in class 3 performance? ✓✓Military, medical, etc.
‣ What is ambient temperature? ✓✓The surrounding environment that
comes into contact with your product
‣ What do producibility levels tell us? ✓✓Increasing complexity of
tooling, materials, and processing. Yields increase as costs decrease, etc.
‣ What increases with each producibility level? ✓✓Sophisitication
, ‣ What is the zaxis aspect ratio? ✓✓Ratio between the nominal thickness
of the board and the smallest drill size.
‣ What is the most important special consideration in terms of electrical
functionality that a designer must consult the EE? ✓✓Special keep out
or keep in areas of the board.
‣ Where should high frequency circuits be placed? ✓✓NEar the
connector
‣ Where should filtering caps be placed? ✓✓Near the source of
power/gnd (at the connector)
‣ What is least important to route in analog circuits? ✓✓Power and
ground
‣ What is a major consideration for component placement? ✓✓Will
backwards compatibility be necessary?
‣ What is Ohm's law? ✓✓V=IR
‣ What is an important basic rule for a designer of a board?
✓✓Terminate unused logic pins with a pull-down or pull-up resistor.
Questions and Verified Answers | 100%
Correct | Grade A+
‣ What are the three performance classes? ✓✓1-General Electronics 2-
Dedicated Service 3-High reliability
‣ Who is the end user? ✓✓The end user is the individual or agency that
contracts the printed board or assembly to be designed and manufactured
‣ Who determines the class of a product? ✓✓The end user
‣ What would be in class 3 performance? ✓✓Military, medical, etc.
‣ What is ambient temperature? ✓✓The surrounding environment that
comes into contact with your product
‣ What do producibility levels tell us? ✓✓Increasing complexity of
tooling, materials, and processing. Yields increase as costs decrease, etc.
‣ What increases with each producibility level? ✓✓Sophisitication
, ‣ What is the zaxis aspect ratio? ✓✓Ratio between the nominal thickness
of the board and the smallest drill size.
‣ What is the most important special consideration in terms of electrical
functionality that a designer must consult the EE? ✓✓Special keep out
or keep in areas of the board.
‣ Where should high frequency circuits be placed? ✓✓NEar the
connector
‣ Where should filtering caps be placed? ✓✓Near the source of
power/gnd (at the connector)
‣ What is least important to route in analog circuits? ✓✓Power and
ground
‣ What is a major consideration for component placement? ✓✓Will
backwards compatibility be necessary?
‣ What is Ohm's law? ✓✓V=IR
‣ What is an important basic rule for a designer of a board?
✓✓Terminate unused logic pins with a pull-down or pull-up resistor.
