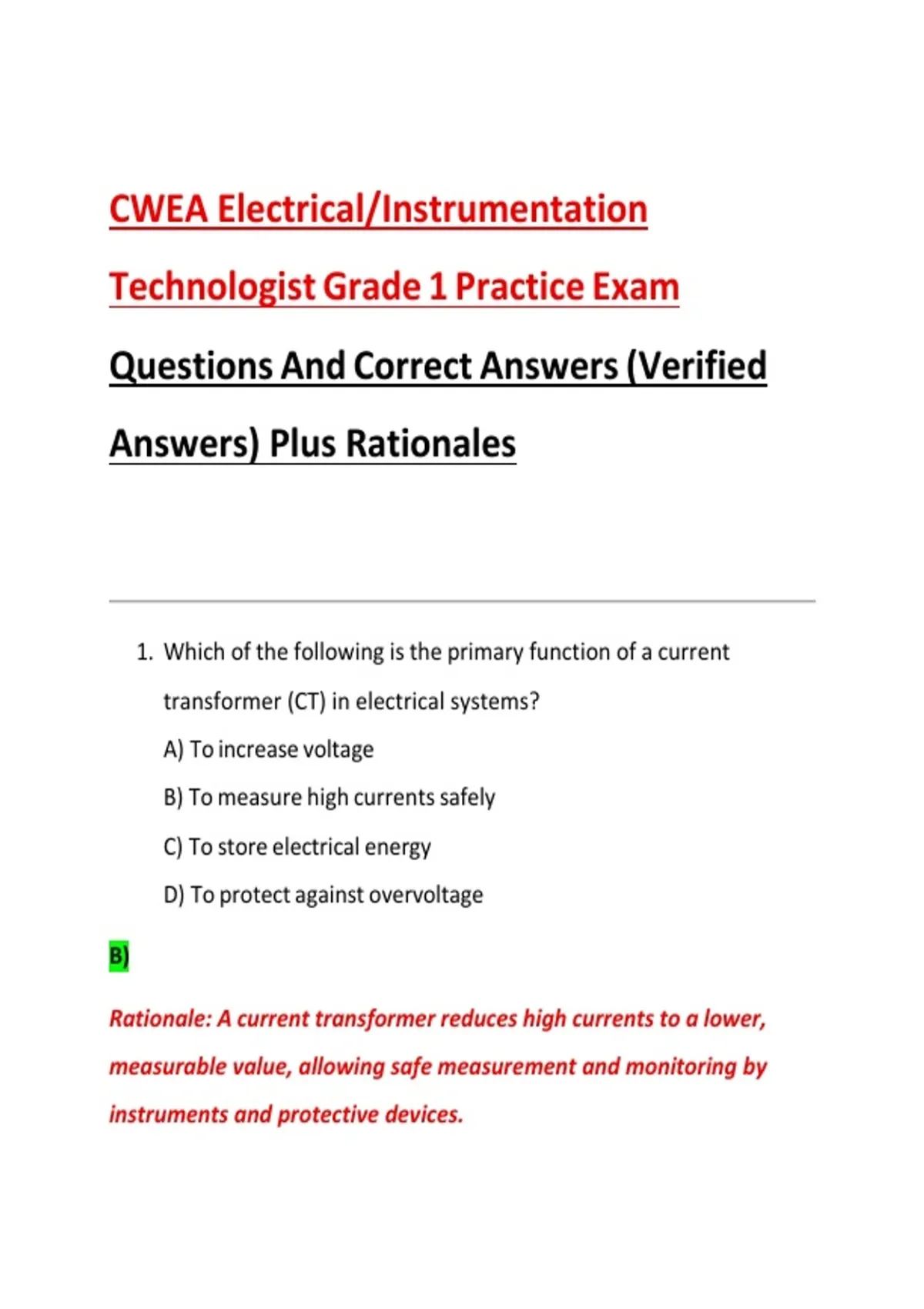

CWEA Electrical/Instrumentation
Technologist Grade 1 Practice Exam
Questions And Correct Answers (Verified
Answers) Plus Rationales
1. Which of the following is the primary function of a current
transformer (CT) in electrical systems?
A) To increase voltage
B) To measure high currents safely
C) To store electrical energy
D) To protect against overvoltage
B)
Rationale: A current transformer reduces high currents to a lower,
measurable value, allowing safe measurement and monitoring by
instruments and protective devices.
, 2. The purpose of an insulation resistance test is to:
A) Determine wire diameter
B) Check for leakage current through insulation
C) Verify power factor
D) Measure voltage drop
B)
Rationale: Insulation resistance tests detect deteriorated or damaged
insulation by measuring leakage current, which can indicate potential
failures or hazards.
3. A 4–20 mA signal is commonly used in instrumentation because:
A) It allows remote digital communication
B) It is immune to noise and can represent 0–100% of a
measurement
C) It is cheaper than voltage signals
D) It requires no calibration
B)
Rationale: 4–20 mA signals are standard in industrial instrumentation
because they are less susceptible to electrical noise and provide a live-
zero signal (4 mA represents 0%).
, 4. Which of the following devices is used to measure temperature in
a control system?
A) RTD
B) LVDT
C) Strain gauge
D) Potentiometer
A)
Rationale: A Resistance Temperature Detector (RTD) changes
resistance with temperature and is commonly used for precise
temperature measurements.
5. In an AC circuit, which component primarily opposes changes in
current?
A) Resistor
B) Capacitor
C) Inductor
D) Transformer
C)
Rationale: An inductor opposes changes in current by producing a
voltage proportional to the rate of change of current, creating
inductive reactance.
, 6. The term “loop calibration” in instrumentation refers to:
A) Calibrating voltage across a resistor
B) Adjusting a sensor and transmitter together through the entire
control loop
C) Measuring AC frequency
D) Testing transformer ratios
B)
Rationale: Loop calibration ensures that the sensor, transmitter, and
control device work correctly together and that the signal accurately
represents the process variable throughout the control loop.
7. Which of the following wiring color codes typically represents a
neutral conductor in AC power systems?
A) Red
B) Black
C) Blue
D) Green
C)
Rationale: In most modern AC power systems, blue is used to indicate
the neutral conductor, while green or green/yellow is for ground.
Technologist Grade 1 Practice Exam
Questions And Correct Answers (Verified
Answers) Plus Rationales
1. Which of the following is the primary function of a current
transformer (CT) in electrical systems?
A) To increase voltage
B) To measure high currents safely
C) To store electrical energy
D) To protect against overvoltage
B)
Rationale: A current transformer reduces high currents to a lower,
measurable value, allowing safe measurement and monitoring by
instruments and protective devices.
, 2. The purpose of an insulation resistance test is to:
A) Determine wire diameter
B) Check for leakage current through insulation
C) Verify power factor
D) Measure voltage drop
B)
Rationale: Insulation resistance tests detect deteriorated or damaged
insulation by measuring leakage current, which can indicate potential
failures or hazards.
3. A 4–20 mA signal is commonly used in instrumentation because:
A) It allows remote digital communication
B) It is immune to noise and can represent 0–100% of a
measurement
C) It is cheaper than voltage signals
D) It requires no calibration
B)
Rationale: 4–20 mA signals are standard in industrial instrumentation
because they are less susceptible to electrical noise and provide a live-
zero signal (4 mA represents 0%).
, 4. Which of the following devices is used to measure temperature in
a control system?
A) RTD
B) LVDT
C) Strain gauge
D) Potentiometer
A)
Rationale: A Resistance Temperature Detector (RTD) changes
resistance with temperature and is commonly used for precise
temperature measurements.
5. In an AC circuit, which component primarily opposes changes in
current?
A) Resistor
B) Capacitor
C) Inductor
D) Transformer
C)
Rationale: An inductor opposes changes in current by producing a
voltage proportional to the rate of change of current, creating
inductive reactance.
, 6. The term “loop calibration” in instrumentation refers to:
A) Calibrating voltage across a resistor
B) Adjusting a sensor and transmitter together through the entire
control loop
C) Measuring AC frequency
D) Testing transformer ratios
B)
Rationale: Loop calibration ensures that the sensor, transmitter, and
control device work correctly together and that the signal accurately
represents the process variable throughout the control loop.
7. Which of the following wiring color codes typically represents a
neutral conductor in AC power systems?
A) Red
B) Black
C) Blue
D) Green
C)
Rationale: In most modern AC power systems, blue is used to indicate
the neutral conductor, while green or green/yellow is for ground.
