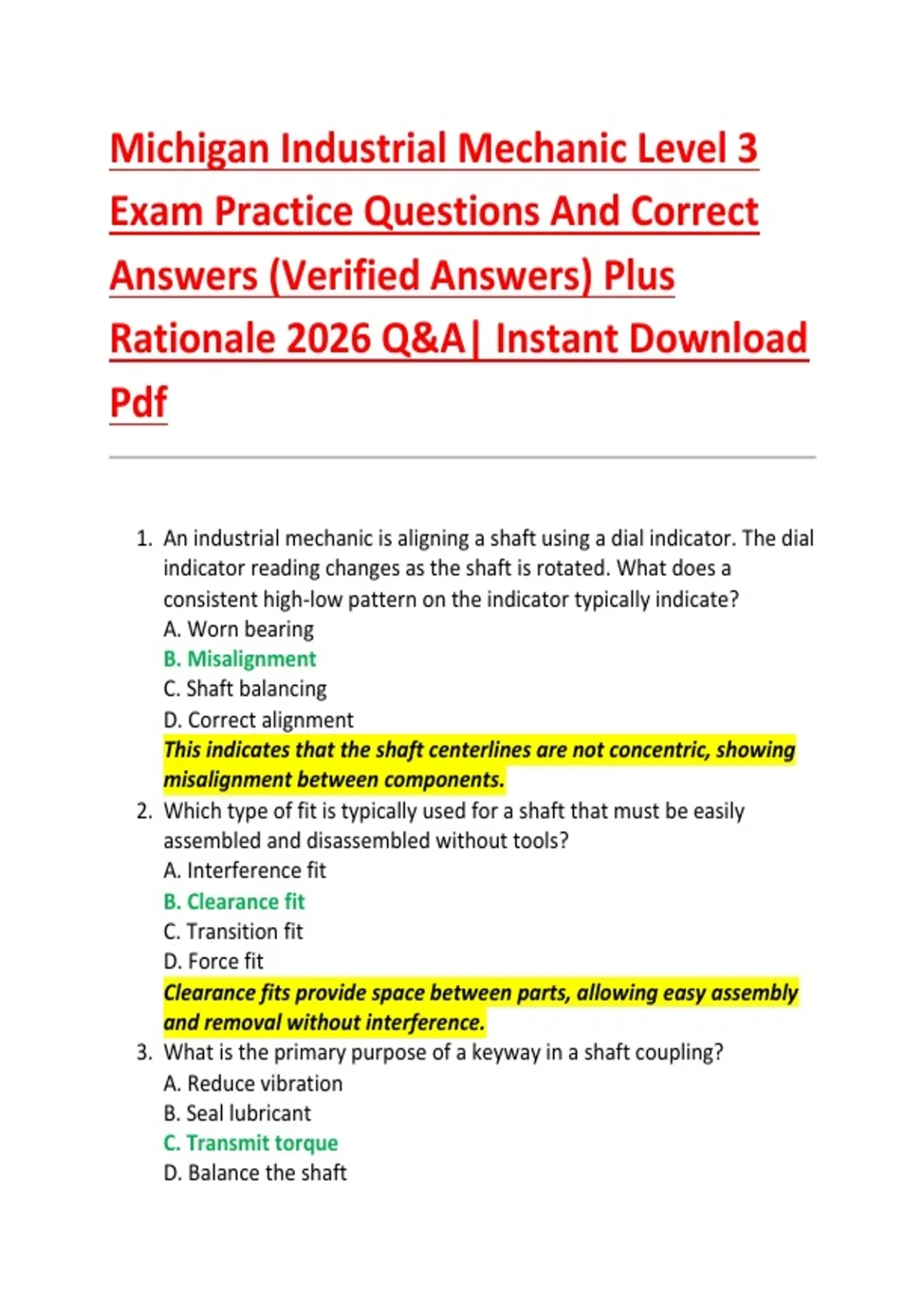

Michigan Industrial Mechanic Level 3
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1. An industrial mechanic is aligning a shaft using a dial indicator. The dial
indicator reading changes as the shaft is rotated. What does a
consistent high-low pattern on the indicator typically indicate?
A. Worn bearing
B. Misalignment
C. Shaft balancing
D. Correct alignment
This indicates that the shaft centerlines are not concentric, showing
misalignment between components.
2. Which type of fit is typically used for a shaft that must be easily
assembled and disassembled without tools?
A. Interference fit
B. Clearance fit
C. Transition fit
D. Force fit
Clearance fits provide space between parts, allowing easy assembly
and removal without interference.
3. What is the primary purpose of a keyway in a shaft coupling?
A. Reduce vibration
B. Seal lubricant
C. Transmit torque
D. Balance the shaft
, The keyway allows a key to lock the coupling to the shaft,
transmitting rotational force.
4. When performing a vibration analysis, a large increase in amplitude at
a specific frequency most likely indicates:
A. Lubrication improvement
B. Resonance condition
C. Temperature decrease
D. Normal operation
A peak in vibration amplitude at a frequency usually indicates
resonance or excitation matching natural frequency.
5. What lubricant consistency number is most appropriate for heavily
loaded industrial gearboxes?
A. ISO VG 22
B. ISO VG 32
C. ISO VG 150
D. ISO VG 10
Higher viscosity oils like ISO VG 150 are suited for heavy loads and
slower speed gear applications.
6. Which instrument is used to measure surface roughness?
A. Micrometer
B. Caliper
C. Profilometer
D. Torque wrench
A profilometer quantifies surface texture by measuring peaks and
valleys on a surface.
7. What is the ANSI standard color code for classifying safety signs
indicating caution?
A. Red background
B. Yellow background
C. Green background
D. Blue background
ANSI defines yellow backgrounds for caution signs to warn of
potential hazards.
8. Calculating belt tension requires knowing both the slack side and tight
side tensions. If tight side tension is 500 lb and slack side tension is
, 200 lb, what is the effective belt tension?
A. 300 lb
B. 150 lb
C. 700 lb
D. 250 lb
Effective tension usually equals the difference: 500 – 200 = 300 lb,
divided by two if relating certain formulas; here the question refers
to basic differential.
9. A bearing showing discoloration around the races most likely
indicates:
A. Over-lubrication
B. Overheating
C. Proper lubrication
D. Electrical fault
Discoloration is a sign the bearing has been overheated due to
friction or insufficient lubrication.
10. Why is proper torquing of fasteners critical in machinery
assembly?
A. Reduces corrosion
B. Increases vibration
C. Ensures clamping force
D. Enhances electrical conductivity
Correct torque ensures the proper clamping force to prevent
loosening or overstressing components.
11. What type of pump is most suitable for handling fluids with high
viscosity?
A. Centrifugal pump
B. Gear pump
C. Turbine pump
D. Jet pump
Positive displacement gear pumps handle high-viscosity fluids by
trapping and moving fixed volumes.
12. A precision shaft is specified as 50.00 mm ± 0.02 mm. If the
actual shaft measures 50.03 mm, what is the tolerance status?
A. Out of tolerance
