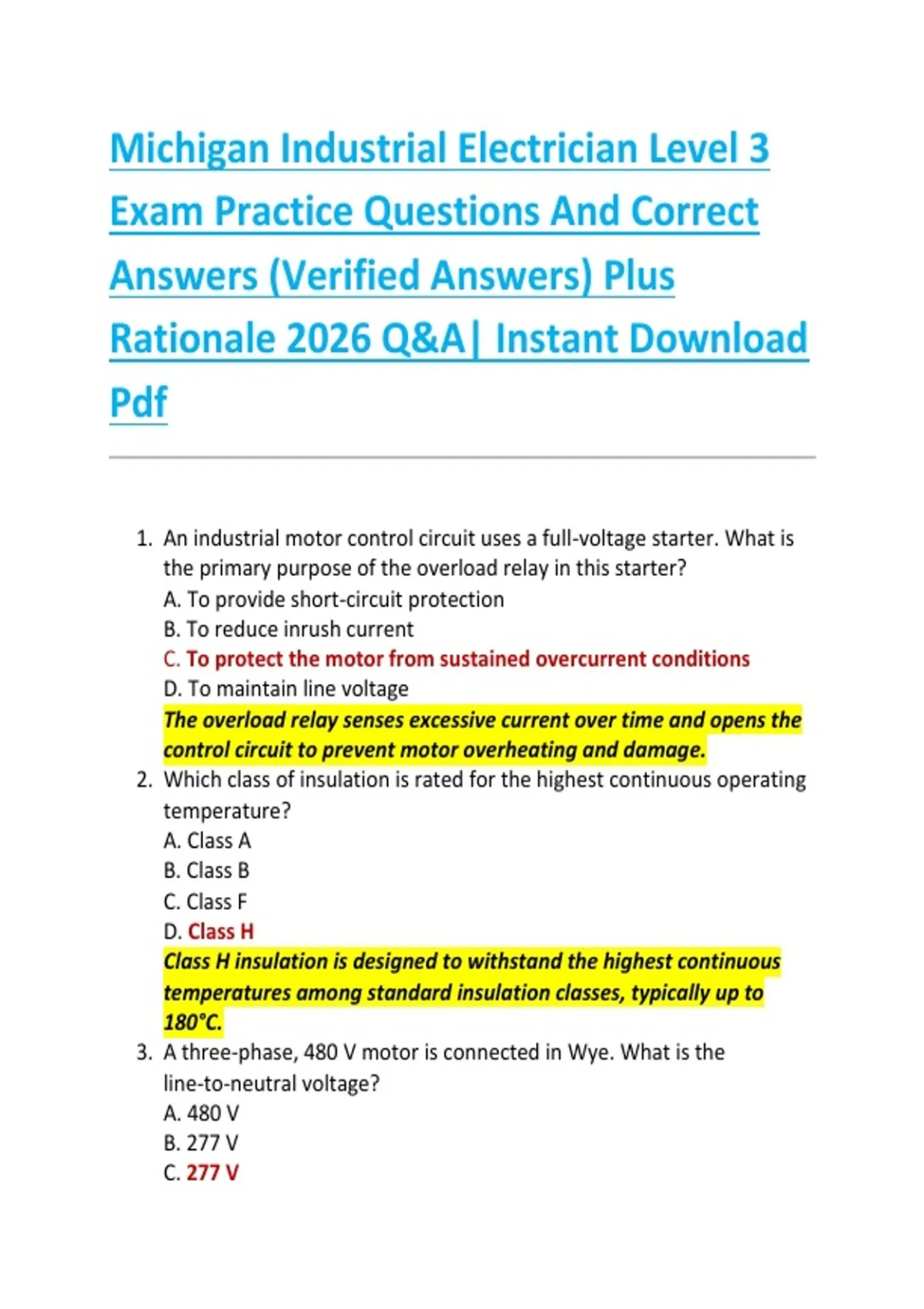

Michigan Industrial Electrician Level 3
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1. An industrial motor control circuit uses a full-voltage starter. What is
the primary purpose of the overload relay in this starter?
A. To provide short-circuit protection
B. To reduce inrush current
C. To protect the motor from sustained overcurrent conditions
D. To maintain line voltage
The overload relay senses excessive current over time and opens the
control circuit to prevent motor overheating and damage.
2. Which class of insulation is rated for the highest continuous operating
temperature?
A. Class A
B. Class B
C. Class F
D. Class H
Class H insulation is designed to withstand the highest continuous
temperatures among standard insulation classes, typically up to
180°C.
3. A three-phase, 480 V motor is connected in Wye. What is the
line-to-neutral voltage?
A. 480 V
B. 277 V
C. 277 V
, D. 240 V
In a Wye configuration, the line-to-neutral voltage is the line voltage
divided by √3, yielding approximately 277 V.
4. According to the NEC, what is the maximum allowable continuous load
on a branch circuit conductor?
A. Equal to the conductor’s ampacity
B. 80 % of the conductor’s ampacity
C. 125 % of the conductor’s ampacity
D. 100 % of the overcurrent device rating
The NEC requires that continuous loads be limited to 80 % of a
conductor’s ampacity to prevent overheating.
5. What is the primary function of a surge suppressor in an industrial
system?
A. To increase system voltage
B. To protect equipment from transient overvoltages
C. To regulate frequency
D. To reduce harmonic distortion
Surge suppressors clamp or divert excessive transient voltages to
protect sensitive electrical equipment.
6. A PLC input module detects a 24 V DC signal from a sensor. What type
of PLC input is this?
A. Analog
B. Digital
C. Pulse
D. PWM
A 24 V DC signal is interpreted as a discrete on/off condition, which is
characteristic of a digital input.
7. When sizing a transformer, what factor must be considered to handle
inrush currents?
A. Power factor
B. K-factor
C. Load diversity
D. Efficiency
The K-factor accounts for harmonic content and inrush current
demands to ensure the transformer is not overloaded.
, 8. In electrical drawings, what does the symbol of a triangle pointing to a
line typically represent?
A. Resistor
B. Transformer winding
C. Grounding point
D. Fuse
A triangle pointing to a line is the conventional symbol for a
grounding or earth connection in schematics.
9. What is the purpose of a lockout/tagout procedure?
A. To increase system performance
B. To ensure equipment is de-energized during maintenance
C. To reduce energy consumption
D. To bypass safety interlocks
Lockout/tagout procedures are used to physically isolate energy
sources and prevent accidental startup during servicing.
10. Which motor starting method provides the lowest starting
current?
A. Direct online
B. Autotransformer start
C. Star-Delta start
D. Soft starter
An autotransformer starter reduces the voltage applied to the motor,
thereby reducing starting current.
11. What type of relay is used to protect against phase loss in a
three-phase motor?
A. Overload relay
B. Phase failure relay
C. Thermal protector
D. Differential relay
A phase failure relay detects loss of one phase and prevents the
motor from operating under such conditions.
12. A 120/240 V single-phase service has a load totaling 36 A on
each ungrounded conductor. What size main breaker is required?
A. 60 A
B. 70 A
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
1. An industrial motor control circuit uses a full-voltage starter. What is
the primary purpose of the overload relay in this starter?
A. To provide short-circuit protection
B. To reduce inrush current
C. To protect the motor from sustained overcurrent conditions
D. To maintain line voltage
The overload relay senses excessive current over time and opens the
control circuit to prevent motor overheating and damage.
2. Which class of insulation is rated for the highest continuous operating
temperature?
A. Class A
B. Class B
C. Class F
D. Class H
Class H insulation is designed to withstand the highest continuous
temperatures among standard insulation classes, typically up to
180°C.
3. A three-phase, 480 V motor is connected in Wye. What is the
line-to-neutral voltage?
A. 480 V
B. 277 V
C. 277 V
, D. 240 V
In a Wye configuration, the line-to-neutral voltage is the line voltage
divided by √3, yielding approximately 277 V.
4. According to the NEC, what is the maximum allowable continuous load
on a branch circuit conductor?
A. Equal to the conductor’s ampacity
B. 80 % of the conductor’s ampacity
C. 125 % of the conductor’s ampacity
D. 100 % of the overcurrent device rating
The NEC requires that continuous loads be limited to 80 % of a
conductor’s ampacity to prevent overheating.
5. What is the primary function of a surge suppressor in an industrial
system?
A. To increase system voltage
B. To protect equipment from transient overvoltages
C. To regulate frequency
D. To reduce harmonic distortion
Surge suppressors clamp or divert excessive transient voltages to
protect sensitive electrical equipment.
6. A PLC input module detects a 24 V DC signal from a sensor. What type
of PLC input is this?
A. Analog
B. Digital
C. Pulse
D. PWM
A 24 V DC signal is interpreted as a discrete on/off condition, which is
characteristic of a digital input.
7. When sizing a transformer, what factor must be considered to handle
inrush currents?
A. Power factor
B. K-factor
C. Load diversity
D. Efficiency
The K-factor accounts for harmonic content and inrush current
demands to ensure the transformer is not overloaded.
, 8. In electrical drawings, what does the symbol of a triangle pointing to a
line typically represent?
A. Resistor
B. Transformer winding
C. Grounding point
D. Fuse
A triangle pointing to a line is the conventional symbol for a
grounding or earth connection in schematics.
9. What is the purpose of a lockout/tagout procedure?
A. To increase system performance
B. To ensure equipment is de-energized during maintenance
C. To reduce energy consumption
D. To bypass safety interlocks
Lockout/tagout procedures are used to physically isolate energy
sources and prevent accidental startup during servicing.
10. Which motor starting method provides the lowest starting
current?
A. Direct online
B. Autotransformer start
C. Star-Delta start
D. Soft starter
An autotransformer starter reduces the voltage applied to the motor,
thereby reducing starting current.
11. What type of relay is used to protect against phase loss in a
three-phase motor?
A. Overload relay
B. Phase failure relay
C. Thermal protector
D. Differential relay
A phase failure relay detects loss of one phase and prevents the
motor from operating under such conditions.
12. A 120/240 V single-phase service has a load totaling 36 A on
each ungrounded conductor. What size main breaker is required?
A. 60 A
B. 70 A
