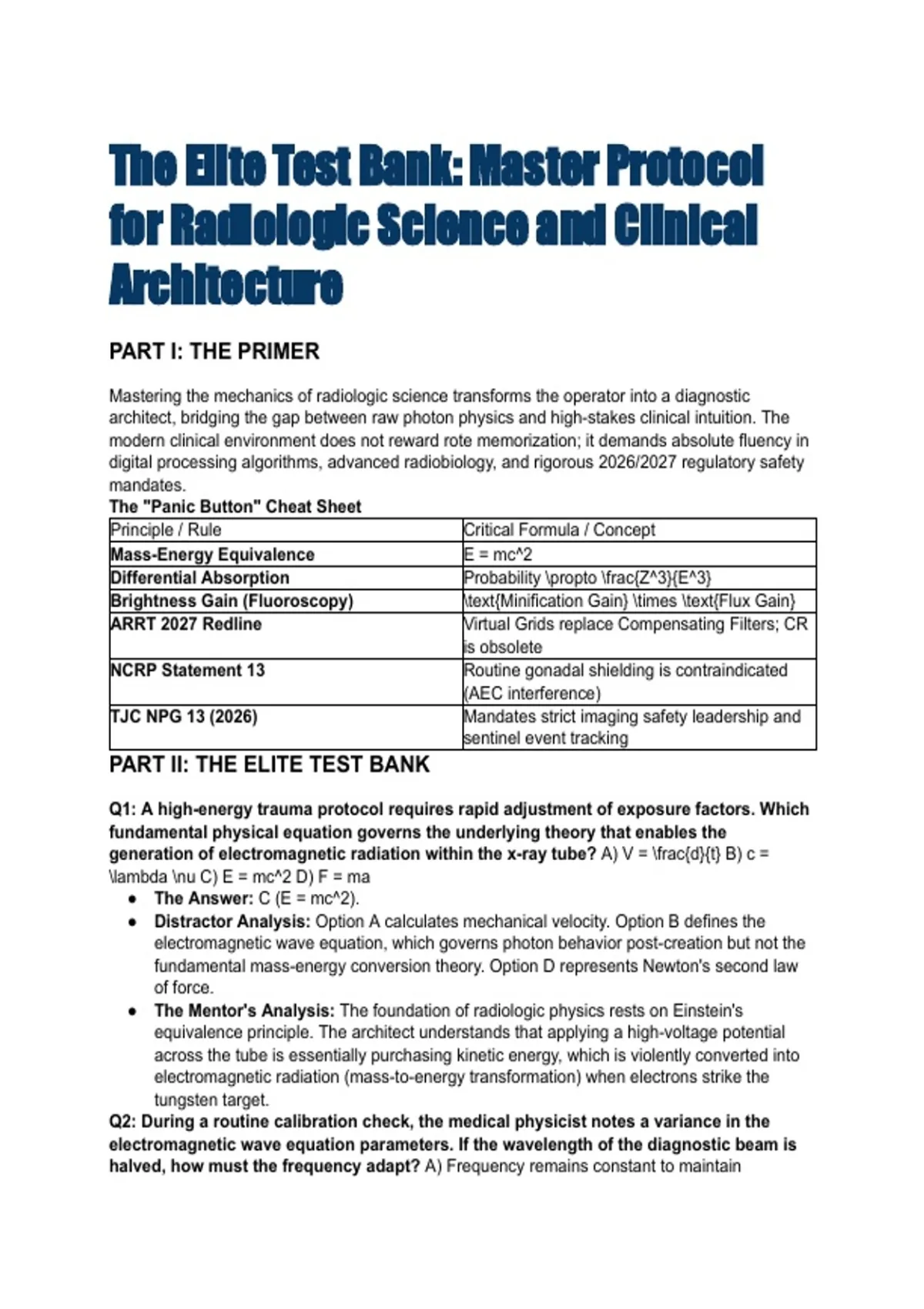

The Elite Test Bank: Master Protocol
for Radiologic Science and Clinical
Architecture
PART I: THE PRIMER
Mastering the mechanics of radiologic science transforms the operator into a diagnostic
architect, bridging the gap between raw photon physics and high-stakes clinical intuition. The
modern clinical environment does not reward rote memorization; it demands absolute fluency in
digital processing algorithms, advanced radiobiology, and rigorous 2026/2027 regulatory safety
mandates.
The "Panic Button" Cheat Sheet
Principle / Rule Critical Formula / Concept
Mass-Energy Equivalence E = mc^2
Differential Absorption Probability \propto \frac{Z^3}{E^3}
Brightness Gain (Fluoroscopy) \text{Minification Gain} \times \text{Flux Gain}
ARRT 2027 Redline Virtual Grids replace Compensating Filters; CR
is obsolete
NCRP Statement 13 Routine gonadal shielding is contraindicated
(AEC interference)
TJC NPG 13 (2026) Mandates strict imaging safety leadership and
sentinel event tracking
PART II: THE ELITE TEST BANK
Q1: A high-energy trauma protocol requires rapid adjustment of exposure factors. Which
fundamental physical equation governs the underlying theory that enables the
generation of electromagnetic radiation within the x-ray tube? A) V = \frac{d}{t} B) c =
\lambda \nu C) E = mc^2 D) F = ma
● The Answer: C (E = mc^2).
● Distractor Analysis: Option A calculates mechanical velocity. Option B defines the
electromagnetic wave equation, which governs photon behavior post-creation but not the
fundamental mass-energy conversion theory. Option D represents Newton's second law
of force.
● The Mentor's Analysis: The foundation of radiologic physics rests on Einstein's
equivalence principle. The architect understands that applying a high-voltage potential
across the tube is essentially purchasing kinetic energy, which is violently converted into
electromagnetic radiation (mass-to-energy transformation) when electrons strike the
tungsten target.
Q2: During a routine calibration check, the medical physicist notes a variance in the
electromagnetic wave equation parameters. If the wavelength of the diagnostic beam is
halved, how must the frequency adapt? A) Frequency remains constant to maintain
,penetrability. B) Frequency decreases by half. C) Frequency doubles. D) Frequency increases
by a factor of four.
● The Answer: C (Frequency doubles).
● Distractor Analysis: Electromagnetic radiation velocity (c) is a universal constant.
Options A, B, and D violate the strictly inverse proportional relationship between
wavelength and frequency.
● The Mentor's Analysis: The electromagnetic wave equation (c = f\lambda) dictates that
because the speed of light is immutable, wavelength and frequency are inversely
proportional. High-frequency, short-wavelength beams define the high-penetration
diagnostic quality required for dense anatomical structures.
Q3: A technologist is analyzing the fundamental building blocks of the iodine contrast
agent utilized in an interventional suite. Which definition accurately categorizes the
contrast media's structural foundation? A) Atoms and molecules constitute the fundamental
building blocks of matter. B) Electrons and photons comprise the fundamental elements of
energy. C) Protons and quarks represent the exclusive components of isotopes. D) Alpha and
beta particles form the core of stable compounds.
● The Answer: A (Atoms and molecules constitute the fundamental building blocks of
matter).
● Distractor Analysis: Options B, C, and D confuse macroscopic atomic structure with
subatomic particles, radioactive decay emissions, or abstract quantum states.
● The Mentor's Analysis: Barium and iodine derive their high-contrast capabilities strictly
from their complex atomic structures. The high atomic number (Z) of these molecules
interacts heavily with the x-ray beam, governed entirely by the rules of physical matter.
Q4: While selecting parameters for a portable abdominal radiograph, the technologist
must understand the nature of the energy emitted. X-rays are classified as which specific
type of energy? A) Kinetic energy B) Thermal energy C) Electromagnetic energy D) Potential
energy
● The Answer: C (Electromagnetic energy).
● Distractor Analysis: While thermal energy (heat) is a massive byproduct of x-ray
production (99%), the x-rays themselves are not thermal. Kinetic energy applies to the
projectile electrons crossing the tube, not the resulting photons.
● The Mentor's Analysis: X-rays exist on the electromagnetic spectrum alongside radio
waves and visible light. The professional distinction is their high frequency, short
wavelength, and capacity to ionize matter by stripping electrons from target atoms.
Q5: A patient undergoes a complex fluoroscopic procedure. The physical interaction that
removes an orbital electron from the patient's tissue, creating a highly reactive ion pair,
is termed: A) Pair production B) Ionization C) Photodisintegration D) Coherent scattering
● The Answer: B (Ionization).
● Distractor Analysis: Pair production and photodisintegration require incident energy
levels far exceeding diagnostic ranges (>1.02 MeV and >10 MeV). Coherent scattering
vibrates the atom but lacks the energy to eject an electron.
● The Mentor's Analysis: Ionization is the dual-edged sword of our profession; it is the
mechanism of both image formation and biological damage. Removing an electron
creates a free radical, serving as the definitive biological trigger for stochastic DNA
mutations.
Q6: To guarantee uniform exposure, the clinical equipment utilizes a specific mechanism
to modify the incoming alternating current. Which process ensures current flows only
from cathode to anode? A) Voltage rectification B) Electromagnetic induction C) Thermionic
, emission D) Autotransformation
● The Answer: A (Voltage rectification).
● Distractor Analysis: Induction powers the step-up transformers. Emission boils off
electrons at the tungsten filament. Autotransformation selects the kVp via self-induction.
None of these correct the alternating current direction.
● The Mentor's Analysis: X-ray tubes require direct current (DC) to prevent catastrophic
reverse electron bombardment of the delicate filament. Rectification systems (using
solid-state P-N junction diodes) convert incoming alternating current (AC) into
unidirectional DC, ensuring electrons safely strike the anode target.
Q7: A radiographic system's high-voltage generator must elevate standard line voltage to
kilovoltage levels to achieve beam penetrability. Which component executes this massive
amplification? A) Filament transformer B) Step-up transformer C) Line voltage compensator D)
Operating console
● The Answer: B (Step-up transformer).
● Distractor Analysis: The filament transformer is a step-down transformer (lowers
voltage, increases current for thermionic emission). The line compensator merely
stabilizes incoming 220V power.
● The Mentor's Analysis: The step-up transformer operates on the principle of mutual
induction to multiply the voltage 500 to 1000 times. This massive potential difference
(kVp) is the driving force that accelerates the electron cloud across the vacuum tube,
determining the ultimate quality of the beam.
Q8: During a femur examination, the technologist aligns the thicker portion of the hip
anatomy toward a specific end of the x-ray tube. This practice exploits which
phenomenon? A) The line-focus principle B) The anode heel effect C) The space charge effect
D) The focusing cup bias
● The Answer: B (The anode heel effect).
● Distractor Analysis: The line-focus principle relates to focal spot size and geometry.
Space charge refers to the electron cloud hovering at the filament.
● The Mentor's Analysis: Radiation intensity is intrinsically greater on the cathode side
because photons generated deep within the target face physical absorption by the anode
heel itself. Elite technologists leverage this by placing dense anatomy under the cathode,
optimizing receptor exposure without arbitrarily increasing mAs.
Q9: An analysis of the x-ray emission spectrum reveals a discrete, high-intensity spike at
precisely 69 keV. This specific peak represents which type of radiation? A)
Bremsstrahlung radiation B) Coherent radiation C) Characteristic radiation D) Scatter radiation
● The Answer: C (Characteristic radiation).
● Distractor Analysis: Bremsstrahlung produces a continuous, bell-shaped spectrum of
varying energies. Coherent and scatter are interactions with human tissue, not production
mechanisms at the target.
● The Mentor's Analysis: The discrete spike is the exact atomic fingerprint of the Tungsten
target. It occurs only when a projectile electron ejects a K-shell electron, and an L-shell
electron drops into the void, releasing exactly the difference in binding energies (69 keV).
Q10: To comply with rigorous ALARA standards, the facility upgrades the x-ray tube
filtration from 2.5 mm Al to 4.0 mm Al. What is the precise, physical effect on the x-ray
emission spectrum? A) Quantity increases; Average energy decreases. B) Quantity
decreases; Average energy increases. C) Quantity and average energy both decrease. D)
Quantity and average energy both increase.
● The Answer: B (Quantity decreases; Average energy increases).
