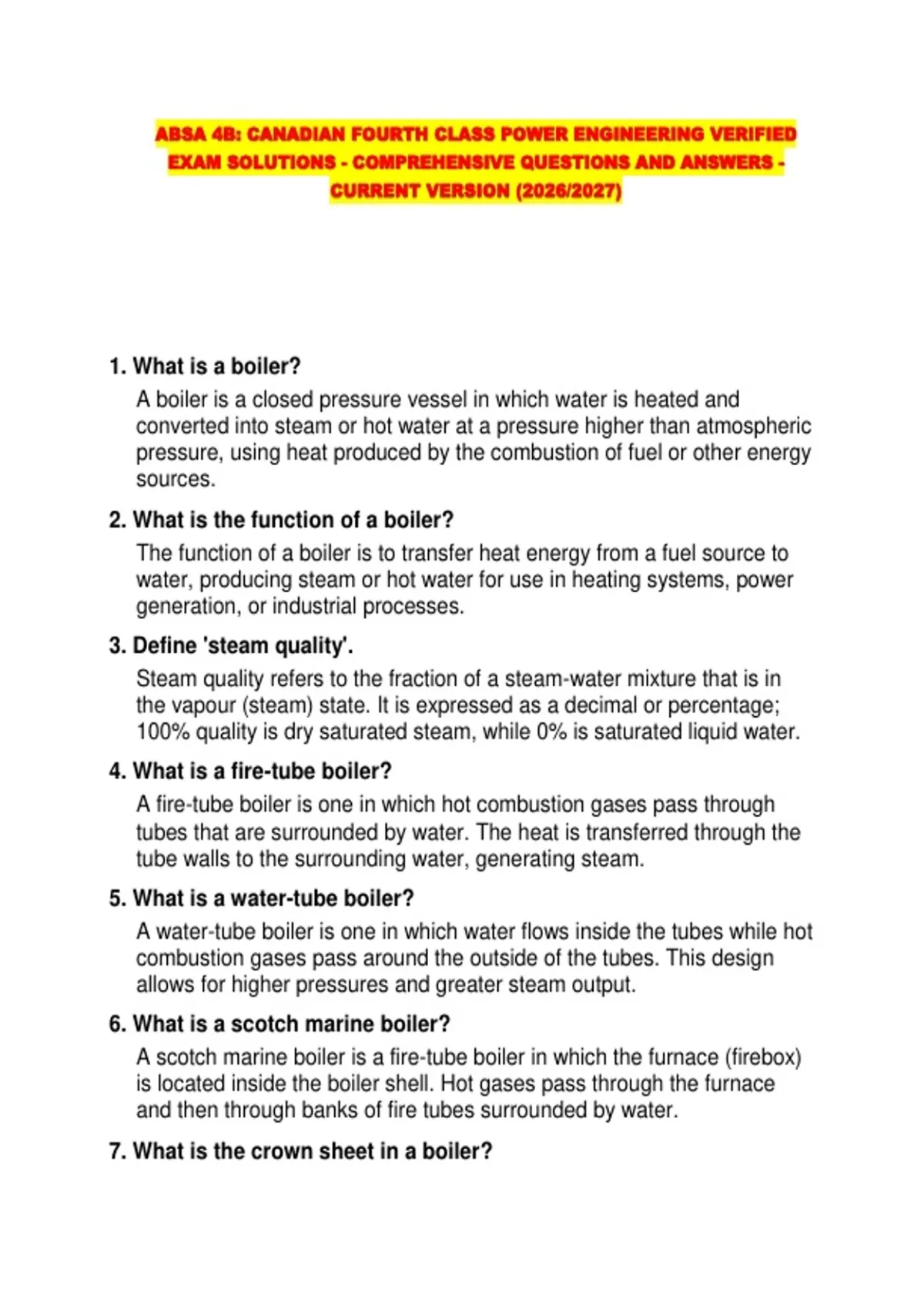

ABSA 4B: CANADIAN FOURTH CLASS POWER ENGINEERING VERIFIED
EXAM SOLUTIONS - COMPREHENSIVE QUESTIONS AND ANSWERS -
CURRENT VERSION (2026/2027)
1. What is a boiler?
A boiler is a closed pressure vessel in which water is heated and
converted into steam or hot water at a pressure higher than atmospheric
pressure, using heat produced by the combustion of fuel or other energy
sources.
2. What is the function of a boiler?
The function of a boiler is to transfer heat energy from a fuel source to
water, producing steam or hot water for use in heating systems, power
generation, or industrial processes.
3. Define 'steam quality'.
Steam quality refers to the fraction of a steam-water mixture that is in
the vapour (steam) state. It is expressed as a decimal or percentage;
100% quality is dry saturated steam, while 0% is saturated liquid water.
4. What is a fire-tube boiler?
A fire-tube boiler is one in which hot combustion gases pass through
tubes that are surrounded by water. The heat is transferred through the
tube walls to the surrounding water, generating steam.
5. What is a water-tube boiler?
A water-tube boiler is one in which water flows inside the tubes while hot
combustion gases pass around the outside of the tubes. This design
allows for higher pressures and greater steam output.
6. What is a scotch marine boiler?
A scotch marine boiler is a fire-tube boiler in which the furnace (firebox)
is located inside the boiler shell. Hot gases pass through the furnace
and then through banks of fire tubes surrounded by water.
7. What is the crown sheet in a boiler?
, The crown sheet is the top plate of the internal furnace or firebox in a
fire-tube boiler. It is one of the most critical and vulnerable components
as it must always be covered with water to prevent overheating.
8. What is a stay bolt?
A stay bolt is a threaded rod or bolt used to support flat surfaces in a
boiler that would otherwise be subject to bulging due to internal
pressure. Stay bolts connect the firebox sheets to the outer shell.
9. What is the purpose of a mud drum?
A mud drum (lower drum) in a water-tube boiler collects sediment, scale,
and impurities that settle out of the boiler water. It is located at the
bottom of the boiler and is periodically blown down to remove
accumulated solids.
10. What is a steam drum?
A steam drum is the upper drum in a water-tube boiler where steam
separates from the water. It also provides a reservoir of water and
steam, and houses steam separation equipment such as baffles and
cyclone separators.
11. Define 'rated boiler horsepower (BHP)'.
One boiler horsepower equals the evaporation of 34.5 lb of water per
hour from and at 212°F, which is equivalent to a heat output of
approximately 33,472 BTU/h or 9.81 kW.
12. What is meant by 'maximum allowable working pressure (MAWP)'?
MAWP is the maximum gauge pressure at which a boiler or pressure
vessel is permitted to operate under normal conditions. It is stamped on
the boiler nameplate and must not be exceeded during operation.
13. What is a Hartford loop?
A Hartford loop is a piping arrangement used on steam heating boilers
to prevent the loss of water from the boiler in the event of a leak in the
return piping. It connects the steam and return lines near the boiler
waterline.
14. What is carryover in a boiler?
Carryover is the carry-out of water droplets or dissolved solids with the
steam leaving the boiler. It can contaminate steam systems, cause
water hammer, and damage turbines or other steam-using equipment.
,15. What causes priming in a boiler?
Priming is caused by high water levels, high dissolved solids
concentration, contamination by oil or other substances, or rapid
increases in steam demand causing violent boiling and the carry-over of
water with steam.
Boiler Safety Devices
16. What is a safety valve?
A safety valve is a pressure relief device that automatically opens when
boiler pressure exceeds the set pressure, discharging steam to
atmosphere to prevent over-pressurization and possible explosion.
17. How is a safety valve set?
A safety valve is set at or below the MAWP of the boiler by a certified
valve manufacturer or authorized inspector. It must not be tampered with
by operating personnel and the set pressure is stamped on the valve
nameplate.
18. What is the difference between a safety valve and a relief valve?
A safety valve is used on steam systems and has a rapid full-open (pop)
action. A relief valve is used on liquid systems and opens proportionally
to pressure. A safety relief valve can function in both applications.
19. What is a try cock?
A try cock (gauge cock) is a small valve installed at the normal water
level on a boiler. It is used to verify water level by opening the cock and
observing whether steam, water, or a mixture exits, confirming the actual
water level.
20. What is a water column?
A water column is a chamber connected to both the steam space and
the water space of a boiler. It houses the water gauge glass and try
cocks, providing a stable means of observing the boiler water level.
21. Why must gauge glass blow-down be performed regularly?
Gauge glass blow-down is performed to clear any sediment or scale
from the gauge glass connections and to verify the gauge glass is
reading accurately. A blocked connection can give a false water level
reading, leading to unsafe operation.
, 22. What is a fusible plug?
A fusible plug is a safety device filled with a low-melting-point alloy
(typically tin) that melts when the boiler crown sheet overheats due to
low water, allowing steam to escape and warning the operator of a
dangerous condition.
23. What is a low-water fuel cutoff?
A low-water fuel cutoff (LWCO) is an automatic safety device that shuts
off the fuel supply to the burner when the boiler water level drops below
a safe minimum level, preventing dry firing and potential boiler damage.
24. What is a high-limit pressure control?
A high-limit pressure control is an automatic safety control that shuts off
the burner when boiler pressure reaches a preset maximum level. It is
set above the operating pressure control but at or below the safety valve
setting.
25. What is the purpose of a non-return valve on a boiler?
A non-return valve (check valve) on a boiler steam outlet prevents steam
or water from flowing back into the boiler from the steam system. It is
essential when multiple boilers are connected to a common steam
header.
26. What is an audible low-water alarm?
An audible low-water alarm is a safety device that sounds an alarm
when the boiler water level drops to a low but not yet critical level,
warning the operator before the low-water fuel cutoff activates.
27. What pressure should the safety valve be set at?
The safety valve must be set to open at or below the MAWP of the
boiler. For a boiler with a MAWP of 100 psig, the safety valve must open
at or below 100 psig.
28. What is a flame safeguard control?
A flame safeguard control (burner management system) monitors the
burner flame during startup and operation. If flame failure occurs, it
shuts off the fuel supply within a few seconds to prevent an uncontrolled
fuel buildup and explosion.
29. What is a pressure gauge?
