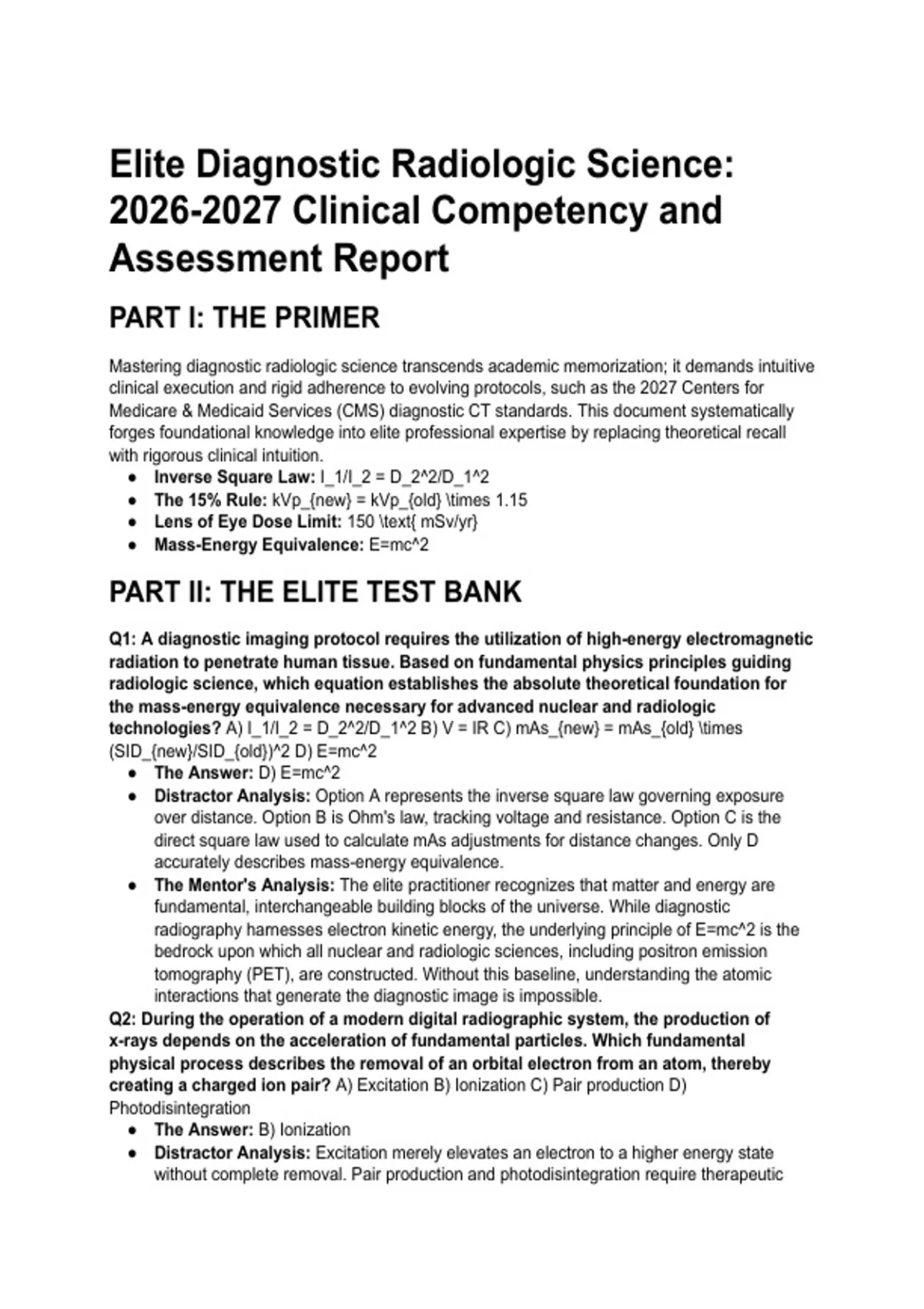

Elite Diagnostic Radiologic Science:
2026-2027 Clinical Competency and
Assessment Report
PART I: THE PRIMER
Mastering diagnostic radiologic science transcends academic memorization; it demands intuitive
clinical execution and rigid adherence to evolving protocols, such as the 2027 Centers for
Medicare & Medicaid Services (CMS) diagnostic CT standards. This document systematically
forges foundational knowledge into elite professional expertise by replacing theoretical recall
with rigorous clinical intuition.
● Inverse Square Law: I_1/I_2 = D_2^2/D_1^2
● The 15% Rule: kVp_{new} = kVp_{old} \times 1.15
● Lens of Eye Dose Limit: 150 \text{ mSv/yr}
● Mass-Energy Equivalence: E=mc^2
PART II: THE ELITE TEST BANK
Q1: A diagnostic imaging protocol requires the utilization of high-energy electromagnetic
radiation to penetrate human tissue. Based on fundamental physics principles guiding
radiologic science, which equation establishes the absolute theoretical foundation for
the mass-energy equivalence necessary for advanced nuclear and radiologic
technologies? A) I_1/I_2 = D_2^2/D_1^2 B) V = IR C) mAs_{new} = mAs_{old} \times
(SID_{new}/SID_{old})^2 D) E=mc^2
● The Answer: D) E=mc^2
● Distractor Analysis: Option A represents the inverse square law governing exposure
over distance. Option B is Ohm's law, tracking voltage and resistance. Option C is the
direct square law used to calculate mAs adjustments for distance changes. Only D
accurately describes mass-energy equivalence.
● The Mentor's Analysis: The elite practitioner recognizes that matter and energy are
fundamental, interchangeable building blocks of the universe. While diagnostic
radiography harnesses electron kinetic energy, the underlying principle of E=mc^2 is the
bedrock upon which all nuclear and radiologic sciences, including positron emission
tomography (PET), are constructed. Without this baseline, understanding the atomic
interactions that generate the diagnostic image is impossible.
Q2: During the operation of a modern digital radiographic system, the production of
x-rays depends on the acceleration of fundamental particles. Which fundamental
physical process describes the removal of an orbital electron from an atom, thereby
creating a charged ion pair? A) Excitation B) Ionization C) Pair production D)
Photodisintegration
● The Answer: B) Ionization
● Distractor Analysis: Excitation merely elevates an electron to a higher energy state
without complete removal. Pair production and photodisintegration require therapeutic
, energy levels (minimum 1.02 MeV and 10 MeV, respectively), far exceeding standard
diagnostic kilovoltage.
● The Mentor's Analysis: Ionizing radiation possesses the specific capability to remove
orbital electrons, an action that underpins both image generation at the digital receptor
and biological damage in human tissue. Understanding ionization is non-negotiable for
adhering to the As Low As Reasonably Achievable (ALARA) principle, as this microscopic
event is the sole initiator of all downstream stochastic and deterministic radiation effects.
Q3: When evaluating the electromagnetic spectrum for medical imaging, which specific
forms of energy are appropriately classified as electromagnetic radiation utilized in
radiologic science? A) Alpha particles and Beta particles B) Ultrasound waves and Thermal
energy C) Radio waves, visible light, and x-rays D) Kinetic energy and potential energy
● The Answer: C) Radio waves, visible light, and x-rays
● Distractor Analysis: Alpha and beta particles are particulate radiation, lacking an
electromagnetic waveform. Ultrasound relies on mechanical sound waves traversing a
physical medium. Kinetic and potential energy describe mechanical states of physical
objects.
● The Mentor's Analysis: The professional technologist must seamlessly differentiate
between particulate and electromagnetic radiation. X-rays, gamma rays, and radio waves
exist on the identical electromagnetic continuum, differentiated only by frequency and
wavelength. This spectrum dictates their specific medical applications, bridging the gap
between magnetic resonance imaging (radio frequencies) and computed tomography
(x-rays).
Q4: A technologist is positioning a patient for an upright chest radiograph. According to
the foundational units of measurement in radiologic physics, how is the core matter
comprising the patient and the imaging equipment properly quantified? A) Joules B)
Electron volts C) Rems D) Kilograms
● The Answer: D) Kilograms
● Distractor Analysis: Joules and electron volts quantify energy expenditure and photon
energy. Rems (or Sieverts) quantify occupational radiation equivalent dose. Matter is
exclusively measured in kilograms.
● The Mentor's Analysis: A rigorous understanding of physical units ensures the
technologist accurately applies dose-reduction algorithms. In modern digital systems
utilizing automated exposure control (AEC) and bariatric imaging protocols, patient mass
(kilograms) directly dictates the requisite beam energy (electron volts) and scatter
reduction requirements.
Q5: In the context of the x-ray imaging system operating console, what specific electrical
component allows the radiologic technologist to precisely adjust the kilovolt peak (kVp)
before the exposure is initiated? A) Filament transformer B) Autotransformer C) High-voltage
generator D) Rectifier bridge
● The Answer: B) Autotransformer
● Distractor Analysis: The filament transformer controls the tube current (mA), not the
accelerating voltage. The high-voltage generator steps up the pre-set voltage, and the
rectifier bridge converts alternating current (AC) to direct current (DC). The initial
kilovoltage selection occurs solely at the autotransformer.
● The Mentor's Analysis: The autotransformer operates on the principle of self-induction
and serves as the central hub for voltage selection before the current reaches the
high-voltage step-up transformer. Mastery of this circuit prevents the misdiagnosis of
console faults when exposure parameters fail to register properly during daily quality
, control.
Q6: An x-ray tube's performance relies heavily on its internal physical architecture.
Which geometric phenomenon describes the varying radiation intensity across the x-ray
field in the anode-cathode direction? A) Space charge effect B) Anode heel effect C)
Focusing cup bias D) Isotropic emission
● The Answer: B) Anode heel effect
● Distractor Analysis: The space charge effect limits mA due to the electron cloud around
the filament. Focusing cup bias repels electrons into a narrow focal spot. Isotropic
emission refers to x-rays radiating equally in all directions from the target.
● The Mentor's Analysis: The anode heel effect causes lower beam intensity on the anode
side due to target material absorption. The elite technologist routinely utilizes this physical
constraint to their advantage by positioning denser anatomical structures under the
cathode axis, optimizing image density without increasing total patient exposure.
Q7: When x-ray photons interact with the human body, varying degrees of attenuation
occur. Which specific tissue interaction is primarily responsible for generating the
subject contrast essential for a diagnostic image? A) Coherent scattering B) Compton
scattering C) Photoelectric effect D) Pair production
● The Answer: C) Photoelectric effect
● Distractor Analysis: Coherent scattering contributes only slightly to image noise at very
low energies. Compton scattering produces occupational scatter and reduces diagnostic
contrast. Pair production does not occur at diagnostic kilovoltage.
● The Mentor's Analysis: The photoelectric effect involves total photon absorption by
inner-shell electrons. Because its probability is inversely proportional to the cube of the
energy (1/E^3) and directly proportional to the cube of the atomic number (Z^3), it creates
the distinct differential absorption between bone and soft tissue necessary for diagnostic
clarity.
Q8: During digital radiography, an image exhibits significant quantum mottle (noise).
Which fundamental exposure adjustment is required to increase the signal-to-noise ratio
(SNR) at the image receptor? A) Increase the grid ratio B) Increase the milliampere-seconds
(mAs) C) Decrease the kilovolt peak (kVp) D) Increase the source-to-image distance (SID)
● The Answer: B) Increase the milliampere-seconds (mAs)
● Distractor Analysis: Increasing grid ratio or SID without compensating factors reduces
receptor exposure, worsening the mottle. Decreasing kVp limits penetrability and receptor
exposure, also exacerbating the mottled appearance.
● The Mentor's Analysis: Quantum mottle in digital systems is strictly a function of photon
starvation at the detector array. The direct physical remedy is to increase the total number
of photons reaching the array, achieved by elevating the mAs. Balancing this required
signal increase against patient dose limits is the hallmark of a master technologist.
Q9: According to standard radiation protection guidelines, what specific material is
utilized to provide inherent and added filtration in the diagnostic x-ray tube to reduce
low-energy, non-diagnostic patient skin dose? A) Lead B) Tungsten C) Aluminum D)
Molybdenum
● The Answer: C) Aluminum
● Distractor Analysis: Lead is used for protective apparel and barriers. Tungsten is the
target material for x-ray production. Molybdenum is used in mammography targets, not
standard general diagnostic filtration.
● The Mentor's Analysis: Aluminum (Z=13) effectively absorbs low-energy bremsstrahlung
x-rays that contribute heavily to patient entrance skin dose without penetrating to the
