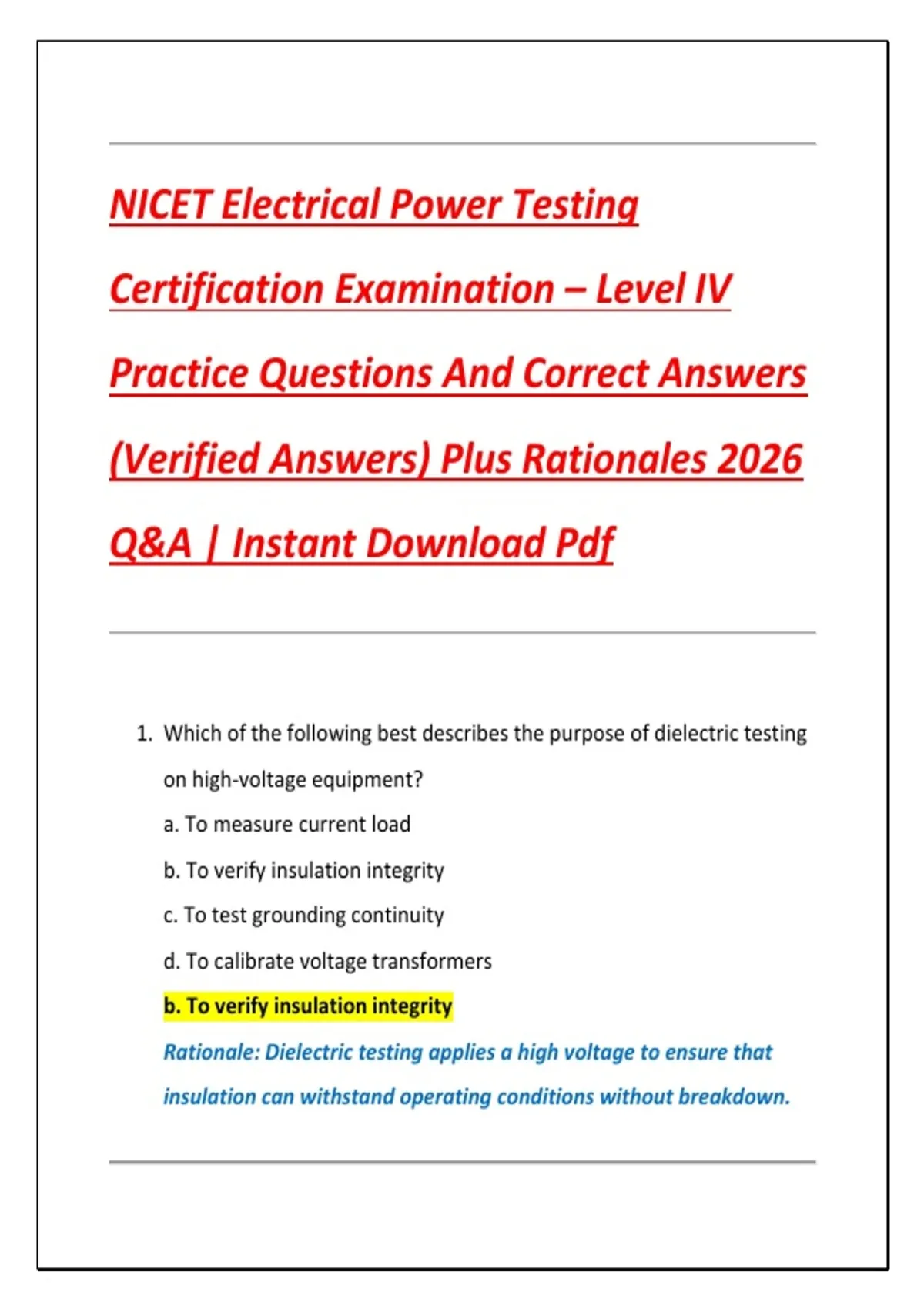

NICET Electrical Power Testing
Certification Examination – Level IV
Practice Questions And Correct Answers
(Verified Answers) Plus Rationales 2026
Q&A | Instant Download Pdf
1. Which of the following best describes the purpose of dielectric testing
on high-voltage equipment?
a. To measure current load
b. To verify insulation integrity
c. To test grounding continuity
d. To calibrate voltage transformers
b. To verify insulation integrity
Rationale: Dielectric testing applies a high voltage to ensure that
insulation can withstand operating conditions without breakdown.
,2. What is the primary goal of infrared thermography in electrical power
testing?
a. To measure resistance
b. To detect hot spots
c. To test insulation dielectric strength
d. To perform load testing
b. To detect hot spots
Rationale: Infrared thermography identifies abnormal heating,
indicating potential faults or loose connections.
3. During a transformer turns ratio test, the measured ratio differs from
the nameplate ratio by 5%. What does this indicate?
a. The transformer is operating normally
b. The transformer may have a winding fault
c. The load is too high
d. The voltage rating is incorrect
b. The transformer may have a winding fault
Rationale: Significant deviations in the turns ratio suggest possible
shorted turns or winding issues.
4. When performing a power factor test on a transformer, a high power
factor reading indicates:
a. Excellent insulation
, b. Degraded insulation
c. Low load
d. Normal operation
b. Degraded insulation
Rationale: A high power factor indicates increased dielectric losses,
typically due to insulation deterioration.
5. Which of the following instruments is best suited for partial discharge
testing?
a. Megohmmeter
b. Oscilloscope with HFCT
c. Clamp ammeter
d. Digital multimeter
b. Oscilloscope with HFCT
Rationale: Partial discharge testing requires detection of high-
frequency pulses, which is achieved using an oscilloscope with high-
frequency current transformer (HFCT).
6. What is the recommended sequence for performing electrical tests on
newly installed switchgear?
a. Visual inspection, insulation resistance, functional test
b. Functional test, visual inspection, insulation resistance
c. Insulation resistance, functional test, visual inspection
, d. Visual inspection, functional test, insulation resistance
a. Visual inspection, insulation resistance, functional test
Rationale: Start with visual inspection to identify obvious issues,
followed by insulation testing, and finally functional verification.
7. Which test is primarily used to detect inter-turn shorts in a
transformer?
a. Power factor test
b. Turns ratio test
c. Sweep frequency response analysis (SFRA)
d. Insulation resistance test
c. Sweep frequency response analysis (SFRA)
Rationale: SFRA compares the transformer’s frequency response to
detect mechanical or electrical winding changes, including inter-turn
shorts.
8. While conducting a contact resistance test on a circuit breaker, the
measured resistance is higher than expected. This could indicate:
a. Proper breaker operation
b. Loose or corroded connections
c. Low insulation resistance
d. Normal variation
b. Loose or corroded connections
