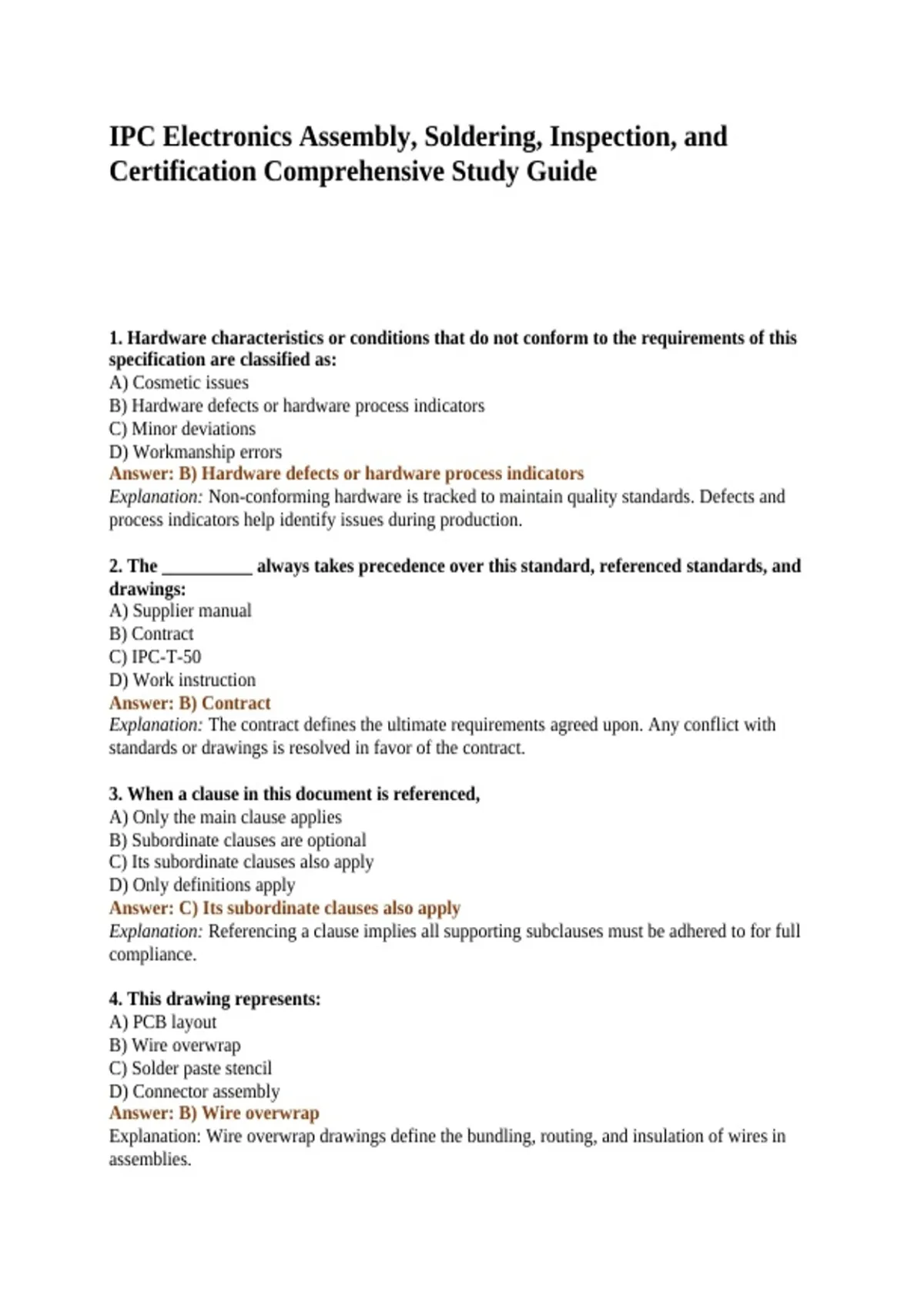

IPC Electronics Assembly, Soldering, Inspection, and
Certification Comprehensive Study Guide
1. Hardware characteristics or conditions that do not conform to the requirements of this
specification are classified as:
A) Cosmetic issues
B) Hardware defects or hardware process indicators
C) Minor deviations
D) Workmanship errors
Answer: B) Hardware defects or hardware process indicators
Explanation: Non-conforming hardware is tracked to maintain quality standards. Defects and
process indicators help identify issues during production.
2. The __________ always takes precedence over this standard, referenced standards, and
drawings:
A) Supplier manual
B) Contract
C) IPC-T-50
D) Work instruction
Answer: B) Contract
Explanation: The contract defines the ultimate requirements agreed upon. Any conflict with
standards or drawings is resolved in favor of the contract.
3. When a clause in this document is referenced,
A) Only the main clause applies
B) Subordinate clauses are optional
C) Its subordinate clauses also apply
D) Only definitions apply
Answer: C) Its subordinate clauses also apply
Explanation: Referencing a clause implies all supporting subclauses must be adhered to for full
compliance.
4. This drawing represents:
A) PCB layout
B) Wire overwrap
C) Solder paste stencil
D) Connector assembly
Answer: B) Wire overwrap
Explanation: Wire overwrap drawings define the bundling, routing, and insulation of wires in
assemblies.
,5. During an audit, an employee is found using tobacco products in the work area. This
would be:
A) Minor violation
B) D1D2D3
C) Reportable, but not critical
D) Non-actionable
Answer: B) D1D2D3
Explanation: Tobacco use in work areas violates safety and quality protocols, documented under
D1D2D3 classification.
6. The IPC-T-50 document provides:
A) Quality inspection guidelines
B) Soldering standards
C) Terms and definitions
D) Assembly instructions
Answer: C) Terms and definitions
Explanation: IPC-T-50 is the standard glossary for electronics manufacturing terminology. It
ensures all personnel use consistent language.
7. Solder alloys shall be in accordance with J-STD- ____ or equivalent:
A) 001
B) 004
C) 006
D) 008
Answer: C) 006
Explanation: J-STD-006 specifies solder alloy composition, melting point, and material
requirements to ensure reliable solder joints.
8. A solder connection that appears dull, matte, satin, gray, or grainy and is normal for the
material or process involved is considered:
A) Defective
B) Acceptable
C) Reworkable
D) Scrap
Answer: B) Acceptable
Explanation: Visual appearance alone does not determine solder quality if the joint meets
material and process standards.
9. All IPC certification programs for MIT, CIT, and CIS require re-certification after what
period of time?:
A) 1 year
B) 2 years
C) 3 years
D) 5 years
Answer: B) 2 years
, Explanation: Re-certification ensures technicians maintain current knowledge of standards and
practices.
10. Component damage that exposes the component substrate or active element or affects
structural integrity is:
A) Cosmetic defect
B) D1D2D3
C) Acceptable
D) Minor issue
Answer: B) D1D2D3
Explanation: Serious component damage is classified under D1D2D3 because it affects safety
and functionality.
11. Any violation of minimum electrical clearance as a result of conformance to defined
criteria is a ______ condition:
A) Minor deviation
B) Defect
C) Acceptable variance
D) Cosmetic defect
Answer: B) Defect
Explanation: Electrical clearance violations can cause shorts or system failures and are
considered defects.
12. What is the primary purpose of flux in soldering?
A) Reduce solder melting temperature
B) Remove oxides and promote wetting
C) Provide structural support
D) Insulate the joint
Answer: B) Remove oxides and promote wetting
Explanation: Flux cleans metal surfaces and enhances solder flow, ensuring reliable joints.
13. Which IPC standard specifies the requirements for soldering of electronic assemblies?
A) IPC-A-610
B) IPC-J-STD-001
C) IPC-T-50
D) IPC-2221
Answer: B) IPC-J-STD-001
Explanation: J-STD-001 provides detailed soldering and assembly requirements to ensure
electrical and mechanical reliability.
14. During visual inspection, a solder joint shows a visible crack. This is classified as:
A) Minor defect
B) Major defect
C) Acceptable
D) Cosmetic variation
