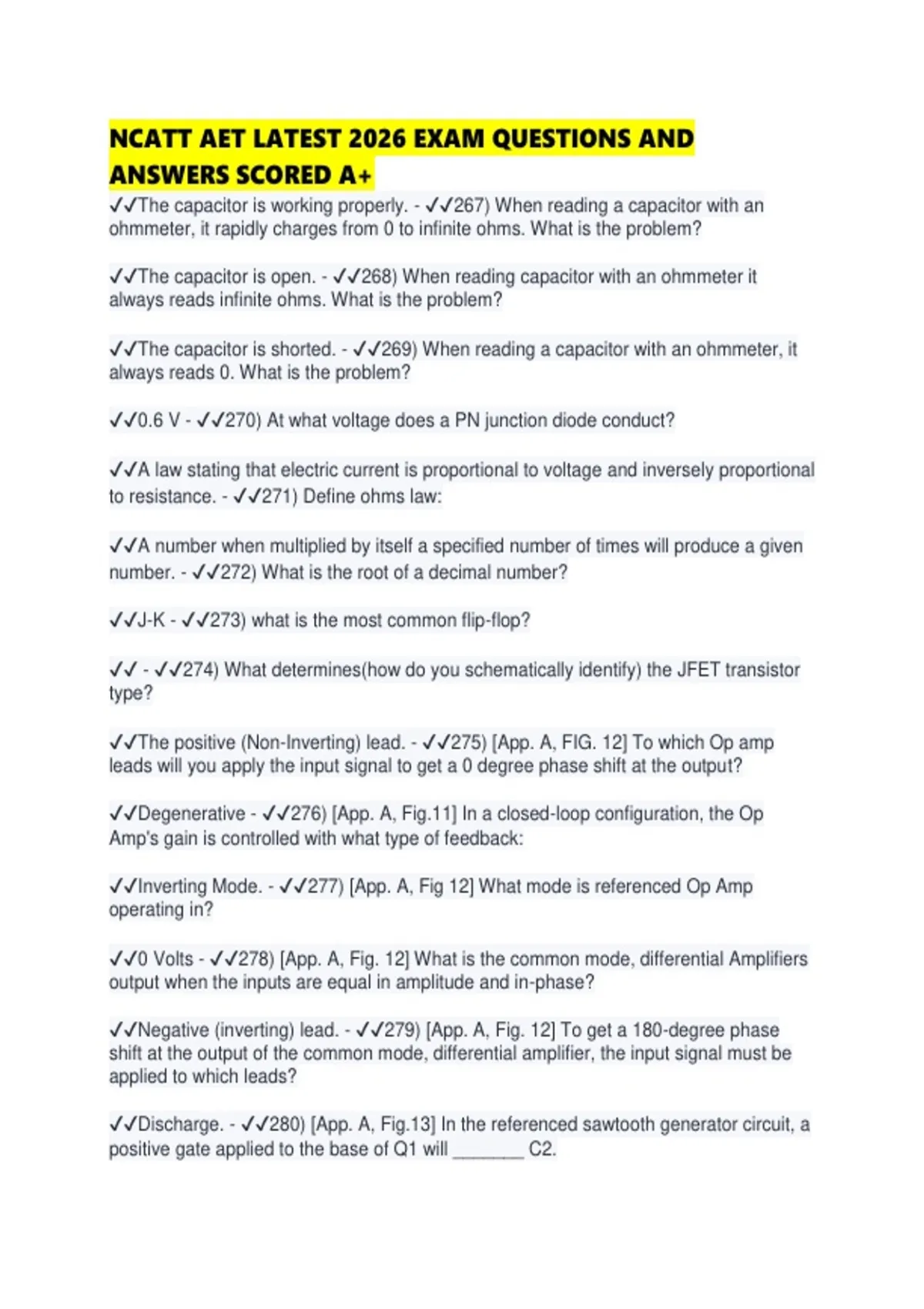

NCATT AET LATEST 2026 EXAM QUESTIONS AND
ANSWERS SCORED A+
✔✔The capacitor is working properly. - ✔✔267) When reading a capacitor with an
ohmmeter, it rapidly charges from 0 to infinite ohms. What is the problem?
✔✔The capacitor is open. - ✔✔268) When reading capacitor with an ohmmeter it
always reads infinite ohms. What is the problem?
✔✔The capacitor is shorted. - ✔✔269) When reading a capacitor with an ohmmeter, it
always reads 0. What is the problem?
✔✔0.6 V - ✔✔270) At what voltage does a PN junction diode conduct?
✔✔A law stating that electric current is proportional to voltage and inversely proportional
to resistance. - ✔✔271) Define ohms law:
✔✔A number when multiplied by itself a specified number of times will produce a given
number. - ✔✔272) What is the root of a decimal number?
✔✔J-K - ✔✔273) what is the most common flip-flop?
✔✔ - ✔✔274) What determines(how do you schematically identify) the JFET transistor
type?
✔✔The positive (Non-Inverting) lead. - ✔✔275) [App. A, FIG. 12] To which Op amp
leads will you apply the input signal to get a 0 degree phase shift at the output?
✔✔Degenerative - ✔✔276) [App. A, Fig.11] In a closed-loop configuration, the Op
Amp's gain is controlled with what type of feedback:
✔✔Inverting Mode. - ✔✔277) [App. A, Fig 12] What mode is referenced Op Amp
operating in?
✔✔0 Volts - ✔✔278) [App. A, Fig. 12] What is the common mode, differential Amplifiers
output when the inputs are equal in amplitude and in-phase?
✔✔Negative (inverting) lead. - ✔✔279) [App. A, Fig. 12] To get a 180-degree phase
shift at the output of the common mode, differential amplifier, the input signal must be
applied to which leads?
✔✔Discharge. - ✔✔280) [App. A, Fig.13] In the referenced sawtooth generator circuit, a
positive gate applied to the base of Q1 will _______ C2.
