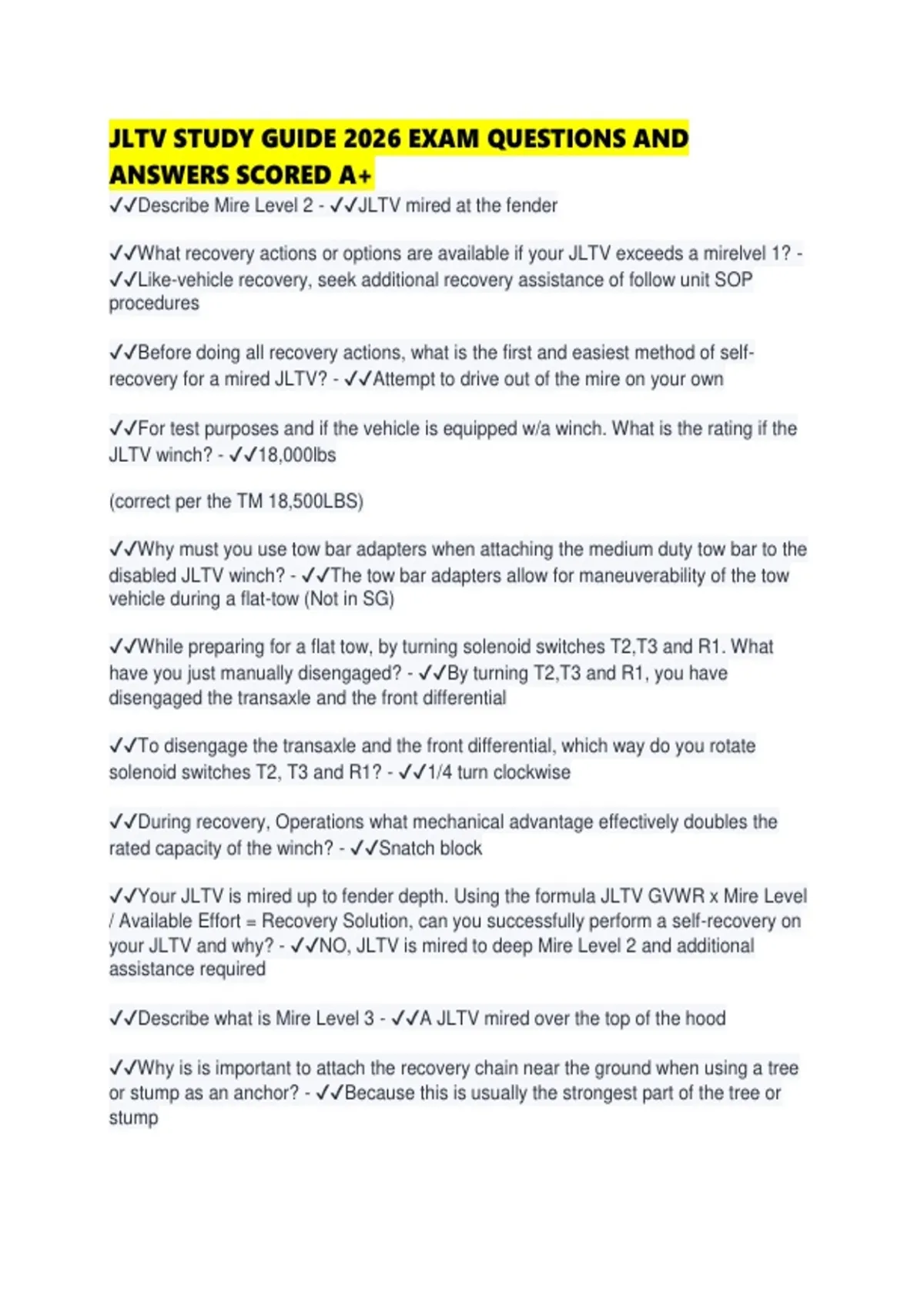

JLTV STUDY GUIDE 2026 EXAM QUESTIONS AND
ANSWERS SCORED A+
✔✔Describe Mire Level 2 - ✔✔JLTV mired at the fender
✔✔What recovery actions or options are available if your JLTV exceeds a mirelvel 1? -
✔✔Like-vehicle recovery, seek additional recovery assistance of follow unit SOP
procedures
✔✔Before doing all recovery actions, what is the first and easiest method of self-
recovery for a mired JLTV? - ✔✔Attempt to drive out of the mire on your own
✔✔For test purposes and if the vehicle is equipped w/a winch. What is the rating if the
JLTV winch? - ✔✔18,000lbs
(correct per the TM 18,500LBS)
✔✔Why must you use tow bar adapters when attaching the medium duty tow bar to the
disabled JLTV winch? - ✔✔The tow bar adapters allow for maneuverability of the tow
vehicle during a flat-tow (Not in SG)
✔✔While preparing for a flat tow, by turning solenoid switches T2,T3 and R1. What
have you just manually disengaged? - ✔✔By turning T2,T3 and R1, you have
disengaged the transaxle and the front differential
✔✔To disengage the transaxle and the front differential, which way do you rotate
solenoid switches T2, T3 and R1? - ✔✔1/4 turn clockwise
✔✔During recovery, Operations what mechanical advantage effectively doubles the
rated capacity of the winch? - ✔✔Snatch block
✔✔Your JLTV is mired up to fender depth. Using the formula JLTV GVWR x Mire Level
/ Available Effort = Recovery Solution, can you successfully perform a self-recovery on
your JLTV and why? - ✔✔NO, JLTV is mired to deep Mire Level 2 and additional
assistance required
✔✔Describe what is Mire Level 3 - ✔✔A JLTV mired over the top of the hood
✔✔Why is is important to attach the recovery chain near the ground when using a tree
or stump as an anchor? - ✔✔Because this is usually the strongest part of the tree or
stump
, ✔✔When operating the JLTV winch, why is it important to "cycle" the winch motor? -
✔✔Cycling the winch motor prevents the motor from overheating. Cycling the winch
motor prevents free-spooling.
✔✔How long should you engage the winch motor? - ✔✔Engage the winch motor in 5 to
10 seconds intervals
✔✔Know what solenoid switches as disengaged or engaged for a flat-tow. - ✔✔
✔✔What are the two types of air lines used for flat towing? - ✔✔Emergency air lines-
RED
Service air lines-BLUE
✔✔Do you love me? - ✔✔Yes
✔✔Is Ana the most gorgeous human being ever ? - ✔✔Yes
✔✔Will I give Ana some Dick next time I see her - ✔✔YES
✔✔ What are the 2 Dr Variant ? - ✔✔UTL-2 Dr.
✔✔What are the 4 Dr Variants? - ✔✔GP, HGC, CCWC-4 Dr
✔✔What are the 4 mission configurations? - ✔✔UTL, HGC, CCWC, GP
✔✔Identify the Configurations;
UTL-2 dr w/cargo bed, Spare tire inside the bed
a.) GP-4 Dr
b.) HGC-4 Dr
c.) CCWC-4 Dr - ✔✔a.) w/soft cargo canvas used for troop and small cargo. Might have
a turret.
b.) w/soft cargo canvas. Mount crew served weapons.
c.) W/hard covered box.. Used for TOW missile system.
✔✔Why do High Pressure Gas (HPG) pumps automatically stop running after running
continuously for 10 minutes? What light illuminates? - ✔✔To prevent the system from
overheating. SPNSN ERROR light.
Pg.14
✔✔The Transaxle recieves power from where? - ✔✔Transmission
