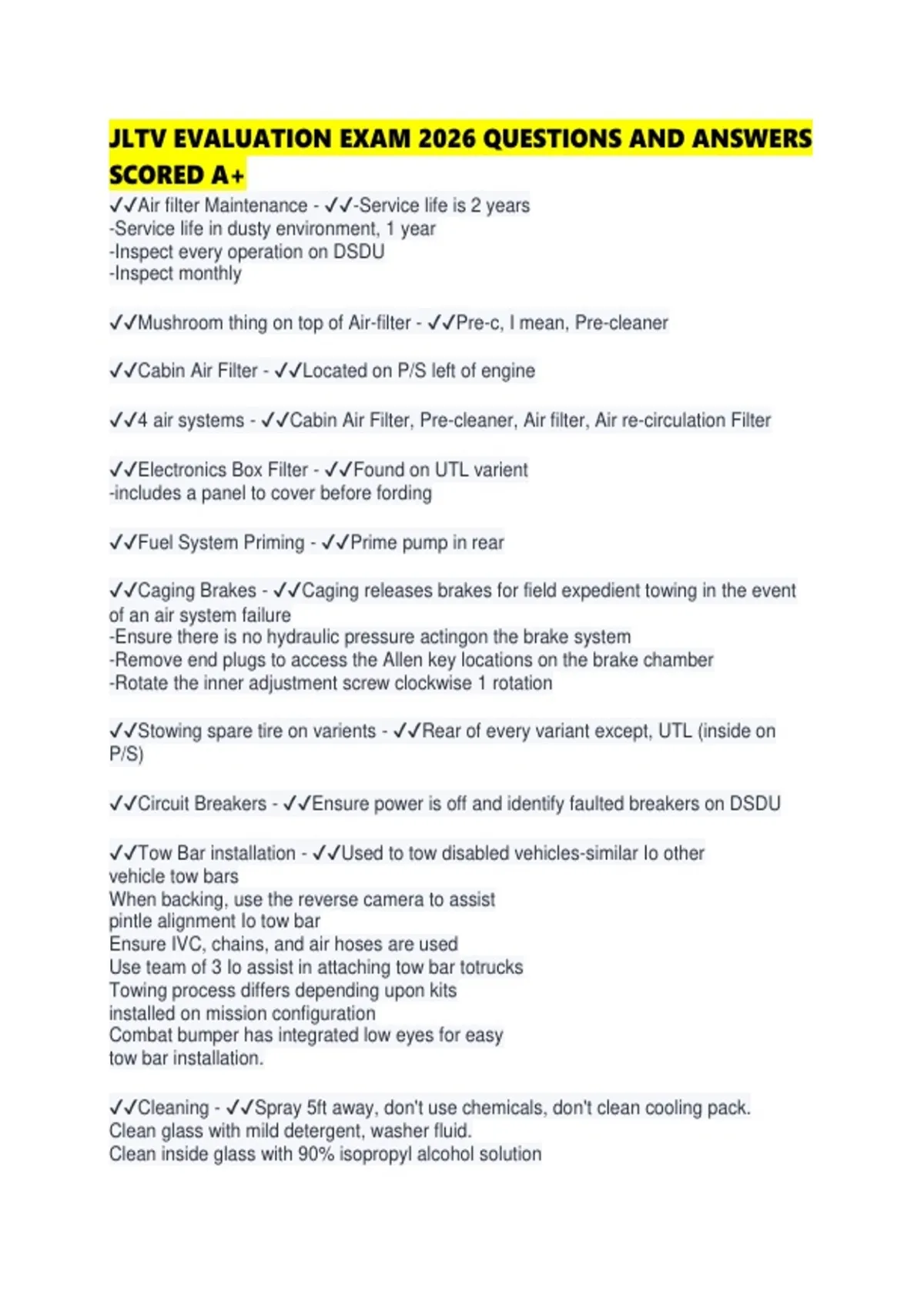

JLTV EVALUATION EXAM 2026 QUESTIONS AND ANSWERS
SCORED A+
✔✔Air filter Maintenance - ✔✔-Service life is 2 years
-Service life in dusty environment, 1 year
-Inspect every operation on DSDU
-Inspect monthly
✔✔Mushroom thing on top of Air-filter - ✔✔Pre-c, I mean, Pre-cleaner
✔✔Cabin Air Filter - ✔✔Located on P/S left of engine
✔✔4 air systems - ✔✔Cabin Air Filter, Pre-cleaner, Air filter, Air re-circulation Filter
✔✔Electronics Box Filter - ✔✔Found on UTL varient
-includes a panel to cover before fording
✔✔Fuel System Priming - ✔✔Prime pump in rear
✔✔Caging Brakes - ✔✔Caging releases brakes for field expedient towing in the event
of an air system failure
-Ensure there is no hydraulic pressure actingon the brake system
-Remove end plugs to access the Allen key locations on the brake chamber
-Rotate the inner adjustment screw clockwise 1 rotation
✔✔Stowing spare tire on varients - ✔✔Rear of every variant except, UTL (inside on
P/S)
✔✔Circuit Breakers - ✔✔Ensure power is off and identify faulted breakers on DSDU
✔✔Tow Bar installation - ✔✔Used to tow disabled vehicles-similar Io other
vehicle tow bars
When backing, use the reverse camera to assist
pintle alignment Io tow bar
Ensure IVC, chains, and air hoses are used
Use team of 3 Io assist in attaching tow bar totrucks
Towing process differs depending upon kits
installed on mission configuration
Combat bumper has integrated low eyes for easy
tow bar installation.
✔✔Cleaning - ✔✔Spray 5ft away, don't use chemicals, don't clean cooling pack.
Clean glass with mild detergent, washer fluid.
Clean inside glass with 90% isopropyl alcohol solution
, ✔✔Engine cleaning - ✔✔3-5ft away from engine
Use air for sensitive locations
✔✔Long term transport - ✔✔-Store vehicles close together
-Remove any grease or oil from tires
-Keep tires from direct sunlight
-inspect JLTV regularly
-Install suspension lock out braces
-Drain air
✔✔Transport modes - ✔✔-Tie-down
-Loading
-Sea
-Air
-Rail
✔✔Winch payload w/out snatchblock - ✔✔18,000 lbs.
✔✔Unservicable inventory - ✔✔Mark "x" and report to field maintenance
✔✔Suspension Parts - ✔✔High Pressure Gas Pumps(shocks)
Hydraulic Dampenings
✔✔ Models of JLTV - ✔✔General Purpose, Heavy Guns Carrier, Close Combat
Weapon Carrier, Utility
✔✔Average Gross Vehicle Weight - ✔✔22,500 lb.
✔✔Payload of GP, HGC & CCWC - ✔✔3, 500 lbs.
✔✔Payload of UTL - ✔✔5, 000 lbs.
✔✔Acceıeration - ✔✔0-30 mph in 7. 4 seconds
0-50mph in 18. 3seconds
✔✔Range - ✔✔300 miles at 35 mph at GVW
✔✔Lane Change Speed - ✔✔53 mph
✔✔Side Slope Max - ✔✔40 degress
✔✔Approaching Slopes - ✔✔60 degrees
✔✔Engine - ✔✔6.6 Liter Banks 866T
