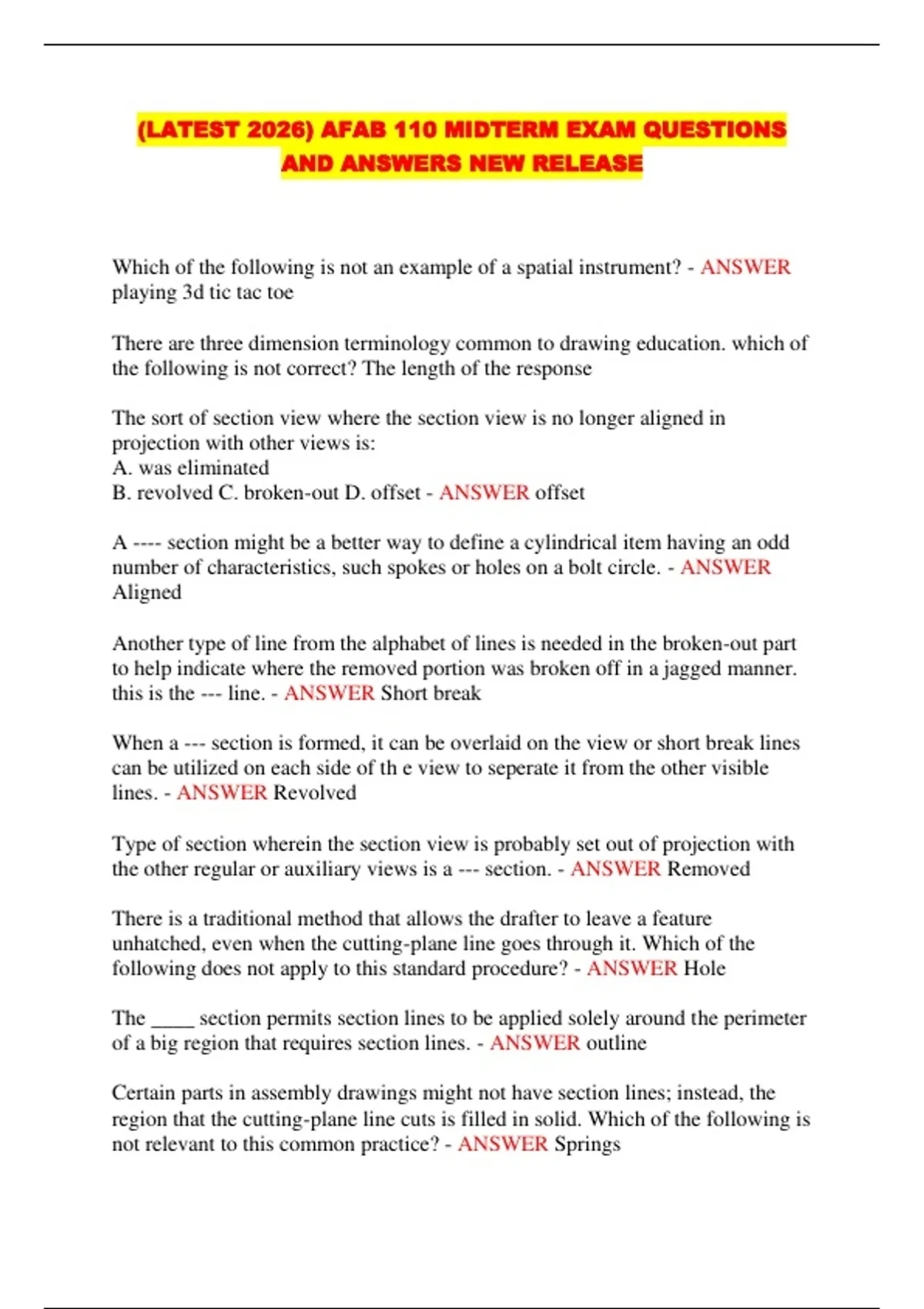

Which of the following is not an example of a spatial instrument? - ANSWER
playing 3d tic tac toe
There are three dimension terminology common to drawing education. which of
the following is not correct? The length of the response
The sort of section view where the section view is no longer aligned in
projection with other views is:
A. was eliminated
B. revolved C. broken-out D. offset - ANSWER offset
A ---- section might be a better way to define a cylindrical item having an odd
number of characteristics, such spokes or holes on a bolt circle. - ANSWER
Aligned
Another type of line from the alphabet of lines is needed in the broken-out part
to help indicate where the removed portion was broken off in a jagged manner.
this is the --- line. - ANSWER Short break
When a --- section is formed, it can be overlaid on the view or short break lines
can be utilized on each side of th e view to seperate it from the other visible
lines. - ANSWER Revolved
Type of section wherein the section view is probably set out of projection with
the other regular or auxiliary views is a --- section. - ANSWER Removed
There is a traditional method that allows the drafter to leave a feature
unhatched, even when the cutting-plane line goes through it. Which of the
following does not apply to this standard procedure? - ANSWER Hole
The ____ section permits section lines to be applied solely around the perimeter
of a big region that requires section lines. - ANSWER outline
Certain parts in assembly drawings might not have section lines; instead, the
region that the cutting-plane line cuts is filled in solid. Which of the following is
not relevant to this common practice? - ANSWER Springs
