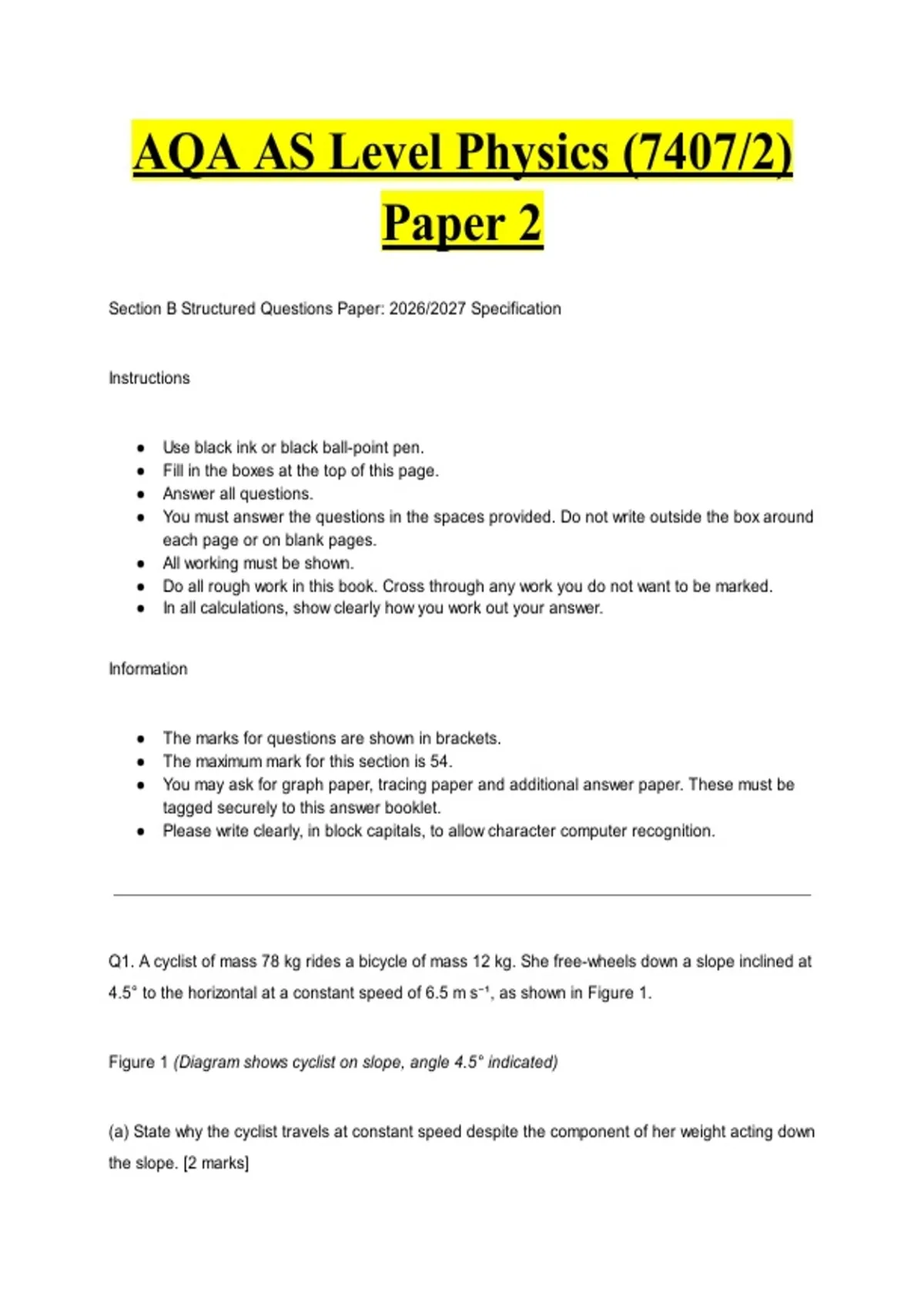

AQA AS Level Physics (7407/2)
Paper 2
Section B Structured Questions Paper: 2026/2027 Specification
Instructions
● Use black ink or black ball-point pen.
● Fill in the boxes at the top of this page.
● Answer all questions.
● You must answer the questions in the spaces provided. Do not write outside the box around
each page or on blank pages.
● All working must be shown.
● Do all rough work in this book. Cross through any work you do not want to be marked.
● In all calculations, show clearly how you work out your answer.
Information
● The marks for questions are shown in brackets.
● The maximum mark for this section is 54.
● You may ask for graph paper, tracing paper and additional answer paper. These must be
tagged securely to this answer booklet.
● Please write clearly, in block capitals, to allow character computer recognition.
Q1. A cyclist of mass 78 kg rides a bicycle of mass 12 kg. She free-wheels down a slope inclined at
4.5° to the horizontal at a constant speed of 6.5 m s⁻¹, as shown in Figure 1.
Figure 1 (Diagram shows cyclist on slope, angle 4.5° indicated)
(a) State why the cyclist travels at constant speed despite the component of her weight acting down
the slope. [2 marks]
,(b) She stops pedalling and applies the brakes, bringing the bicycle to rest from a speed of 6.5 m
s⁻¹ in a distance of 8.2 m.
Calculate the average braking force required. Assume the resistive forces remain constant at 25 N.
[5 marks]
Q2. Figure 2 shows stress-strain graphs for two materials, X and Y, up to fracture.
Figure 2 (Graph: Stress (MPa) vs Strain. Material X: steep linear then fracture at ~2% strain.
Material Y: less steep linear, yield point at ~1%, plastic deformation to ~15% strain then fracture)
(a) State the meaning of the term ultimate tensile strength. [2 marks]
(b) A structural engineer must select a material for a bridge support that must withstand high static
loads but undergo visible deformation before fracture to provide warning of failure.
Determine, with reference to the graphs, which material is more suitable. Calculate the Young’s
modulus for your chosen material. [5 marks]
Q3. A student investigates the properties of a cell of unknown EMF and internal resistance. She
connects the cell in series with a variable resistor and an ammeter. A voltmeter is connected across
the cell. She obtains the following data:
TableCopy
, Current I / Terminal p.d. V /
mA V
0 1.52
20 1.45
40 1.38
60 1.31
80 1.24
(a) State the relationship between EMF (ε), terminal potential difference (V), current (I) and internal
resistance (r). [2 marks]
(b) Plot a graph of V against I on the grid provided. Determine the EMF and internal resistance of
the cell. [4 marks]
(Graph grid provided: V from 1.0 to 1.6 V, I from 0 to 100 mA)
