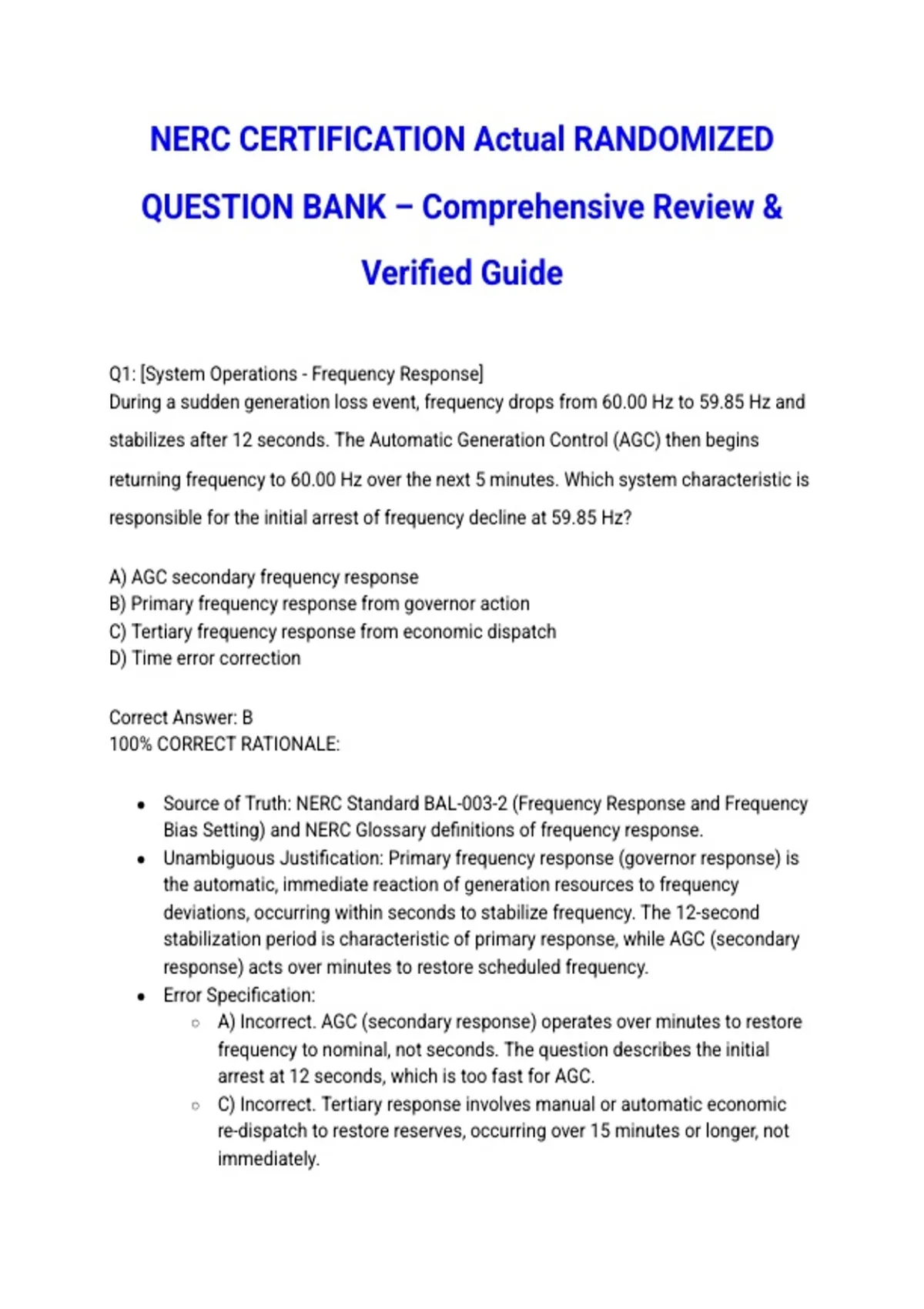

NERC CERTIFICATION Actual RANDOMIZED
QUESTION BANK – Comprehensive Review &
Verified Guide
Q1: [System Operations - Frequency Response]
During a sudden generation loss event, frequency drops from 60.00 Hz to 59.85 Hz and
stabilizes after 12 seconds. The Automatic Generation Control (AGC) then begins
returning frequency to 60.00 Hz over the next 5 minutes. Which system characteristic is
responsible for the initial arrest of frequency decline at 59.85 Hz?
A) AGC secondary frequency response
B) Primary frequency response from governor action
C) Tertiary frequency response from economic dispatch
D) Time error correction
Correct Answer: B
100% CORRECT RATIONALE:
● Source of Truth: NERC Standard BAL-003-2 (Frequency Response and Frequency
Bias Setting) and NERC Glossary definitions of frequency response.
● Unambiguous Justification: Primary frequency response (governor response) is
the automatic, immediate reaction of generation resources to frequency
deviations, occurring within seconds to stabilize frequency. The 12-second
stabilization period is characteristic of primary response, while AGC (secondary
response) acts over minutes to restore scheduled frequency.
● Error Specification:
○ A) Incorrect. AGC (secondary response) operates over minutes to restore
frequency to nominal, not seconds. The question describes the initial
arrest at 12 seconds, which is too fast for AGC.
○ C) Incorrect. Tertiary response involves manual or automatic economic
re-dispatch to restore reserves, occurring over 15 minutes or longer, not
immediately.
, ○ D) Incorrect. Time error correction is a slow integral control used to
correct accumulated time deviations, not for immediate frequency
stabilization following a disturbance.
Q2: [NERC Standards - CIP cybersecurity]
Under CIP-007-6 (System Management), which of the following is explicitly required for
transient cyber assets (TCAs) prior to connecting to the Bulk Electric System (BES)
Cyber System?
A) Permanent installation of host-based intrusion detection systems
B) Review and validation of vendor remote access software
C) One-way communication diodes for all data egress
D) Physical destruction of the device after each use
Correct Answer: B
100% CORRECT RATIONALE:
● Source of Truth: NERC Standard CIP-007-6, Requirement R1 (Transient Cyber
Assets).
● Unambiguous Justification: CIP-007-6 R1.2 requires Responsible Entities to
"review and validate the risk mitigation plans for vendor remote access sessions"
and verify that transient cyber assets do not introduce vulnerabilities. This
includes validating software and access methods before connection.
● Error Specification:
○ A) Incorrect. While strong security practices, permanent installation of
intrusion detection on temporary/transient devices is not an explicit
requirement of CIP-007-6 R1.
○ C) Incorrect. One-way diodes are specific security controls for certain
high-security environments but are not universally required for all TCAs
under CIP-007-6.
○ D) Incorrect. Physical destruction is not required; sanitization and proper
procedure are required, but destruction would be impractical and is not
mandated.
Q3: [Definitions - Entity Roles]
,Which entity is responsible for integrating resource plans ahead of time and evaluating
resource adequacy for its area over a one-to-five-year horizon?
A) Reliability Coordinator (RC)
B) Balancing Authority (BA)
C) Transmission Operator (TOP)
D) Planning Coordinator (PC)
Correct Answer: D
100% CORRECT RATIONALE:
● Source of Truth: NERC Glossary of Terms - Definition of "Planning Coordinator"
and NERC Standard BAL-017.
● Unambiguous Justification: The Planning Coordinator (PC) is explicitly defined as
the entity responsible for coordinating and evaluating resource adequacy over
the near-term (1-5 years) and long-term planning horizons, including integration
of demand forecasts and resource plans.
● Error Specification:
○ A) Incorrect. The Reliability Coordinator operates in real-time and next-day
timeframes, ensuring wide-area reliability during operations, not multi-year
resource adequacy planning.
○ B) Incorrect. The Balancing Authority manages real-time energy balance
and frequency regulation, not long-term resource adequacy assessment.
○ C) Incorrect. The Transmission Operator manages real-time transmission
system operations and local reliability, not resource adequacy planning.
Q4: [Analysis Tools - TODF Calculation]
A Transmission Outage Distribution Factor (TODF) study indicates that for the outage of
Line X, 40% of the power will shift to Line Y. Line X is currently carrying 800 MW. Line Y
has a current loading of 600 MW and an emergency rating of 1500 MW. What will be
Line Y's post-outage loading percentage relative to its emergency rating?
A) 40%
B) 81.3%
C) 93.3%
D) 133.3%
, Correct Answer: B
100% CORRECT RATIONALE:
● Source of Truth: NERC Reliability Coordinator certification study materials and
transmission planning principles regarding TODF calculations.
● Unambiguous Justification: TODF indicates the percentage of the outaged line's
flow that shifts to the monitored line. Calculation: 40% of 800 MW = 320 MW
shift. Line Y new loading = 600 MW + 320 MW = 920 MW. Percentage =
(920/1500) × 100 = 81.3%.
● Error Specification:
○ A) Incorrect. This represents only the TODF percentage itself, not the
calculated loading on Line Y.
○ C) Incorrect. This appears to calculate (600 + 800)/1500 = 93.3%,
erroneously adding the full Line X flow instead of just the shifted portion
(40%).
○ D) Incorrect. This represents (800+600)/1500 without understanding that
only 40% of Line X's flow shifts, not 100%.
Q5: [System Operations - IROL Violation Response]
As a Reliability Coordinator, your Real-Time Assessment indicates a critical flowgate
has reached 103% of its Interconnection Reliability Operating Limit (IROL). The
responsible Transmission Operator has not responded to your notification within 15
minutes. Per IRO-008, what is your mandatory next action?
A) Continue monitoring until the TOP responds, as they have operational control
B) Issue an Operational Order to the responsible Balancing Authority to immediately
re-dispatch generation to relieve the violation
C) Declare an Energy Emergency Alert (EEA) Level 1
D) File a Notice of Penalty (NOP) with the Regional Entity
Correct Answer: B
100% CORRECT RATIONALE:
● Source of Truth: NERC Standard IRO-008-2 (Reliability Coordinator Analysis),
Requirement R2.
