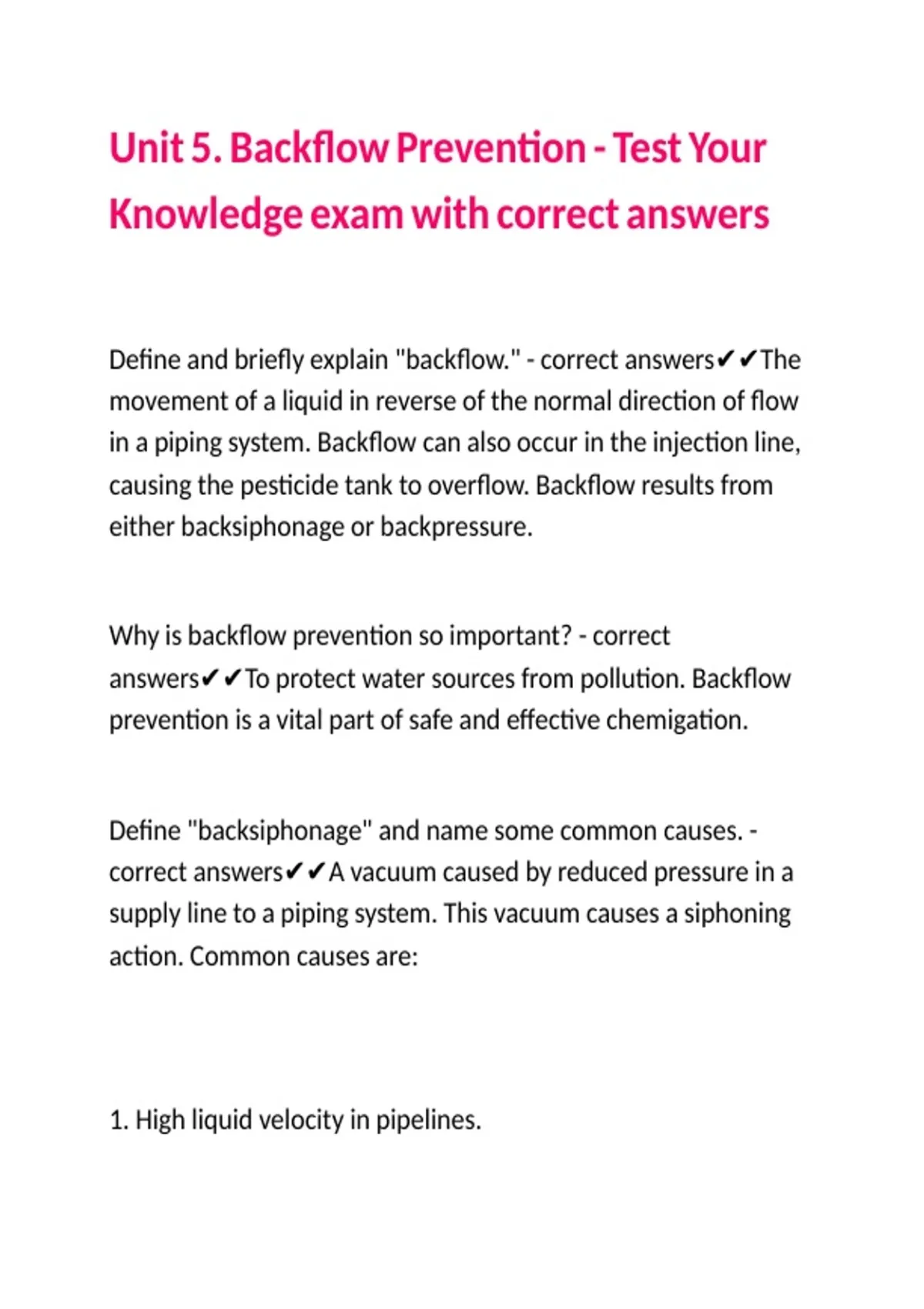

Unit 5. Backflow Prevention - Test Your ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
Knowledge exam with correct answers ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
Define and briefly explain "backflow." - correct answers✔✔The
||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
movement of a liquid in reverse of the normal direction of flow ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
in a piping system. Backflow can also occur in the injection line,
||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
causing the pesticide tank to overflow. Backflow results from ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
either backsiphonage or backpressure.
||\\||\\ ||\\||\\ ||\\||\\
Why is backflow prevention so important? - correct
||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
answers✔✔To protect water sources from pollution. Backflow ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
prevention is a vital part of safe and effective chemigation. ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
Define "backsiphonage" and name some common causes. -
||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
correct answers✔✔A vacuum caused by reduced pressure in a ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
supply line to a piping system. This vacuum causes a siphoning
||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
action. Common causes are: ||\\||\\ ||\\||\\ ||\\||\\
1. High liquid velocity in pipelines.
||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
, 2. A line break or repair that is lower than a service point.
||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
3. Lowered main pressure due to a high rate of water
||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
withdrawal (ex. fire fighting). ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
4. Reduced supply pressure on the suction side of the booster
||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
pump.
Define "backpressure" and name some common causes. -
||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
correct answers✔✔A difference in pressure when a supply line
||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
is connected to a high-pressure system. If the system exceeds
||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
the operating pressure of the supply pipes, backpressure can
||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\ ||\\||\\
result. Common causes are: ||\\||\\ ||\\||\\ ||\\||\\
1. Booster pumps.
||\\||\\ ||\\||\\
