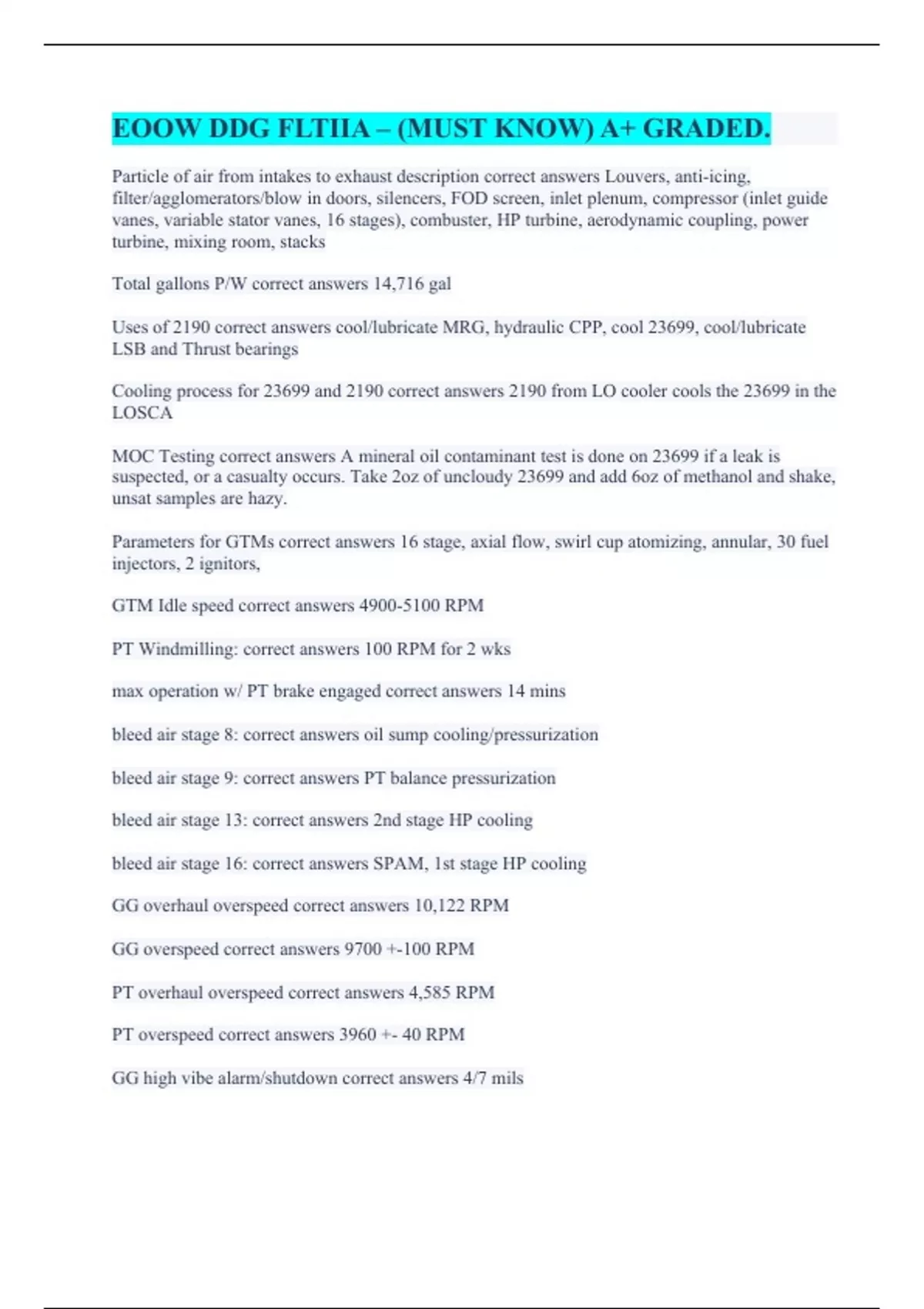

EOOW DDG FLTIIA – (MUST KNOW) A+ GRADED.
Particle of air from intakes to exhaust description correct answers Louvers, anti-icing, filter/agglomerators/blow in doors, silencers, FOD screen, inlet plenum, compressor (inlet guide vanes, variable stator vanes, 16 stages), combuster, HP turbine, aerodynamic coupling, power turbine, mixing room, stacks Total gallons P/W correct answers 14,716 gal Uses of 2190 correct answers cool/lubricate MRG, hydraulic CPP, cool 23699, cool/lubricate LSB and Thrust bearings Cooling process for 23699 and 2190 correct answers 2190 from LO cooler cools the 23699 in the LOSCA MOC Testing correct answers A mineral oil contaminant test is done on 23699 if a leak is suspected, or a casualty occurs. Take 2oz of uncloudy 23699 and add 6oz of methanol and shake, unsat samples are hazy. Parameters for GTMs correct answers 16 stage, axial flow, swirl cup atomizing, annular, 30 fuel injectors, 2 ignitors, GTM Idle speed correct answers RPM PT Windmilling: correct answers 100 RPM for 2 wks max operation w/ PT brake engaged correct answers 14 mins bleed air stage 8: correct answers oil sump cooling/pressurization bleed air stage 9: correct answers PT balance pressurization bleed air stage 13: correct answers 2nd stage HP cooling bleed air stage 16: correct answers SPAM, 1st stage HP cooling GG overhaul overspeed correct answers 10,122 RPM GG overspeed correct answers 9700 +-100 RPM PT overhaul overspeed correct answers 4,585 RPM PT overspeed correct answers 3960 +- 40 RPM GG high vibe alarm/shutdown correct answers 4/7 mils
