ECE3201 Spring 2026
Homework #1 Solution

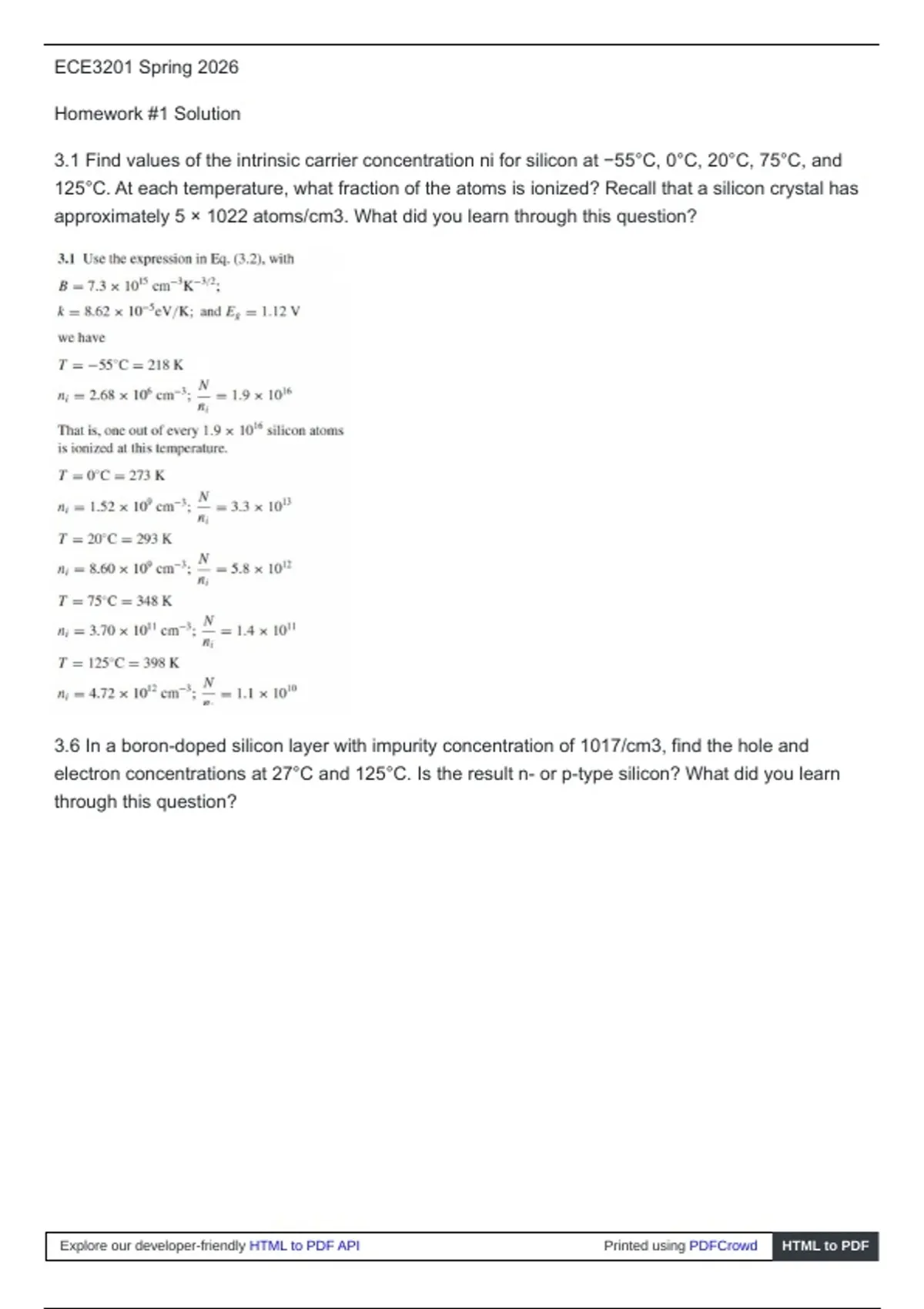

3.1 Find values of the intrinsic carrier concentration ni for silicon at −55°C, 0°C, 20°C, 75°C, and
125°C. At each temperature, what fraction of the atoms is ionized? Recall that a silicon crystal has
approximately 5 × 1022 atoms/cm3. What did you learn through this question?
3.6 In a boron-doped silicon layer with impurity concentration of 1017/cm3, find the hole and
electron concentrations at 27°C and 125°C. Is the result n- or p-type silicon? What did you learn
through this question?
