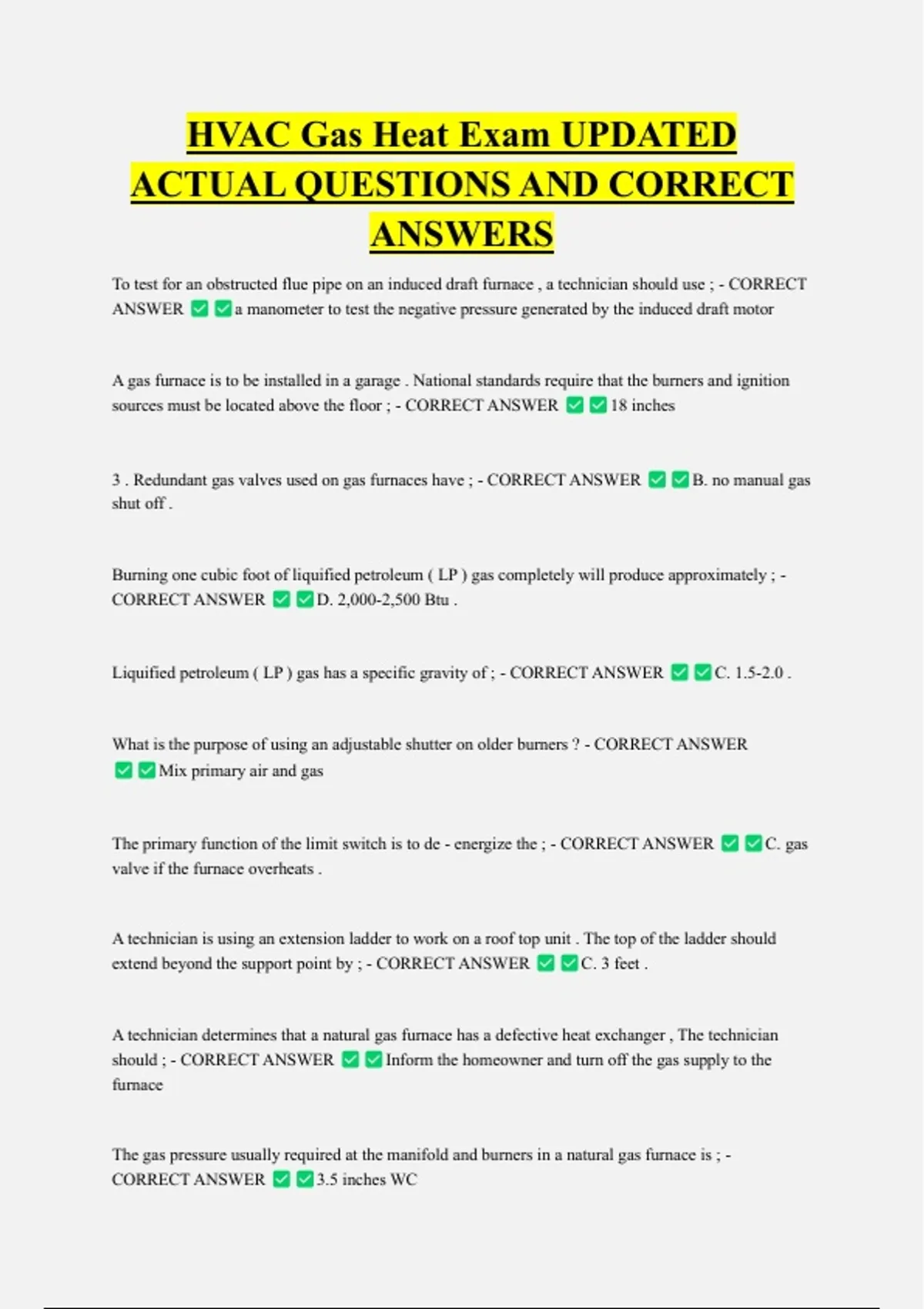

HVAC Gas Heat Exam UPDATED
ACTUAL QUESTIONS AND CORRECT
ANSWERS
To test for an obstructed flue pipe on an induced draft furnace , a technician should use ; - CORRECT
ANSWER a manometer to test the negative pressure generated by the induced draft motor
A gas furnace is to be installed in a garage . National standards require that the burners and ignition
sources must be located above the floor ; - CORRECT ANSWER 18 inches
3 . Redundant gas valves used on gas furnaces have ; - CORRECT ANSWER B. no manual gas
shut off .
Burning one cubic foot of liquified petroleum ( LP ) gas completely will produce approximately ; -
CORRECT ANSWER D. 2,000-2,500 Btu .
Liquified petroleum ( LP ) gas has a specific gravity of ; - CORRECT ANSWER C. 1.5-2.0 .
What is the purpose of using an adjustable shutter on older burners ? - CORRECT ANSWER
Mix primary air and gas
The primary function of the limit switch is to de - energize the ; - CORRECT ANSWER C. gas
valve if the furnace overheats .
A technician is using an extension ladder to work on a roof top unit . The top of the ladder should
extend beyond the support point by ; - CORRECT ANSWER C. 3 feet .
A technician determines that a natural gas furnace has a defective heat exchanger , The technician
should ; - CORRECT ANSWER Inform the homeowner and turn off the gas supply to the
furnace
The gas pressure usually required at the manifold and burners in a natural gas furnace is ; -
CORRECT ANSWER 3.5 inches WC
, The National Fuel Gas Code classifies a vent system for a condensing furnace as ; - CORRECT
ANSWER D. Category IV
The minimum distance Type - B vent pipe must be kept from combustible materials is ; - CORRECT
ANSWER D. one inch .
Typical condensing furnaces have an efficiency rating of at least ; - CORRECT ANSWER D.
90 % .
You have installed a Category IV , two - pipe vent system that terminates through the roof of the
residence . The elbow for the combustion air intake , above the roof , should ; - CORRECT ANSWER
point down .
The reason heating thermostats have anticipators or cycle rate adjustment is to - CORRECT
ANSWER reduce temperature swing .
Higher system efficiency is achieved in a category IV condensing furnace when the water vapor in the
flue gas condenses and releases ; - CORRECT ANSWER dioxide latent heat .
Natural gas consists primarily of ; - CORRECT ANSWER B. methane .
Burning one cubic foot of natural gas will produce approximately ; . - CORRECT ANSWER
900-1,100 Btu .
A furnace nameplate specifies a temperature rise of 40 to 70 degrees . Temperature measurements .
indicate a rise of 80 degrees . The most appropriate action is to ; - CORRECT ANSWER B.
increase fan speed .
A Btu is the amount of heat required to raise the temperature of one pound of water ; - CORRECT
ANSWER one - degree Fahrenheit .
Pressure drop in a natural gas piping system primarily occurs due to ; - CORRECT ANSWER
friction or resistance caused by the pipe and fittings installed in the piping system
