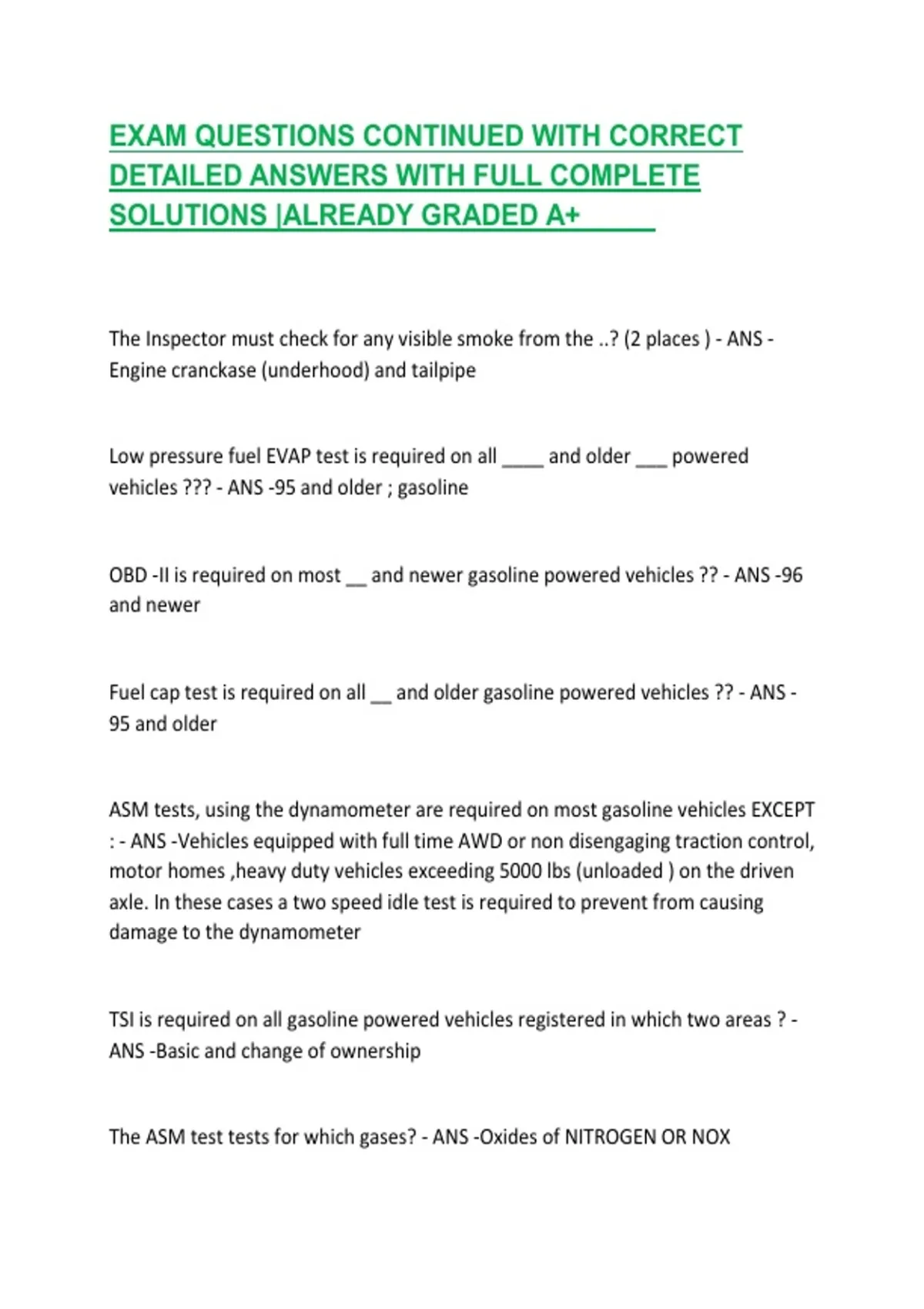

EXAM QUESTIONS CONTINUED WITH CORRECT
DETAILED ANSWERS WITH FULL COMPLETE
SOLUTIONS |ALREADY GRADED A+
The Inspector must check for any visible smoke from the ..? (2 places ) - ANS -
Engine cranckase (underhood) and tailpipe
Low pressure fuel EVAP test is required on all ____ and older ___ powered
vehicles ??? - ANS -95 and older ; gasoline
OBD -II is required on most __ and newer gasoline powered vehicles ?? - ANS -96
and newer
Fuel cap test is required on all __ and older gasoline powered vehicles ?? - ANS -
95 and older
ASM tests, using the dynamometer are required on most gasoline vehicles EXCEPT
: - ANS -Vehicles equipped with full time AWD or non disengaging traction control,
motor homes ,heavy duty vehicles exceeding 5000 lbs (unloaded ) on the driven
axle. In these cases a two speed idle test is required to prevent from causing
damage to the dynamometer
TSI is required on all gasoline powered vehicles registered in which two areas ? -
ANS -Basic and change of ownership
The ASM test tests for which gases? - ANS -Oxides of NITROGEN OR NOX
, What are the steps to preparing a vehicle for an ASM TEST? To load the vehicle
onto the DYNO? - ANS -1) check tire pressure, 2) restrain the vehicle, 3) and when
necessary position the cooling fan
When preparing the vehicle fir the ASM test where do you Insert the analyzer
probe ? - ANS -Into the tailpipe
ASM TEST: Automatic transmissions should be tested in which gear ? - ANS -In
drive
ASM TEST: manual transmissions should be tested on which gear ? - ANS -Second
gear
What are the two loaded mode sequences for the ASM TEST ? - ANS -50/15 and
25/25
What is the IDLE TEST? (Visible smoke part of the test) - ANS -Observe the tailpipe
exhaust plume for ten seconds
What is the crankcase test ? (Part of the visible smoke test ) - ANS -Observe the
engine crankcase for ten seconds
What is the bar snap test ? - ANS -Quickly push and release the pedal from the
idle position to between 2000 and 3000 rpm then immediately allow the engine
to return to idle
DETAILED ANSWERS WITH FULL COMPLETE
SOLUTIONS |ALREADY GRADED A+
The Inspector must check for any visible smoke from the ..? (2 places ) - ANS -
Engine cranckase (underhood) and tailpipe
Low pressure fuel EVAP test is required on all ____ and older ___ powered
vehicles ??? - ANS -95 and older ; gasoline
OBD -II is required on most __ and newer gasoline powered vehicles ?? - ANS -96
and newer
Fuel cap test is required on all __ and older gasoline powered vehicles ?? - ANS -
95 and older
ASM tests, using the dynamometer are required on most gasoline vehicles EXCEPT
: - ANS -Vehicles equipped with full time AWD or non disengaging traction control,
motor homes ,heavy duty vehicles exceeding 5000 lbs (unloaded ) on the driven
axle. In these cases a two speed idle test is required to prevent from causing
damage to the dynamometer
TSI is required on all gasoline powered vehicles registered in which two areas ? -
ANS -Basic and change of ownership
The ASM test tests for which gases? - ANS -Oxides of NITROGEN OR NOX
, What are the steps to preparing a vehicle for an ASM TEST? To load the vehicle
onto the DYNO? - ANS -1) check tire pressure, 2) restrain the vehicle, 3) and when
necessary position the cooling fan
When preparing the vehicle fir the ASM test where do you Insert the analyzer
probe ? - ANS -Into the tailpipe
ASM TEST: Automatic transmissions should be tested in which gear ? - ANS -In
drive
ASM TEST: manual transmissions should be tested on which gear ? - ANS -Second
gear
What are the two loaded mode sequences for the ASM TEST ? - ANS -50/15 and
25/25
What is the IDLE TEST? (Visible smoke part of the test) - ANS -Observe the tailpipe
exhaust plume for ten seconds
What is the crankcase test ? (Part of the visible smoke test ) - ANS -Observe the
engine crankcase for ten seconds
What is the bar snap test ? - ANS -Quickly push and release the pedal from the
idle position to between 2000 and 3000 rpm then immediately allow the engine
to return to idle
