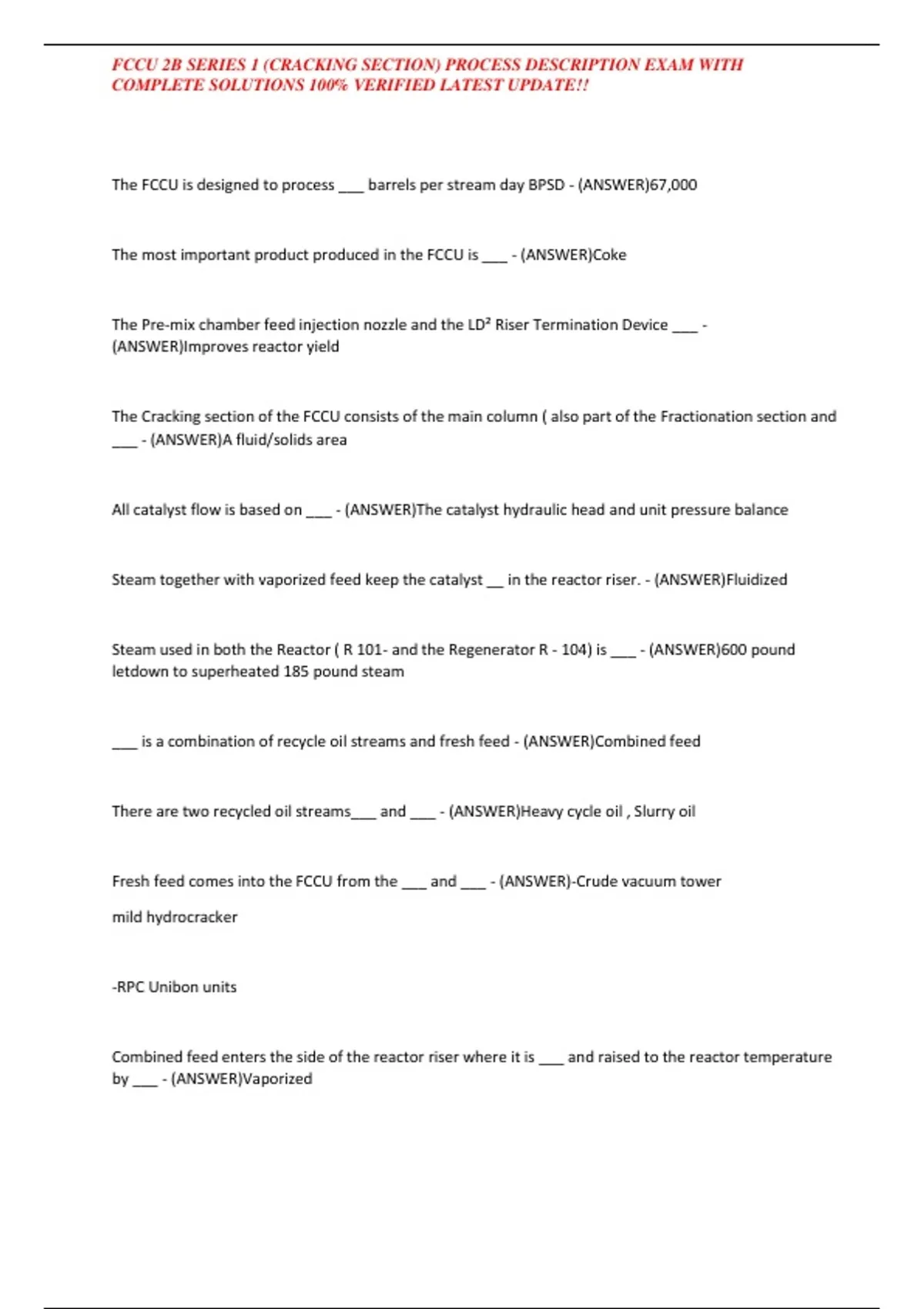

FCCU 2B SERIES 1 (CRACKING SECTION) PROCESS DESCRIPTION EXAM WITH
COMPLETE SOLUTIONS 100% VERIFIED LATEST UPDATE!!
The FCCU is designed to process ___ barrels per stream day BPSD - (ANSWER)67,000
The most important product produced in the FCCU is ___ - (ANSWER)Coke
The Pre-mix chamber feed injection nozzle and the LD² Riser Termination Device ___ -
(ANSWER)Improves reactor yield
The Cracking section of the FCCU consists of the main column ( also part of the Fractionation section and
___ - (ANSWER)A fluid/solids area
All catalyst flow is based on ___ - (ANSWER)The catalyst hydraulic head and unit pressure balance
Steam together with vaporized feed keep the catalyst __ in the reactor riser. - (ANSWER)Fluidized
Steam used in both the Reactor ( R 101- and the Regenerator R - 104) is ___ - (ANSWER)600 pound
letdown to superheated 185 pound steam
___ is a combination of recycle oil streams and fresh feed - (ANSWER)Combined feed
There are two recycled oil streams___ and ___ - (ANSWER)Heavy cycle oil , Slurry oil
Fresh feed comes into the FCCU from the ___ and ___ - (ANSWER)-Crude vacuum tower
mild hydrocracker
-RPC Unibon units
Combined feed enters the side of the reactor riser where it is ___ and raised to the reactor temperature
by ___ - (ANSWER)Vaporized
, FCCU 2B SERIES 1 (CRACKING SECTION) PROCESS DESCRIPTION EXAM WITH
COMPLETE SOLUTIONS 100% VERIFIED LATEST UPDATE!!
Hot regenerated catalyst
The combined feed begins to crack when it contacts hot catalyst in the riser , and continues cracking
until ___ - (ANSWER)The oil vapors are disengaged from the catalyst in the reactor
These cracked products flow in a ____ phase through the reactor vapor line to the main fractionating
column . - (ANSWER)Vapor
Because catalytic cracking reactions are ___ energy must be continuously supplied to sustain the
cracking reactions in the reactor - (ANSWER)Endothermic
This additional energy is imported as heat to the reactor by transfer of ____ from the catalyst
regeneration section - (ANSWER)Hot catylist
The catalyst has two functions in the Reactor ( 55R - 101 ) to ___and to act as a ___ . -
(ANSWER)Promote cracking reactions
Heat transfer agent
In Reactor ( 55R - 101 ) , catalyst is referred to as " Spent " when ___ (the carbon residue of the
processed feed stock) is deposited on the catalyst as a resulting of the cracking process - (ANSWER)Coke
Spent catalyst exits the bottom of Reactor ( 55R - 101 ) and flows into the middle of the Regenerator /
Combustor ( 55R - 104 ) where it will be ___ - (ANSWER)Regenerated and Re-heated
The phrase "Regenerating the catalyst " actually refers to the___ - (ANSWER)Separation of coke from
the spent catalyst
During normal operation , a heater is not necessary to heat the catalyst because___ creating the heat
source for the unit - (ANSWER)The Coke from the spent catalyst combusts
