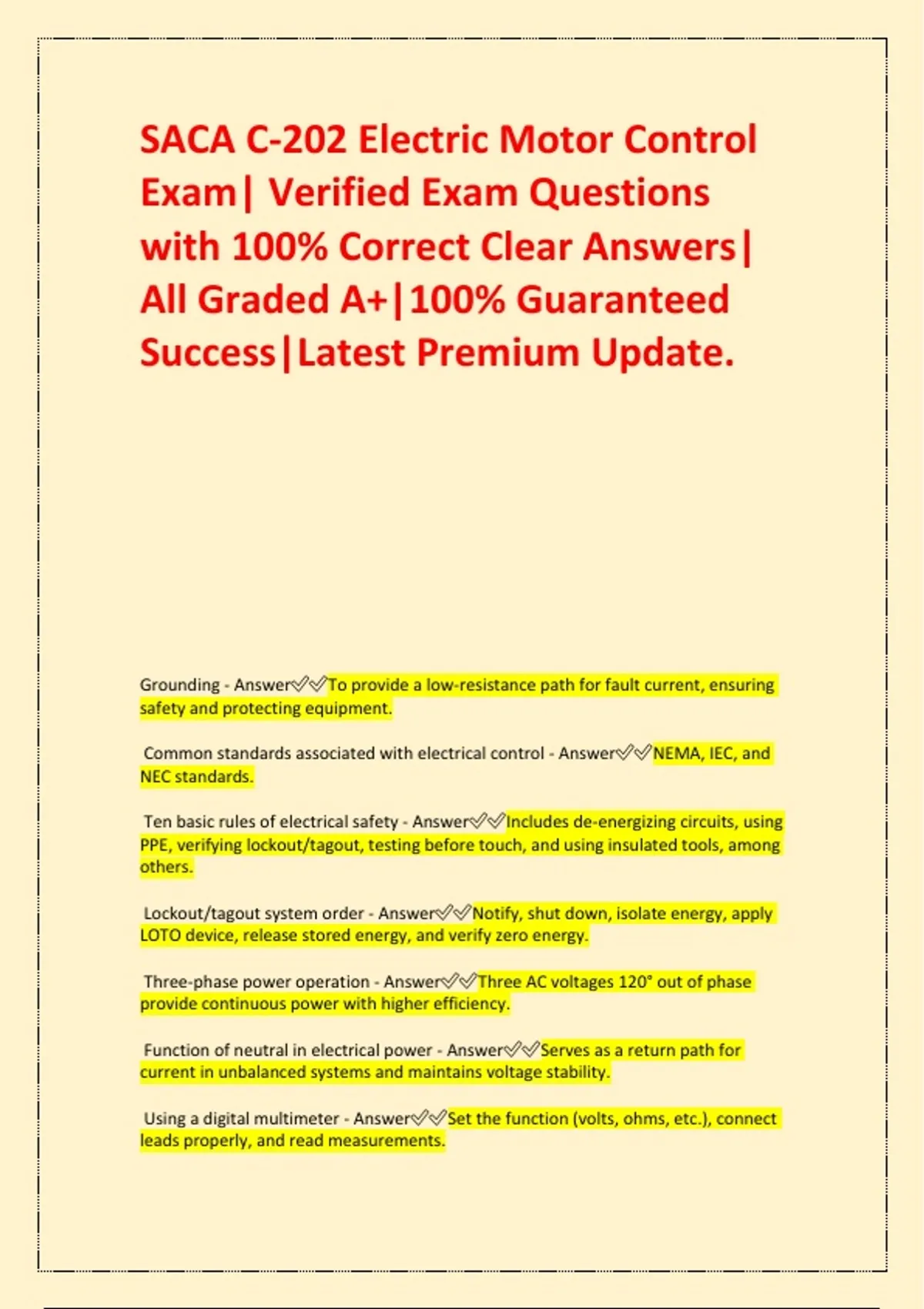

SACA C-202 Electric Motor Control
Exam| Verified Exam Questions
with 100% Correct Clear Answers|
All Graded A+|100% Guaranteed
Success|Latest Premium Update.
Grounding - Answer✅✅To provide a low-resistance path for fault current, ensuring
safety and protecting equipment.
Common standards associated with electrical control - Answer✅✅NEMA, IEC, and
NEC standards.
Ten basic rules of electrical safety - Answer✅✅Includes de-energizing circuits, using
PPE, verifying lockout/tagout, testing before touch, and using insulated tools, among
others.
Lockout/tagout system order - Answer✅✅Notify, shut down, isolate energy, apply
LOTO device, release stored energy, and verify zero energy.
Three-phase power operation - Answer✅✅Three AC voltages 120° out of phase
provide continuous power with higher efficiency.
Function of neutral in electrical power - Answer✅✅Serves as a return path for
current in unbalanced systems and maintains voltage stability.
Using a digital multimeter - Answer✅✅Set the function (volts, ohms, etc.), connect
leads properly, and read measurements.
, Grounded and ungrounded systems - Answer✅✅Grounded systems have one
conductor connected to ground for safety; ungrounded systems do not, which can
delay fault detection.
Overcurrent protection devices - Answer✅✅Fuses melt under excess current;
breakers trip; overloads respond to sustained heat or current.
Three-phase motor operation - Answer✅✅Uses rotating magnetic fields from
three-phase power to turn the rotor.
Interpreting motor's nameplate data - Answer✅✅Includes voltage, current, RPM,
phase, service factor, and efficiency.
Connecting dual-voltage three-phase motor - Answer✅✅Use parallel connection
for low voltage (e.g., 230V) and series for high voltage (e.g., 460V).
Functions of motor control - Answer✅✅Starting, stopping, reversing, speed control,
and overload protection.
Motor control relay circuit interpretation - Answer✅✅Understand how control
relays activate coils and change contact states to control the motor.
Operation of different types of motor starters - Answer✅✅Manual, magnetic, and
solid-state starters vary by control type and application.
Low-voltage protection - Answer✅✅Shuts off the motor if voltage drops and
prevents automatic restart when voltage returns.
Types of motor overload devices - Answer✅✅Thermal (bimetallic), magnetic, and
electronic overloads.
Motor control and transformer schematic symbols - Answer✅✅Symbols represent
transformer coils, cores, and taps.
Operation of transformers - Answer✅✅Transfers electrical energy between circuits
via electromagnetic induction.
Turns ratio and secondary voltage of a transformer - Answer✅✅Secondary voltage
= (Primary Voltage) × (Secondary Turns / Primary Turns).
Function of an electrical schematic diagram - Answer✅✅Visually represents how
components are connected and function.
Testing a transformer - Answer✅✅How do you test a transformer?
Multimeter - Answer✅✅Use a multimeter to check for continuity and correct
output voltage.
