Exam (elaborations)

ATT Week 5 Exam Questions with Correct Answers| Updated 2026

0.0
(0 reviews)
- sold
11 pages
2025/2026 Written for academic year
Institution ATT
Course ATT
Document preview thumbnail
Preview 2 out of 11 pages

the full collection of Week 5 exam questions for the ATT course, including all correct answers. It focuses on diodes, limiters, clampers, transistor configurations, amplifier classes, coupling methods, multistage amplifier troubleshooting, and key electronic component behaviors. The material provides a complete and structured overview designed to support students preparing for assessments aligned with the ATT curriculum.

Content preview

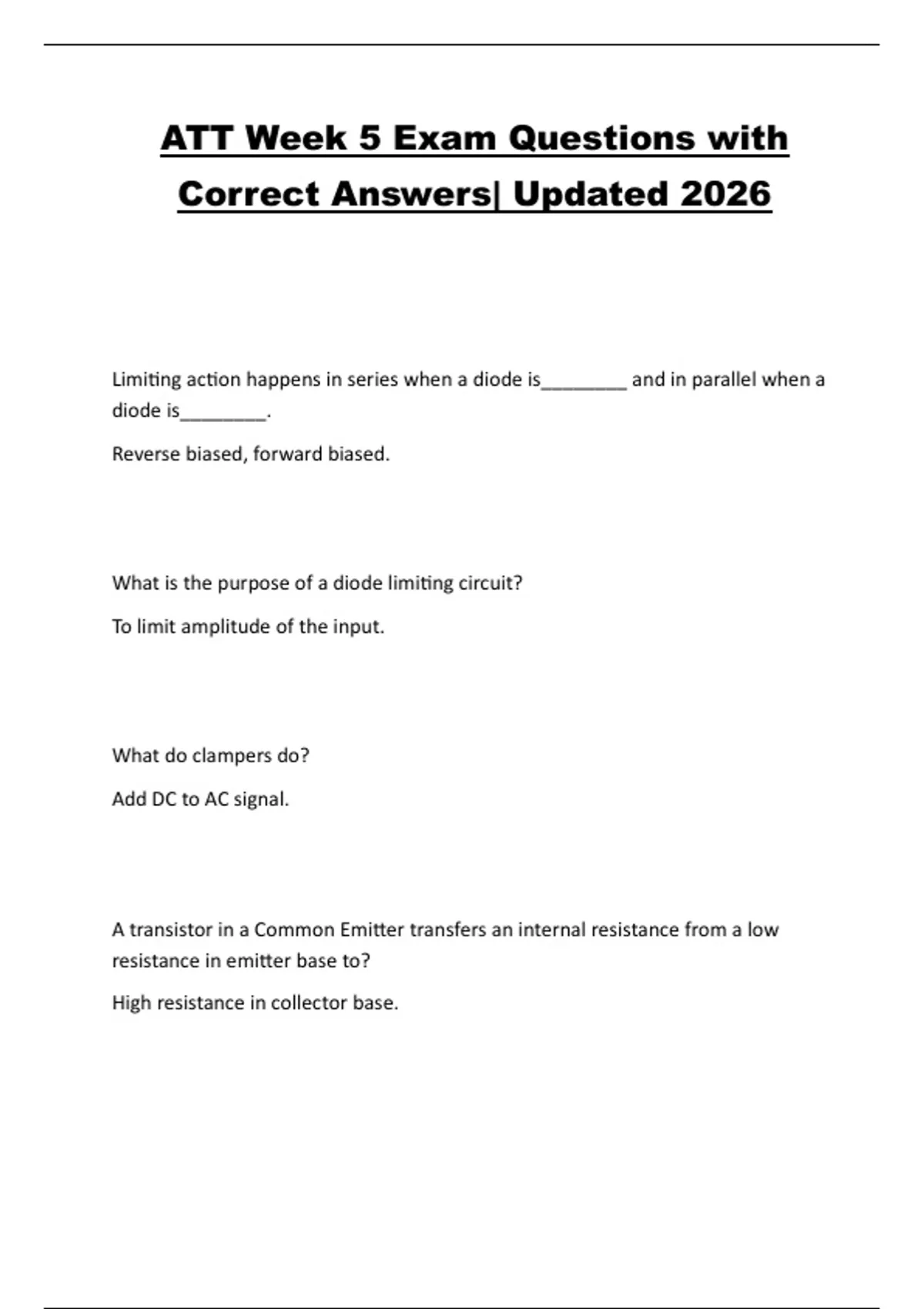

ATT Week 5 Exam Questions with
Correct Answers| Updated 2026




Limiting action happens in series when a diode is________ and in parallel when a
diode is________.

Reverse biased, forward biased.




What is the purpose of a diode limiting circuit?
To limit amplitude of the input.




What do clampers do?
Add DC to AC signal.




A transistor in a Common Emitter transfers an internal resistance from a low
resistance in emitter base to?

High resistance in collector base.

, Ie (Emitter current) = ?
Ib (base current) + Ic (collector current)




When does cutoff occur in a Common Emitter?

When Emitter PN junction is reversed.




A Common Emitter has a gain of how much?
10




How does a Common Emitter affect the phase of an input signal?

It inverts the input 180° (flip)




A Common Collector has a gain of how much?

1 (no phase inversion)




A Common Base has a gain of how much?
10 (no phase inversion)

Document information

Uploaded on
November 27, 2025
Number of pages
11
Written in
2025/2026
Type
Exam (elaborations)
Contains
Questions & answers
