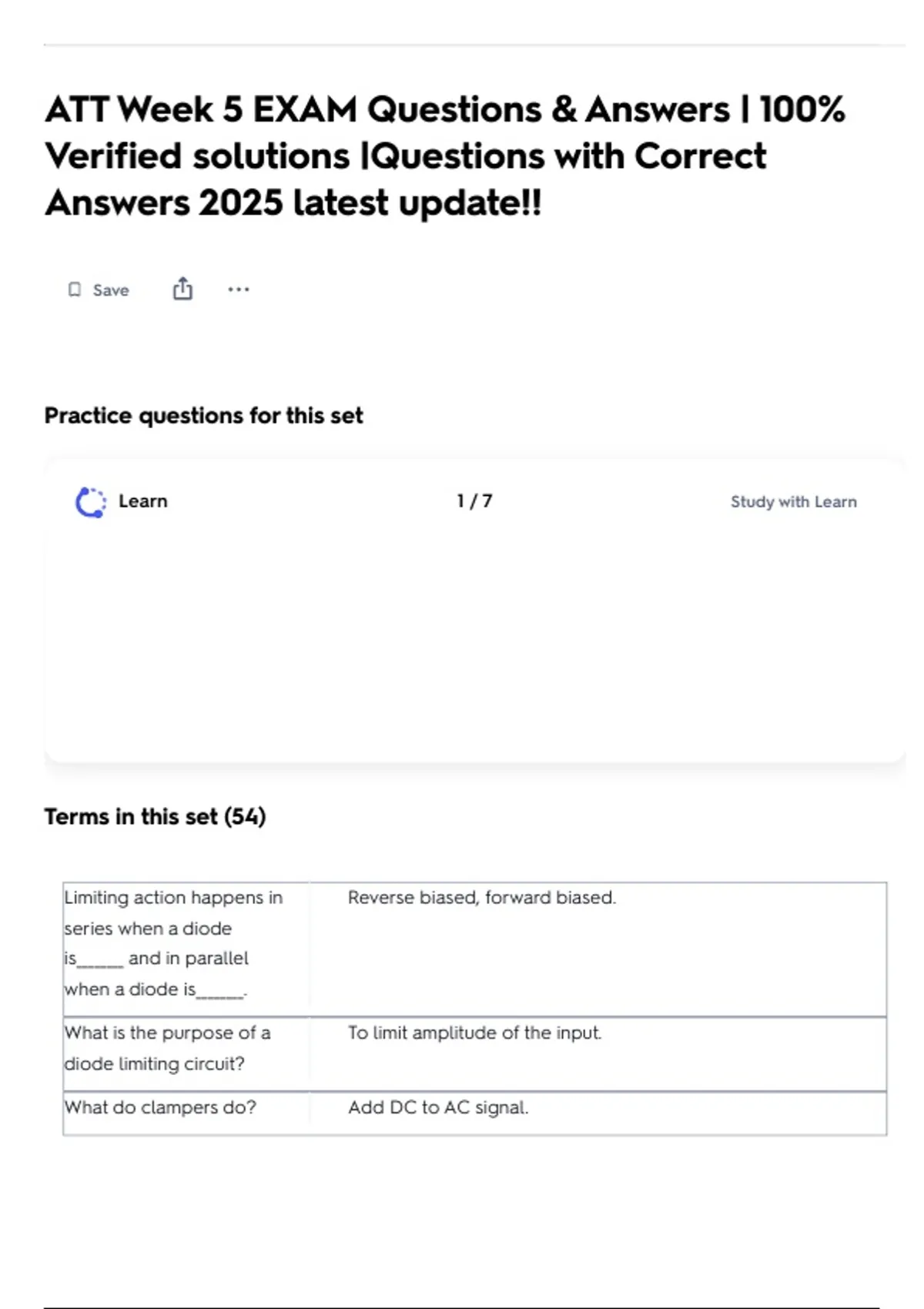

ATT Week 5 EXAM Questions & Answers | 100%
Verified solutions |Questions with Correct
Answers 2025 latest update!!
Save
Practice questions for this set
Learn 1 /7 Study with Learn
Terms in this set (54)
Limiting action happens in Reverse biased, forward biased.
series when a diode
is________ and in parallel
when a diode is________.
What is the purpose of a To limit amplitude of the input.
diode limiting circuit?
What do clampers do? Add DC to AC signal.
, A transistor in a Common High resistance in collector base.
Emitter transfers an
internal resistance from a
low resistance in emitter
base to?
Ie (Emitter current) = ? Ib (base current) + Ic (collector current)
When does cutoff occur in When Emitter PN junction is reversed.
a Common Emitter?
A Common Emitter has a 10
gain of how much?
How does a Common It inverts the input 180° (flip)
Emitter affect the phase of
an input signal?
A Common Collector has 1 (no phase inversion)
a gain of how much?
A Common Base has a 10 (no phase inversion)
gain of how much?
How do transistor By an AC input signal changing base bias.
amplifiers operate?
The component that Corresponding transistor part.
develops bias for a
transistor part is directly
connected to the_________.
In a Common Emitter, if Increases.
base voltage (base bias)
increases, emitter current
does what?
A small input controls Large output
a__________.
What is the most common RC (Resistive-capacitive)
type of Multi-stage
Amplifier?
