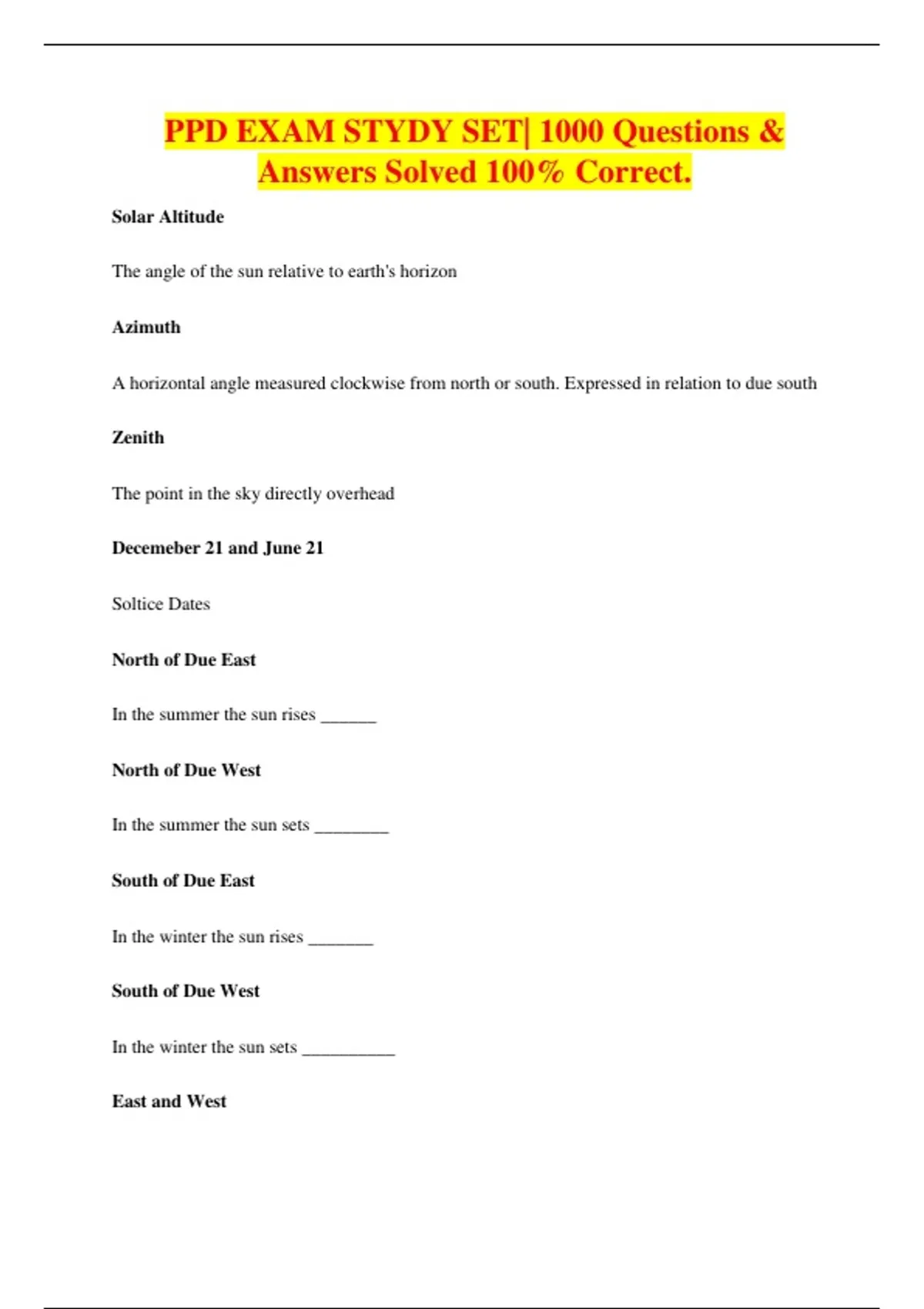

PPD EXAM STYDY SET| 1000 Questions &
Answers Solved 100% Correct.
Solar Altitude
The angle of the sun relative to earth's horizon
Azimuth
A horizontal angle measured clockwise from north or south. Expressed in relation to due south
Zenith
The point in the sky directly overhead
Decemeber 21 and June 21
Soltice Dates
North of Due East
In the summer the sun rises ______
North of Due West
In the summer the sun sets ________
South of Due East
In the winter the sun rises _______
South of Due West
In the winter the sun sets __________
East and West
,In the summer, which facades will receive more solar exposure
South
In the winter, which facade will receive more solar exposure
Radiation Square
A matrix showing the average amount of solar radiation a city receives for every hour and month
of the year
4%
When building on existing slopes, a slope under _____ is considered flat and is the easiest and
cheapest to build on
4-10%
When building on existing slopes, a slope between ____ is considered moderate
10%
When building on existing slopes, a slope over ____ is hard to climb and will be expensive to
build on
25%
Land with ____ slope is going to be susceptible to erosion and should be landscaped to help
prevent erosion
50%
Slopes over ____ will need to be terraced to prevent erosion
,2-4%
Drainage should have a ____ slope
.5-1.5%
Sewer lines should be sloped ____
1%
Paved areas should have a min ____ slope
8%
Car ramps should have a max slope of ___
10%
Sidewalks should have a max slope of ____
Increase
Shear stress will (increase/decrease) as the steepness increases
Reverse Bench
This is needed when slopes are over 15' tall. An erosion control technique where the slope is
notched to create a valley that collects water runoff to avoid massive amounts of water rushing
down a hill all at once
Convex Slope
Contours Closer together at the bottom and wider apart at the top. Slope protudes out and water
will pass over
, Concave Slope
Contours closer at the top and wider apart at the bottom. Slope will dip in and create a place for
water to collect
Deed
A written document that lists the name of the owner, the name of the person or entity the
property was purchased from and describes the boundaries of the property
Plat
Public land record showing how land is subdivided. These show streets, rights of way,
easements, lots, and setbacks
Master Plan
used during design phase to show how the site will be developed, including building placements
and how a projects construct will be phased (if applicable)
Survey
A legal document depicting the location, shape and boundaries of a land parcel
Plane
the most common method to draw survey. Shows land as a flat plane
Land Survey
Survey that uses metes and bounds to define the measurements of site and the location of the
property boundaries
