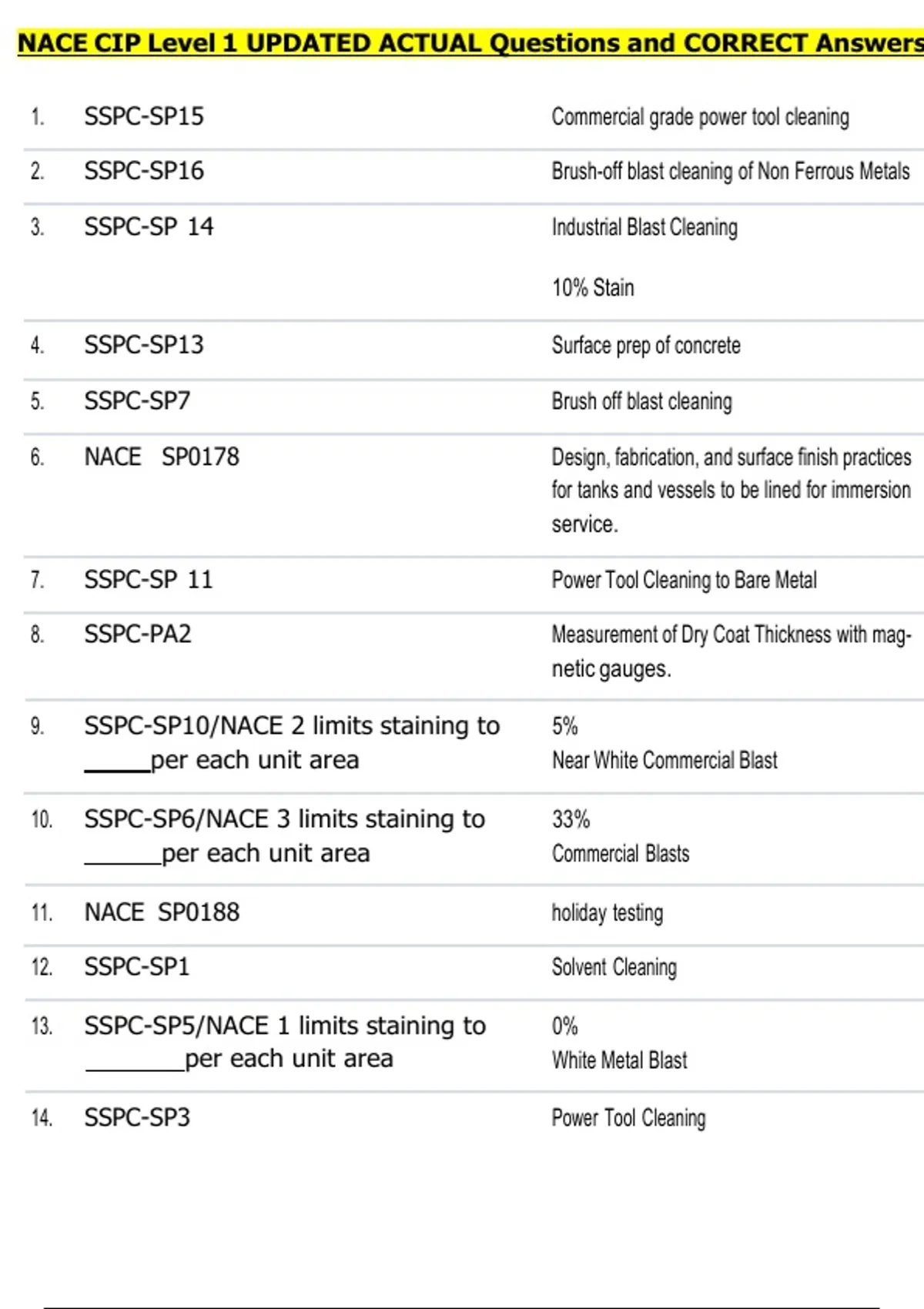

NACE CIP Level 1 UPDATED ACTUAL Questions and CORRECT Answers
1. SSPC-SP15 Commercial grade power tool cleaning
2. SSPC-SP16 Brush-off blast cleaning of Non Ferrous Metals
3. SSPC-SP 14 Industrial Blast Cleaning
10% Stain
4. SSPC-SP13 Surface prep of concrete
5. SSPC-SP7 Brush off blast cleaning
6. NACE SP0178 Design, fabrication, and surface finish practices
for tanks and vessels to be lined for immersion
service.
7. SSPC-SP 11 Power Tool Cleaning to Bare Metal
8. SSPC-PA2 Measurement of Dry Coat Thickness with mag-
netic gauges.
9. SSPC-SP10/NACE 2 limits staining to 5%
per each unit area Near White Commercial Blast
10. SSPC-SP6/NACE 3 limits staining to 33%
per each unit area Commercial Blasts
11. NACE SP0188 holiday testing
12. SSPC-SP1 Solvent Cleaning
13. SSPC-SP5/NACE 1 limits staining to 0%
per each unit area White Metal Blast
14. SSPC-SP3 Power Tool Cleaning
,15. SSPC-SP2 Hand Tool Cleaning
16. ASTM D 4417 surface profile blast cleaned steel
17. SA-3 Blast Cleaning to Visually Clean Steel
18. SA 2 1/2 Very Thorough Blast Cleaning
19. Sa 2 Thorough Blast Cleaning
20. SA 1 Light Blast Cleaning
21. St 3 Very Thorough Hand and Power Tool Cleaning
22. St 2 Thorough Hand and Power Tool Cleaning
23. 2 Non-convertible coating types 1. Evaporation cure 2. Coalescence cure
24. SSPC-VIS1 Defines surface covered with Grade B
and rust as what grade?
25. SSPC-SP2 True
ISO St 3
ISO St 2
All deal with hand tool Cleaning. True or
false?
26. Acrylic A plastic resin that, when mixed with water and
pigment, forms an inorganic and quick-drying
paint medium.
-Excellent UV and weather resistance
27. Polyaspartic
, -Used to achieve low or near zero VOC systems
-pot lives from 5 minutes to several hours
-Film builds up to (15 mils) DFT in a single pass
28. Phenolic Typically used where low PH environments and
Higher Temperature are factors
29. latex (Emulsions) -Resins normally thermoplastic resin types
-Coalescence curing
(Non-convertible)
30. Furans -Applied by Brick layers not coating applicators.
-Not a common coating type
31. epoxy -Two parts, resin and hardener must be mixed.
-Can be solvent-based, water-based, or sol-
vent-free
32. Alkyds -Oxidative curing
-Reffered to as "Oil Based Paints"
33. Polyurethane Two major types:
-Alphatic
-Aromatic
(Main Hazard is isocyanate component) cancer
causing
34. Polysiloxane -Used in services with abrasion, chemicals, ex-
treme UV and high temperature
35. Chlorinated Rubber -Evaporative curing
-Contains large amounts of VOC
