1|Page

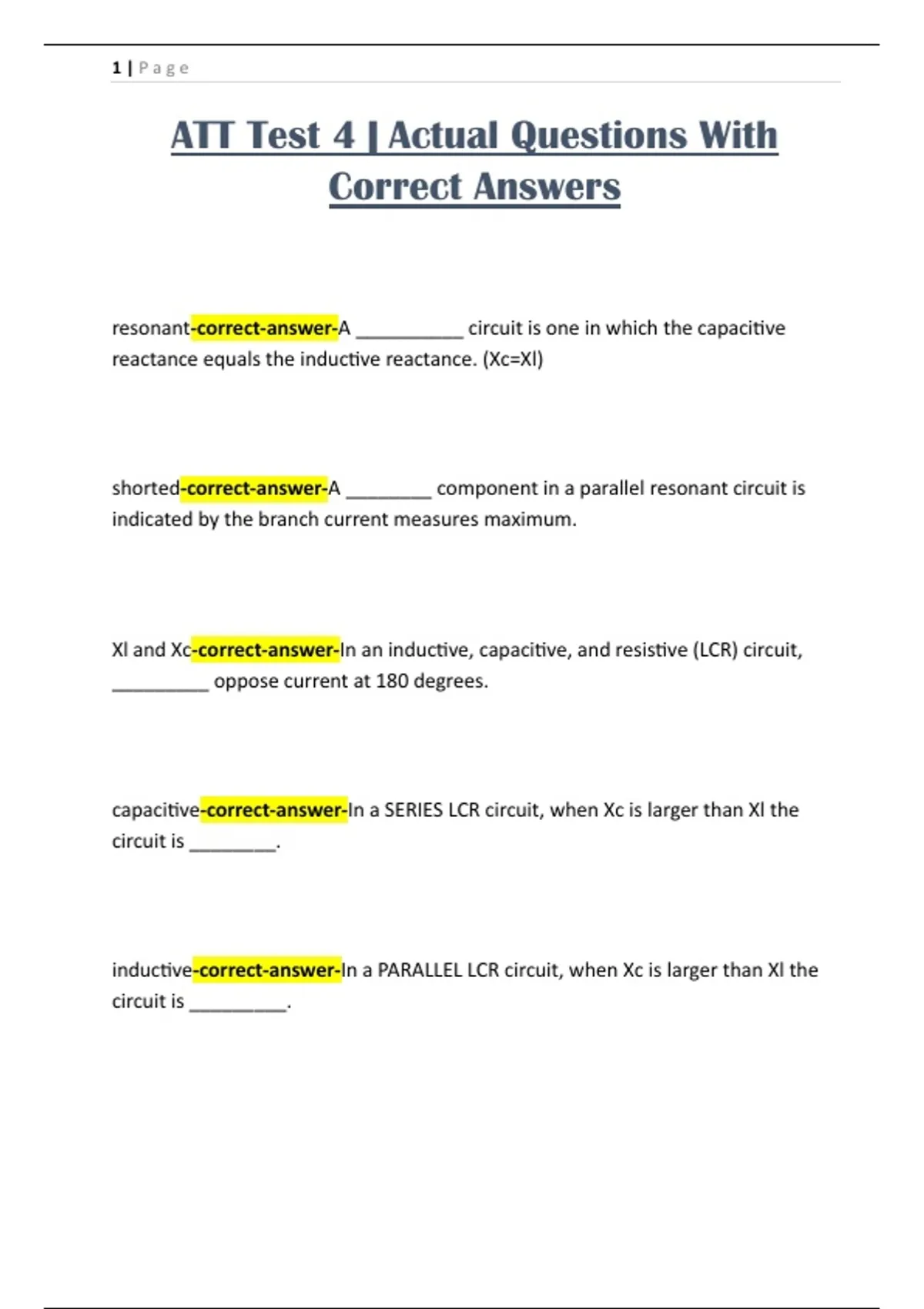

ATT Test 4 | Actual Questions With
Correct Answers
resonant-correct-answer-A __________ circuit is one in which the capacitive
reactance equals the inductive reactance. (Xc=Xl)
shorted-correct-answer-A ________ component in a parallel resonant circuit is
indicated by the branch current measures maximum.
Xl and Xc-correct-answer-In an inductive, capacitive, and resistive (LCR) circuit,
_________ oppose current at 180 degrees.
capacitive-correct-answer-In a SERIES LCR circuit, when Xc is larger than Xl the
circuit is ________.
inductive-correct-answer-In a PARALLEL LCR circuit, when Xc is larger than Xl the
circuit is _________.
, 2|Page
decreases below the resonance-correct-answer-In a PARALLEL resonant circuit
that has an OPEN inductor, the voltage drop across the sampling resistor, Rs,
___________________.
secondary-correct-answer-The output of a transformer is taken from the
_________.
opens and shorts-correct-answer-The most common faults found in transformers
are ___________.
prevents magnetic fields from developing in the primary-correct-answer-An OPEN
in the PRIMARY of a transformer causes no output voltage because the OPEN
____________________.
solid state device-correct-answer-The N indicates what in the Identification
number?
a bar-correct-answer-The cathode of a diode is represented by _________.
