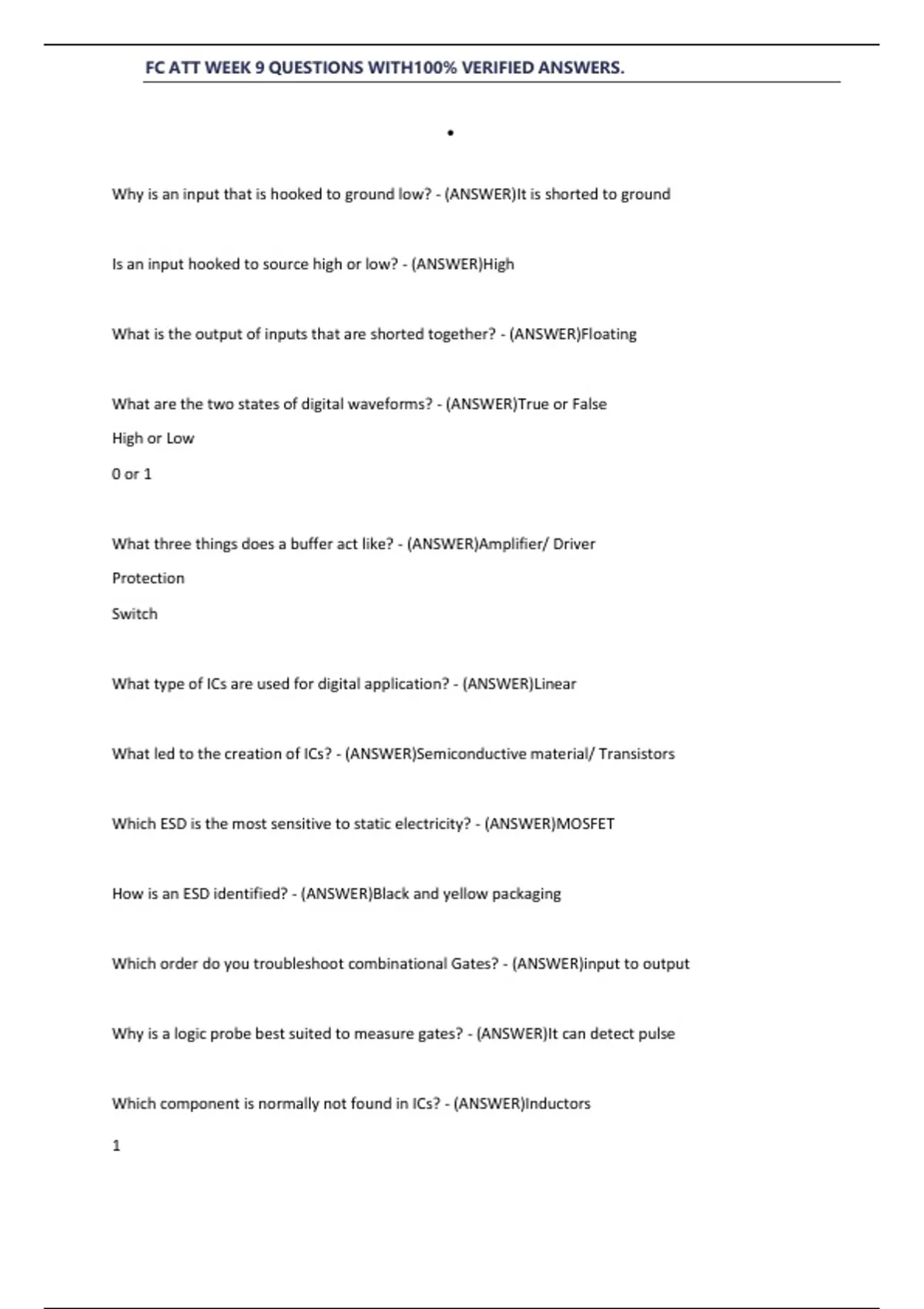

FC ATT WEEK 9 QUESTIONS WITH100% VERIFIED ANSWERS.
Why is an input that is hooked to ground low? - (ANSWER)It is shorted to ground
Is an input hooked to source high or low? - (ANSWER)High
What is the output of inputs that are shorted together? - (ANSWER)Floating
What are the two states of digital waveforms? - (ANSWER)True or False
High or Low
0 or 1
What three things does a buffer act like? - (ANSWER)Amplifier/ Driver
Protection
Switch
What type of ICs are used for digital application? - (ANSWER)Linear
What led to the creation of ICs? - (ANSWER)Semiconductive material/ Transistors
Which ESD is the most sensitive to static electricity? - (ANSWER)MOSFET
How is an ESD identified? - (ANSWER)Black and yellow packaging
Which order do you troubleshoot combinational Gates? - (ANSWER)input to output
Why is a logic probe best suited to measure gates? - (ANSWER)It can detect pulse
Which component is normally not found in ICs? - (ANSWER)Inductors
1
, FC ATT WEEK 9 QUESTIONS WITH100% VERIFIED ANSWERS.
How many devices are in an SSI? - (ANSWER)less than 12
How many devices are in an MSI? - (ANSWER)12 - 99
How many devices are in an LSI? - (ANSWER)100 - 999
How many devices are in a VLSI? - (ANSWER)1,000 - 99,999
How many devices are in an ULSI? - (ANSWER)100,000 or more
Data Book - (ANSWER)Used to provide Descriptions, Diagrams and characteristics of ICs
Why are ESDs so sensitive to static electricity? - (ANSWER)The operate with very low current and voltage
levels
How does humidity effect ESDs? - (ANSWER)It will affect magnitude and static charge
Static Electricity - (ANSWER)Phenomenon created by rubbing two materials together
Tools, work surface, and floors must be ________________ when working with ESDs. -
(ANSWER)Grounded
What causes internal IC faults? - (ANSWER)internal component failure
Combinational Logic - (ANSWER)Combining two or more gates
2
