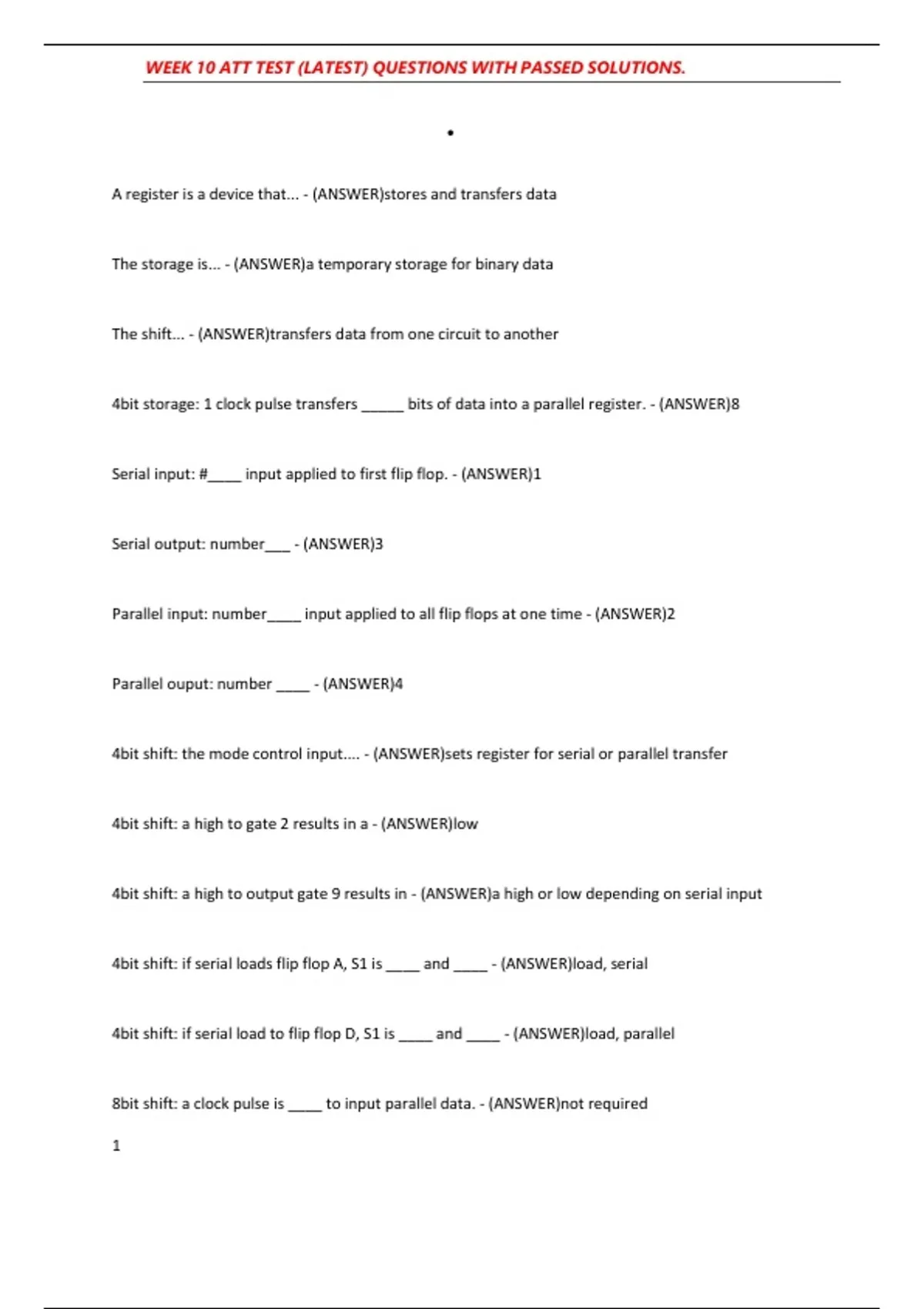

WEEK 10 ATT TEST (LATEST) QUESTIONS WITH PASSED SOLUTIONS.
A register is a device that... - (ANSWER)stores and transfers data
The storage is... - (ANSWER)a temporary storage for binary data
The shift... - (ANSWER)transfers data from one circuit to another
4bit storage: 1 clock pulse transfers _____ bits of data into a parallel register. - (ANSWER)8
Serial input: #____ input applied to first flip flop. - (ANSWER)1
Serial output: number___ - (ANSWER)3
Parallel input: number____ input applied to all flip flops at one time - (ANSWER)2
Parallel ouput: number ____ - (ANSWER)4
4bit shift: the mode control input.... - (ANSWER)sets register for serial or parallel transfer
4bit shift: a high to gate 2 results in a - (ANSWER)low
4bit shift: a high to output gate 9 results in - (ANSWER)a high or low depending on serial input
4bit shift: if serial loads flip flop A, S1 is ____ and ____ - (ANSWER)load, serial
4bit shift: if serial load to flip flop D, S1 is ____ and ____ - (ANSWER)load, parallel
8bit shift: a clock pulse is ____ to input parallel data. - (ANSWER)not required
1
, WEEK 10 ATT TEST (LATEST) QUESTIONS WITH PASSED SOLUTIONS.
8bit shift: serial synchronous is applied to ____ input. - (ANSWER)DATA
8bit shift: parallel asynchronous is applied to ____ input. - (ANSWER)PRE
Data shifted manually is called... - (ANSWER)asynchronous
Data shifted automatically is called... - (ANSWER)synchronous
64bit memory: word is... - (ANSWER)a complete piece of digital data
64bit memory: address is... - (ANSWER)location of data in memory
64bit memory: write is... - (ANSWER)transferring data into memory
64bit memory: read is.... - (ANSWER)transferring data from memory
A counter is a... - (ANSWER)circuit that performs counting operations in binary
With counter RESET (00), after one clock pulse, flip flop A will ____ and B will ____. - (ANSWER)set; reset
In a counter, input is applied to... - (ANSWER)C
An adder can be used for multiplying by... - (ANSWER)doing a series of additions
Gate 2 and 4 are half adders for ... - (ANSWER)C1, A and B
2
