ATT WEEK 5 QUESTIONS WITH 100% CORRECT ANSWERS.

Content preview

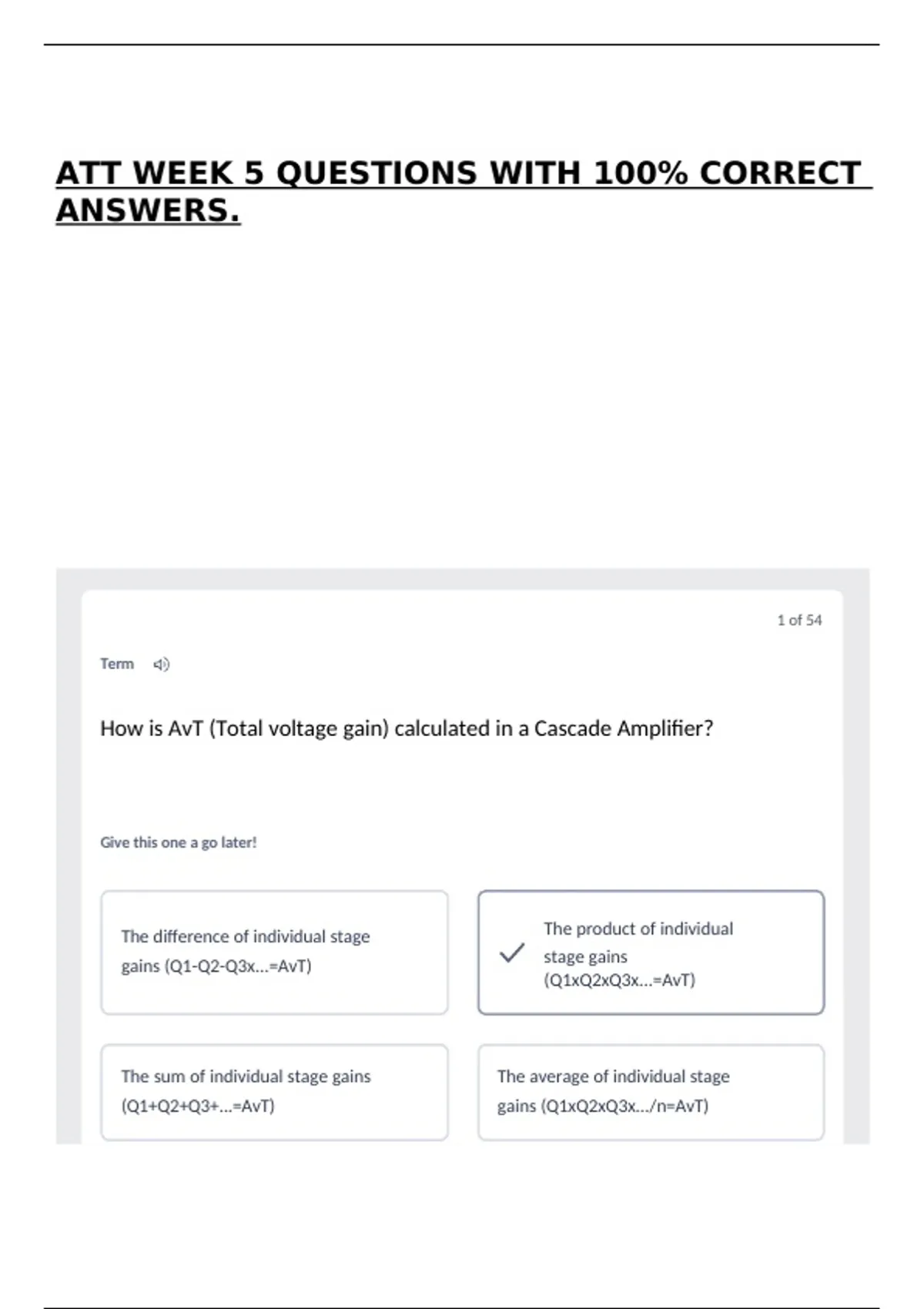

ATT WEEK 5 QUESTIONS WITH 100% CORRECT
ANSWERS.




1 of 54

Term



How is AvT (Total voltage gain) calculated in a Cascade Amplifier?



Give this one a go later!




The difference of individual stage The product of individual
gains (Q1-Q2-Q3x...=AvT) stage gains
(Q1xQ2xQ3x...=AvT)




The sum of individual stage gains The average of individual stage
(Q1+Q2+Q3+...=AvT) gains (Q1xQ2xQ3x.../n=AvT)

, Don't know?




2 of 54

Term



A small input controls a____.



Give this one a go later!



Variable output Stable output




Minimal output Large output


Don't know?




3 of 54

Term



Limiting action happens in series when a diode is________
and in parallel when a diode is _.



Give this one a go later!



Shorted, open circuit. Neutral biased, reverse biased.

, Reverse biased,
Bypassed, grounded. forward biased.


Don't know?




4 of 54

Term



A Common Collector has a gain of how much?



Give this one a go later!



To increase signal strength. A reactive component.




10 (no phase inversion) 1 (no phase inversion)


Don't know?




5 of 54

Term



Ie (Emitter current) = ?



Give this one a go later!



Ib (base current) + By an AC input signal changing
Ic (collector base bias.
current)
