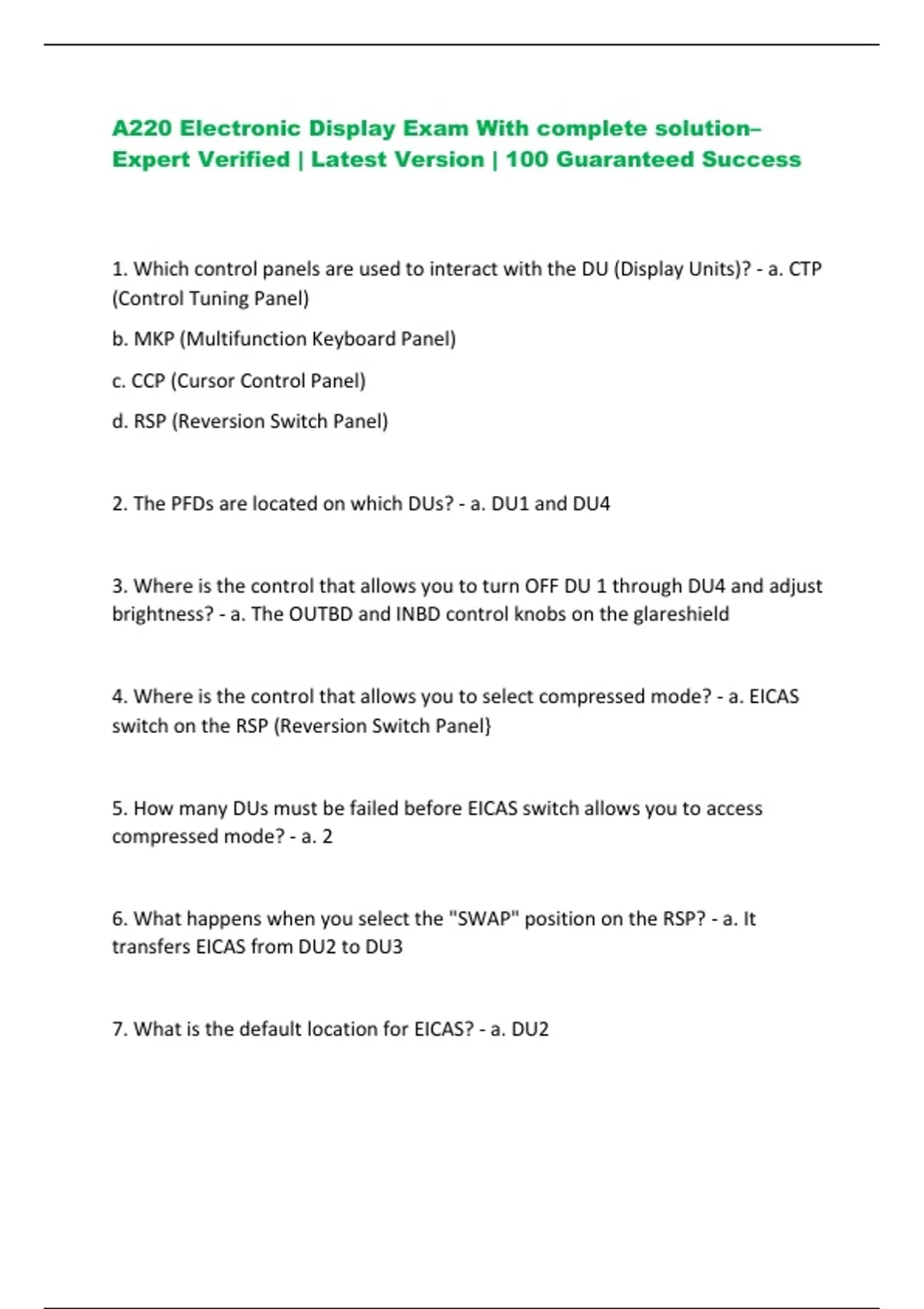

A220 Electronic Display Exam With complete solution–
Expert Verified | Latest Version | 100 Guaranteed Success
1. Which control panels are used to interact with the DU (Display Units)? - a. CTP
(Control Tuning Panel)
b. MKP (Multifunction Keyboard Panel)
c. CCP (Cursor Control Panel)
d. RSP (Reversion Switch Panel)
2. The PFDs are located on which DUs? - a. DU1 and DU4
3. Where is the control that allows you to turn OFF DU 1 through DU4 and adjust
brightness? - a. The OUTBD and INBD control knobs on the glareshield
4. Where is the control that allows you to select compressed mode? - a. EICAS
switch on the RSP (Reversion Switch Panel}
5. How many DUs must be failed before EICAS switch allows you to access
compressed mode? - a. 2
6. What happens when you select the "SWAP" position on the RSP? - a. It
transfers EICAS from DU2 to DU3
7. What is the default location for EICAS? - a. DU2
, 8. What is the purpose of the DSPL TUNE INHIB switch on the RSP? - a. It inhibits
the tuning on the display using the CNS synoptic page
9. What is the purpose of the L/R CURSOR INHIB switches? - a. It disables the
trackball of the associated CCP
10. What is the purpose of the ADS and IRS switches on the RSP? - a. It allows
manual selection of an alternate source for the selected display (L PFD or R PFD)
11. What Is the purpose of the FD/AT ALTN switch? - a. It allows the transfer of
the active DMC
12. What indication do you get if you try to select the EICAS switch to a function
that is not available? - a. SELECTION INACTIVE
13. On which areas is it impossible to get the cursor on? - a. PFD sections on
whatever DU (normal mode or compressed) and EICAS area
14. How do we call the position to which the cursor goes to when the DSPL UPR or
LWR is selected? - a. Cursor Home Position
15. What other means can be used to move the cursor other than the trackball? -
a. Arrow keys on the MKP
b. DSPL SEL: UPR or LWR on the CCP
16. What happens to the cursor after 3 min of inactivity? - a. It fades out
(becomes ghosted)
