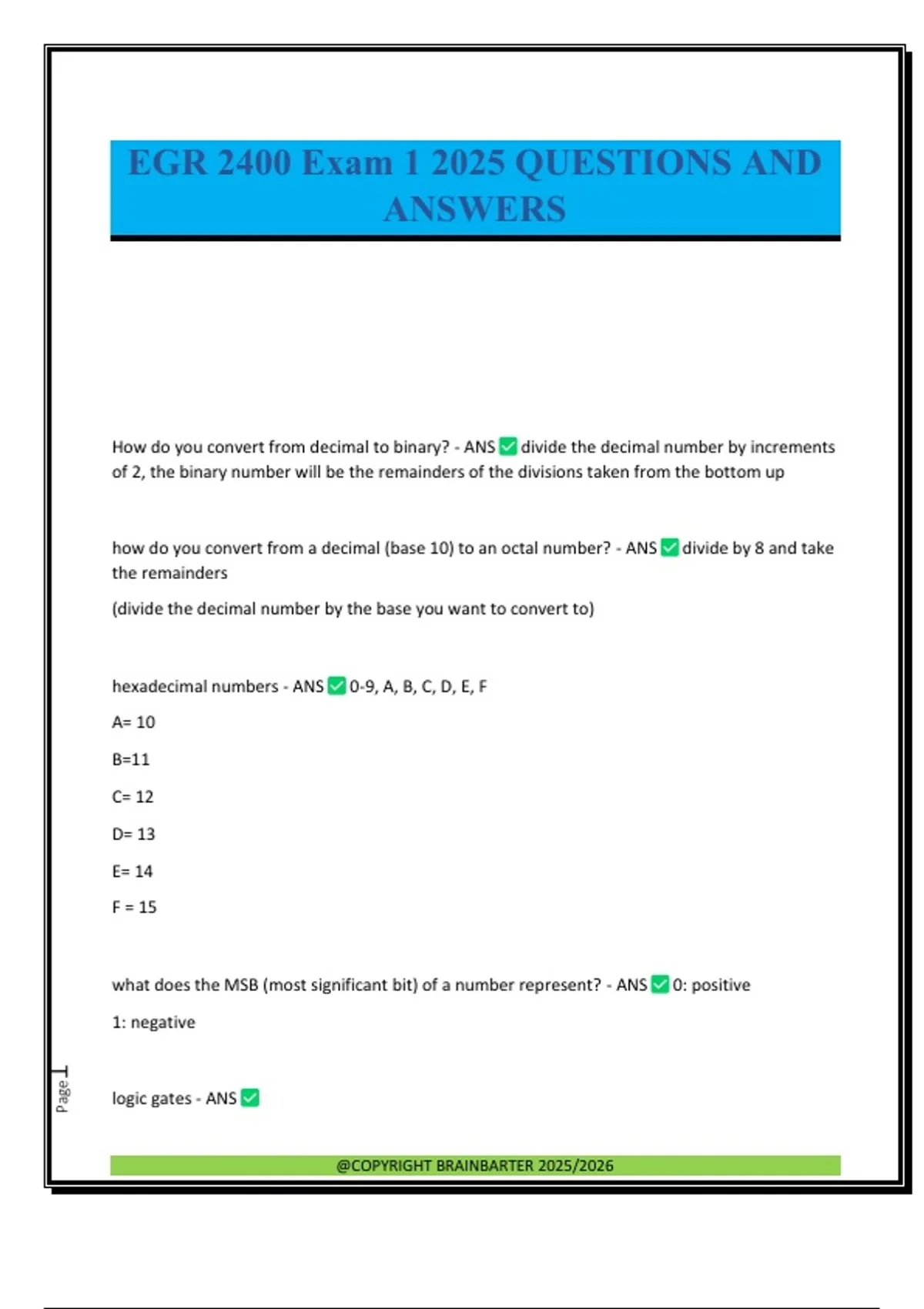

EGR 2400 Exam 1 2025 QUESTIONS AND ANSWERS

EGR 2400 Exam 1 2025 QUESTIONS AND
ANSWERS




How do you convert from decimal to binary? - ANS divide the decimal number by increments
of 2, the binary number will be the remainders of the divisions taken from the bottom up



how do you convert from a decimal (base 10) to an octal number? - ANS divide by 8 and take
the remainders
(divide the decimal number by the base you want to convert to)



hexadecimal numbers - ANS 0-9, A, B, C, D, E, F
A= 10
B=11
C= 12
D= 13
E= 14
F = 15



what does the MSB (most significant bit) of a number represent? - ANS 0: positive
1: negative
1
Page




logic gates - ANS


@COPYRIGHT BRAINBARTER 2025/2026

, 1's Complement - ANS MSB = 0: the number is positive
the remaining n-1 bits represent the magnitude


MSB = 1: the number is negative
the remaining n-1 bits do not represent the magnitude
to change the sign- invert all the bits



2's Complement - ANS MSB = 0: the number is positive and the remaining n-1 bits represent
the magnitude


MSB = 1, the number is negative, and the remaining n-1 bits DO NOT represent the magnitude
-to change the sign, invert all the bits and add 1 to the LSB



gray code - ANS allows only one bit to change between successive numbers



BCD code - ANS binary coded decimal
-encoding scheme that encodes using the 4 bit binary equivalent



in a multiple input AND gate, what happens to an open input and why? - ANS an open input
will float high
-if it does not float high, then the open input will automatically make the output go low



XOR gate - ANS outputs a 1 when exactly one input is a 1
-inputs must be different to output a high
"wink detector"
2
