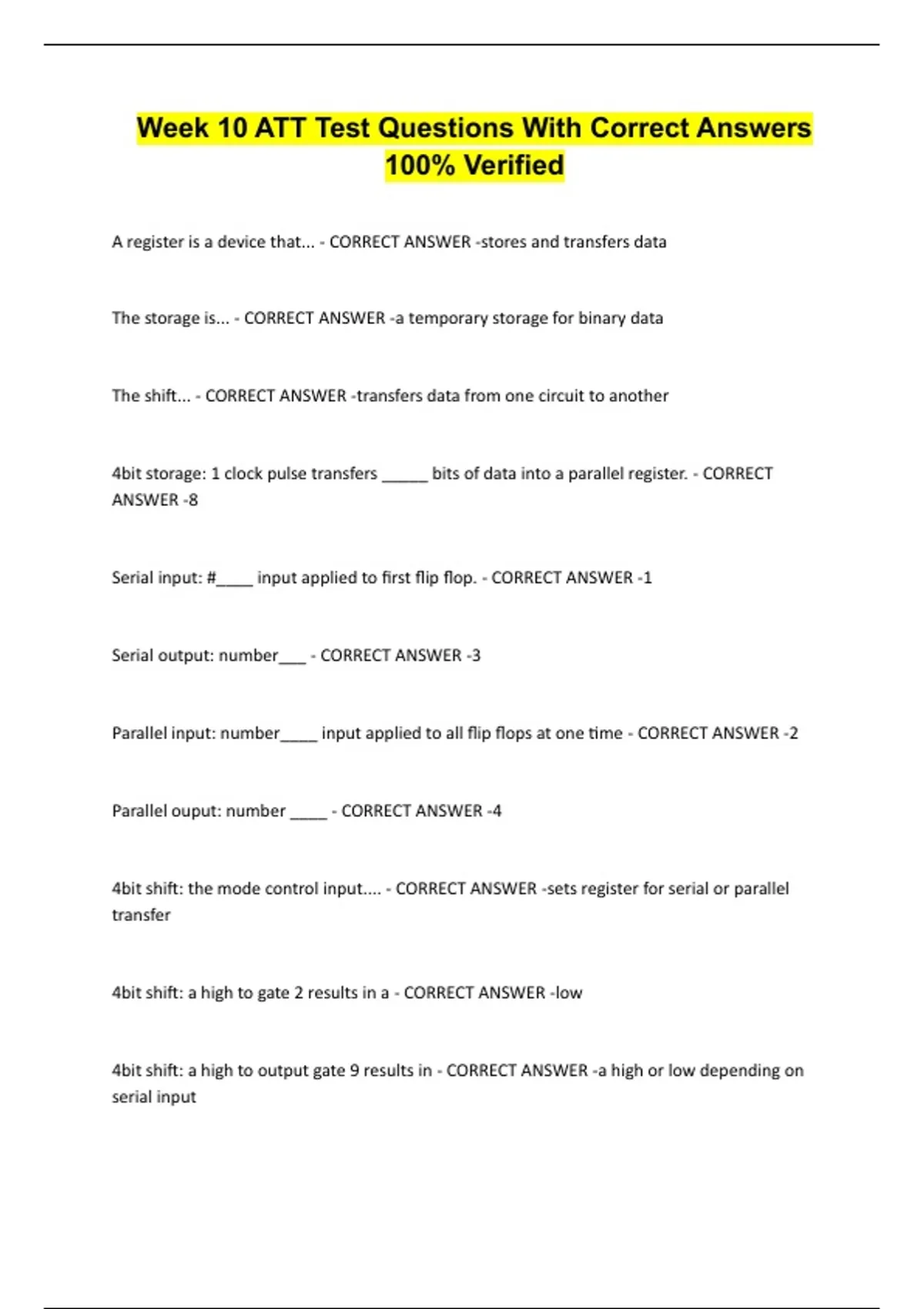

Week 10 ATT Test Questions With Correct Answers
100% Verified
A register is a device that... - CORRECT ANSWER -stores and transfers data
The storage is... - CORRECT ANSWER -a temporary storage for binary data
The shift... - CORRECT ANSWER -transfers data from one circuit to another
4bit storage: 1 clock pulse transfers _____ bits of data into a parallel register. - CORRECT
ANSWER -8
Serial input: #____ input applied to first flip flop. - CORRECT ANSWER -1
Serial output: number___ - CORRECT ANSWER -3
Parallel input: number____ input applied to all flip flops at one time - CORRECT ANSWER -2
Parallel ouput: number ____ - CORRECT ANSWER -4
4bit shift: the mode control input.... - CORRECT ANSWER -sets register for serial or parallel
transfer
4bit shift: a high to gate 2 results in a - CORRECT ANSWER -low
4bit shift: a high to output gate 9 results in - CORRECT ANSWER -a high or low depending on
serial input
, 4bit shift: if serial loads flip flop A, S1 is ____ and ____ - CORRECT ANSWER -load, serial
4bit shift: if serial load to flip flop D, S1 is ____ and ____ - CORRECT ANSWER -load, parallel
8bit shift: a clock pulse is ____ to input parallel data. - CORRECT ANSWER -not required
8bit shift: serial synchronous is applied to ____ input. - CORRECT ANSWER -DATA
8bit shift: parallel asynchronous is applied to ____ input. - CORRECT ANSWER -PRE
Data shifted manually is called... - CORRECT ANSWER -asynchronous
Data shifted automatically is called... - CORRECT ANSWER -synchronous
64bit memory: word is... - CORRECT ANSWER -a complete piece of digital data
64bit memory: address is... - CORRECT ANSWER -location of data in memory
64bit memory: write is... - CORRECT ANSWER -transferring data into memory
64bit memory: read is.... - CORRECT ANSWER -transferring data from memory
A counter is a... - CORRECT ANSWER -circuit that performs counting operations in binary
