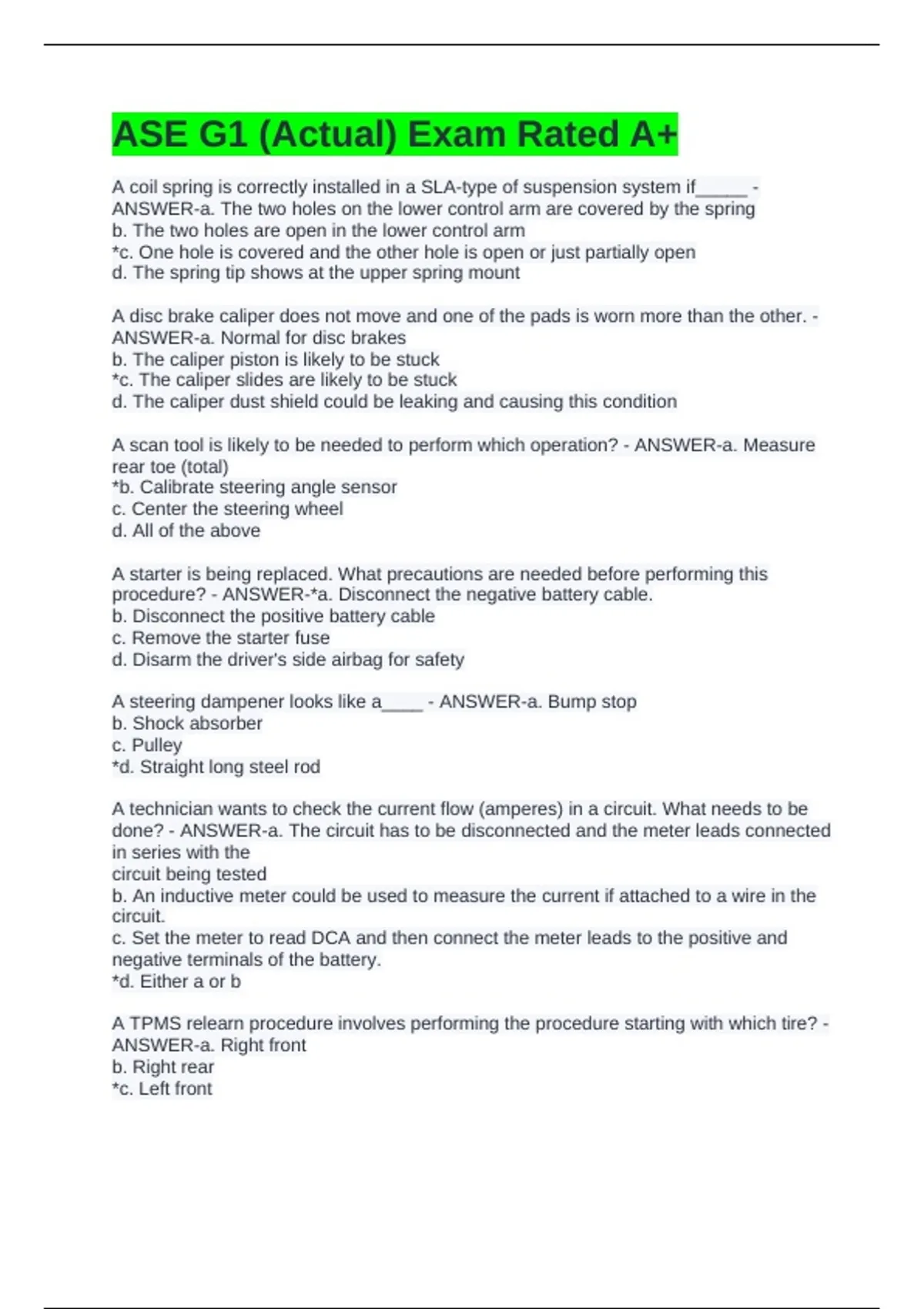

ASE G1 (Actual) Exam Rated A+
A coil spring is correctly installed in a SLA-type of suspension system if_____ -
ANSWER-a. The two holes on the lower control arm are covered by the spring
b. The two holes are open in the lower control arm
*c. One hole is covered and the other hole is open or just partially open
d. The spring tip shows at the upper spring mount
A disc brake caliper does not move and one of the pads is worn more than the other. -
ANSWER-a. Normal for disc brakes
b. The caliper piston is likely to be stuck
*c. The caliper slides are likely to be stuck
d. The caliper dust shield could be leaking and causing this condition
A scan tool is likely to be needed to perform which operation? - ANSWER-a. Measure
rear toe (total)
*b. Calibrate steering angle sensor
c. Center the steering wheel
d. All of the above
A starter is being replaced. What precautions are needed before performing this
procedure? - ANSWER-*a. Disconnect the negative battery cable.
b. Disconnect the positive battery cable
c. Remove the starter fuse
d. Disarm the driver's side airbag for safety
A steering dampener looks like a____ - ANSWER-a. Bump stop
b. Shock absorber
c. Pulley
*d. Straight long steel rod
A technician wants to check the current flow (amperes) in a circuit. What needs to be
done? - ANSWER-a. The circuit has to be disconnected and the meter leads connected
in series with the
circuit being tested
b. An inductive meter could be used to measure the current if attached to a wire in the
circuit.
c. Set the meter to read DCA and then connect the meter leads to the positive and
negative terminals of the battery.
*d. Either a or b
A TPMS relearn procedure involves performing the procedure starting with which tire? -
ANSWER-a. Right front
b. Right rear
*c. Left front
, d. Left rear
Accessory drive belts are checked for all except. - ANSWER-a. Cracks
b. Wear
*c. Length
d. Alignment
Automatic transmission cooling lines are located - ANSWER-*a. Between the
transmission and the radiator
b. Between the transmission and the rear axle
c. Inside the transmission or transaxle
d. Inside the HVAC module
Before replacing the filter in an automatic transmission/transaxle, why should service
information be checked first? - ANSWER-a. The filter may not be replaceable unless the
unit is disassembled
b. The filter may be a spin-on type filter
c. The pan may be required to be removed
*d. Any of the above
Before road testing a vehicle to determine if the automatic transmission is performing
normally, which should be performed? - ANSWER-a. Check for any stored diagnostic
trouble codes
b. Check the fluid level
c. Check the fluid condition and color
*d. All of the above
Brake lines should be inspected for what faults? - ANSWER-a. Leaks
b. Kinks
c. Rust
*d. All of the above
Cabin filters - ANSWER-a. May be accessed from inside the vehicle on the passenger
side behind the glove
compartment
b. Under the hood on the passenger side.
c. Should be replaced as part of regular maintenance
*d. All of the above
Coolant should be tested for - ANSWER-a. Proper color
b. Freezing point (temperature)
c. Specific gravity
*d. Both b and c
CV Joint boots should be carefully inspected during routine service because they are
A coil spring is correctly installed in a SLA-type of suspension system if_____ -
ANSWER-a. The two holes on the lower control arm are covered by the spring
b. The two holes are open in the lower control arm
*c. One hole is covered and the other hole is open or just partially open
d. The spring tip shows at the upper spring mount
A disc brake caliper does not move and one of the pads is worn more than the other. -
ANSWER-a. Normal for disc brakes
b. The caliper piston is likely to be stuck
*c. The caliper slides are likely to be stuck
d. The caliper dust shield could be leaking and causing this condition
A scan tool is likely to be needed to perform which operation? - ANSWER-a. Measure
rear toe (total)
*b. Calibrate steering angle sensor
c. Center the steering wheel
d. All of the above
A starter is being replaced. What precautions are needed before performing this
procedure? - ANSWER-*a. Disconnect the negative battery cable.
b. Disconnect the positive battery cable
c. Remove the starter fuse
d. Disarm the driver's side airbag for safety
A steering dampener looks like a____ - ANSWER-a. Bump stop
b. Shock absorber
c. Pulley
*d. Straight long steel rod
A technician wants to check the current flow (amperes) in a circuit. What needs to be
done? - ANSWER-a. The circuit has to be disconnected and the meter leads connected
in series with the
circuit being tested
b. An inductive meter could be used to measure the current if attached to a wire in the
circuit.
c. Set the meter to read DCA and then connect the meter leads to the positive and
negative terminals of the battery.
*d. Either a or b
A TPMS relearn procedure involves performing the procedure starting with which tire? -
ANSWER-a. Right front
b. Right rear
*c. Left front
, d. Left rear
Accessory drive belts are checked for all except. - ANSWER-a. Cracks
b. Wear
*c. Length
d. Alignment
Automatic transmission cooling lines are located - ANSWER-*a. Between the
transmission and the radiator
b. Between the transmission and the rear axle
c. Inside the transmission or transaxle
d. Inside the HVAC module
Before replacing the filter in an automatic transmission/transaxle, why should service
information be checked first? - ANSWER-a. The filter may not be replaceable unless the
unit is disassembled
b. The filter may be a spin-on type filter
c. The pan may be required to be removed
*d. Any of the above
Before road testing a vehicle to determine if the automatic transmission is performing
normally, which should be performed? - ANSWER-a. Check for any stored diagnostic
trouble codes
b. Check the fluid level
c. Check the fluid condition and color
*d. All of the above
Brake lines should be inspected for what faults? - ANSWER-a. Leaks
b. Kinks
c. Rust
*d. All of the above
Cabin filters - ANSWER-a. May be accessed from inside the vehicle on the passenger
side behind the glove
compartment
b. Under the hood on the passenger side.
c. Should be replaced as part of regular maintenance
*d. All of the above
Coolant should be tested for - ANSWER-a. Proper color
b. Freezing point (temperature)
c. Specific gravity
*d. Both b and c
CV Joint boots should be carefully inspected during routine service because they are
