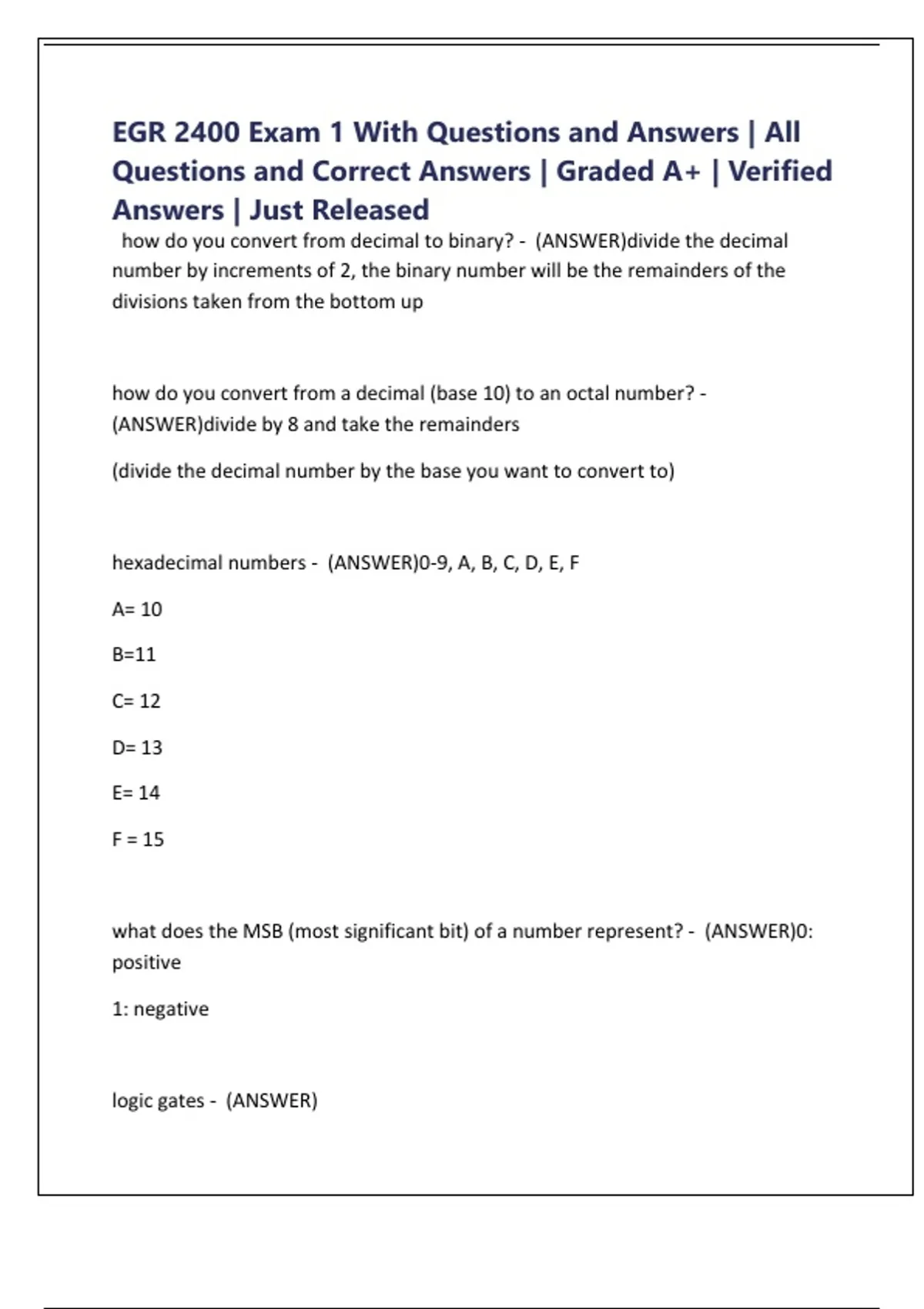

EGR 2400 Exam 1 With Questions and Answers | All
Questions and Correct Answers | Graded A+ | Verified
Answers | Just Released
how do you convert from decimal to binary? - (ANSWER)divide the decimal
number by increments of 2, the binary number will be the remainders of the
divisions taken from the bottom up



how do you convert from a decimal (base 10) to an octal number? -
(ANSWER)divide by 8 and take the remainders

(divide the decimal number by the base you want to convert to)



hexadecimal numbers - (ANSWER)0-9, A, B, C, D, E, F

A= 10

B=11

C= 12

D= 13

E= 14

F = 15



what does the MSB (most significant bit) of a number represent? - (ANSWER)0:
positive

1: negative



logic gates - (ANSWER)

, 1's Complement - (ANSWER)MSB = 0: the number is positive

the remaining n-1 bits represent the magnitude



MSB = 1: the number is negative

the remaining n-1 bits do not represent the magnitude

to change the sign- invert all the bits



2's Complement - (ANSWER)MSB = 0: the number is positive and the remaining n-
1 bits represent the magnitude



MSB = 1, the number is negative, and the remaining n-1 bits DO NOT represent
the magnitude

-to change the sign, invert all the bits and add 1 to the LSB



gray code - (ANSWER)allows only one bit to change between successive numbers



BCD code - (ANSWER)binary coded decimal

-encoding scheme that encodes using the 4 bit binary equivalent



in a multiple input AND gate, what happens to an open input and why? -
(ANSWER)an open input will float high
