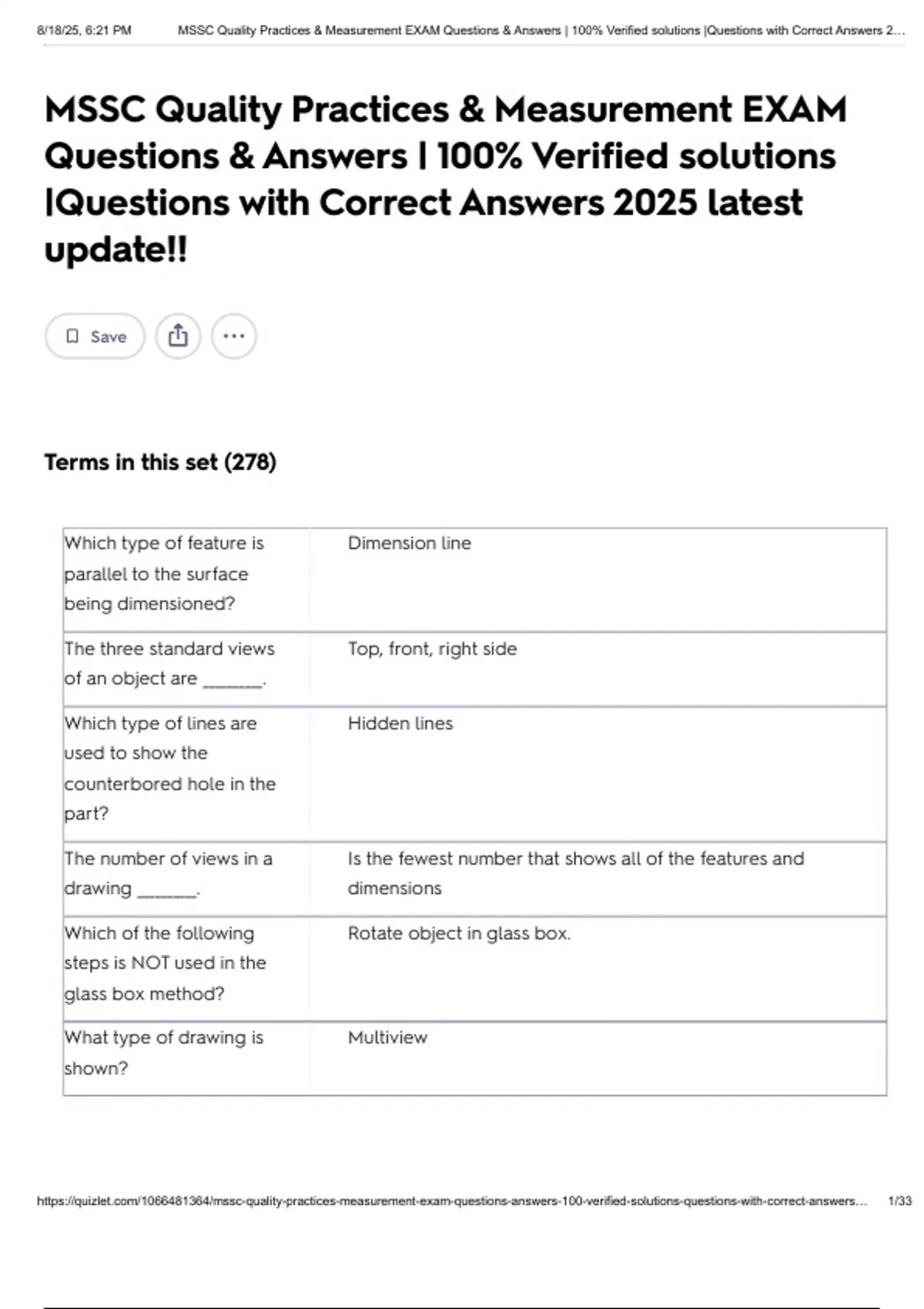

MSSC Quality Practices & Measurement EXAM
Questions & Answers | 100% Verified solutions
|Questions with Correct Answers 2025 latest
update!!
Save
Terms in this set (278)
Which type of feature is Dimension line
parallel to the surface
being dimensioned?
The three standard views Top, front, right side
of an object are __________.
Which type of lines are Hidden lines
used to show the
counterbored hole in the
part?
The number of views in a Is the fewest number that shows all of the features and
drawing __________. dimensions
Which of the following Rotate object in glass box.
steps is NOT used in the
glass box method?
What type of drawing is Multiview
shown?
https://quizlet.com/1066481364/mssc-quality-practices-measurement-exam-questions-answers-100-verified-solutions-questions-with-correct-answers… 1/33
,8/18/25, 6:21 PM MSSC Quality Practices & Measurement EXAM Questions & Answers | 100% Verified solutions |Questions with Correct Answers 2…
The dimensions of raw Stock size
material supplied by metal
suppliers are described by
the __________.
Which of these requires a CAD
computer?
An isometric drawing is a Pictorial drawing
type of __________.
In the graphic shown, the Concentric
two circles are __________.
Dimensions are used to Size
specify the __________ and
location of the features of
an object.
What feature in the figure D
shown is a Chamfer?
A __________ dimension is Shaft taper
described in inches per
foot.
What is the order of Object, Hidden, Center
precedence of lines in a
drawing?
Which of the following is Dimension hidden lines
not one of the six rules for
dimensioning an object?
Engineers sometimes use Protractor
a __________ to measure
angles on a drawing.
What dimension is Height
indicated in this graphic?
There are 60 minutes of Degree
arc in one __________.
https://quizlet.com/1066481364/mssc-quality-practices-measurement-exam-questions-answers-100-verified-solutions-questions-with-correct-answers… 2/33
,8/18/25, 6:21 PM MSSC Quality Practices & Measurement EXAM Questions & Answers | 100% Verified solutions |Questions with Correct Answers 2…
In manufacturing, a A technical drawing
blueprint is also called
what?
The distance across the 2¼
flats of the hex head
shown in the part drawing
is __________ inches.
The length of the part 9¾
shown in the drawing is
__________ inches.
Which type best describes Object Line
the line indicated in the
graphic?
Which of the following A
bolts is a grade 2?
The hole shown in the Counterbore
graphic is a __________ hole.
What are the two types of Exploded and basic
assembly drawings?
A sectional view __________. All of the above
Which of the following is Minor diameter
not used to specify a
threaded fastener?
Two types of threads are Internal and external
__________.
In the assembly drawing 4
shown, part 3 screws into
part __________.
https://quizlet.com/1066481364/mssc-quality-practices-measurement-exam-questions-answers-100-verified-solutions-questions-with-correct-answers… 3/33
, 8/18/25, 6:21 PM MSSC Quality Practices & Measurement EXAM Questions & Answers | 100% Verified solutions |Questions with Correct Answers 2…
The material that will be Cast iron
used to create the gear is
indicated in the part
drawing's title block to be
__________.
In a threaded fastener Shank
assembly what is designed
to protect the threads?
Manufacturing workers Measure the proper amount of torque
can use a calibrated
torque wrench to __________.
The part of a drawing that Drawing revision level
indicates that the drawing
has the most up to date
information on it is __________.
What type hole is shown Counterbored
in the figure?
The minor diameter of a Root of screw thread
screw thread is measured
at the __________.
Section lines in a sectional All of the above
view are __________.
To establish on a drawing 1/4=1
that 1/4 inch equals 1 inch,
the designer would write
__________.
Metals treated by __________ Annealing
processes become soft.
Where would you look in Revision number
a title block to see if there
has been changes?
https://quizlet.com/1066481364/mssc-quality-practices-measurement-exam-questions-answers-100-verified-solutions-questions-with-correct-answers… 4/33
