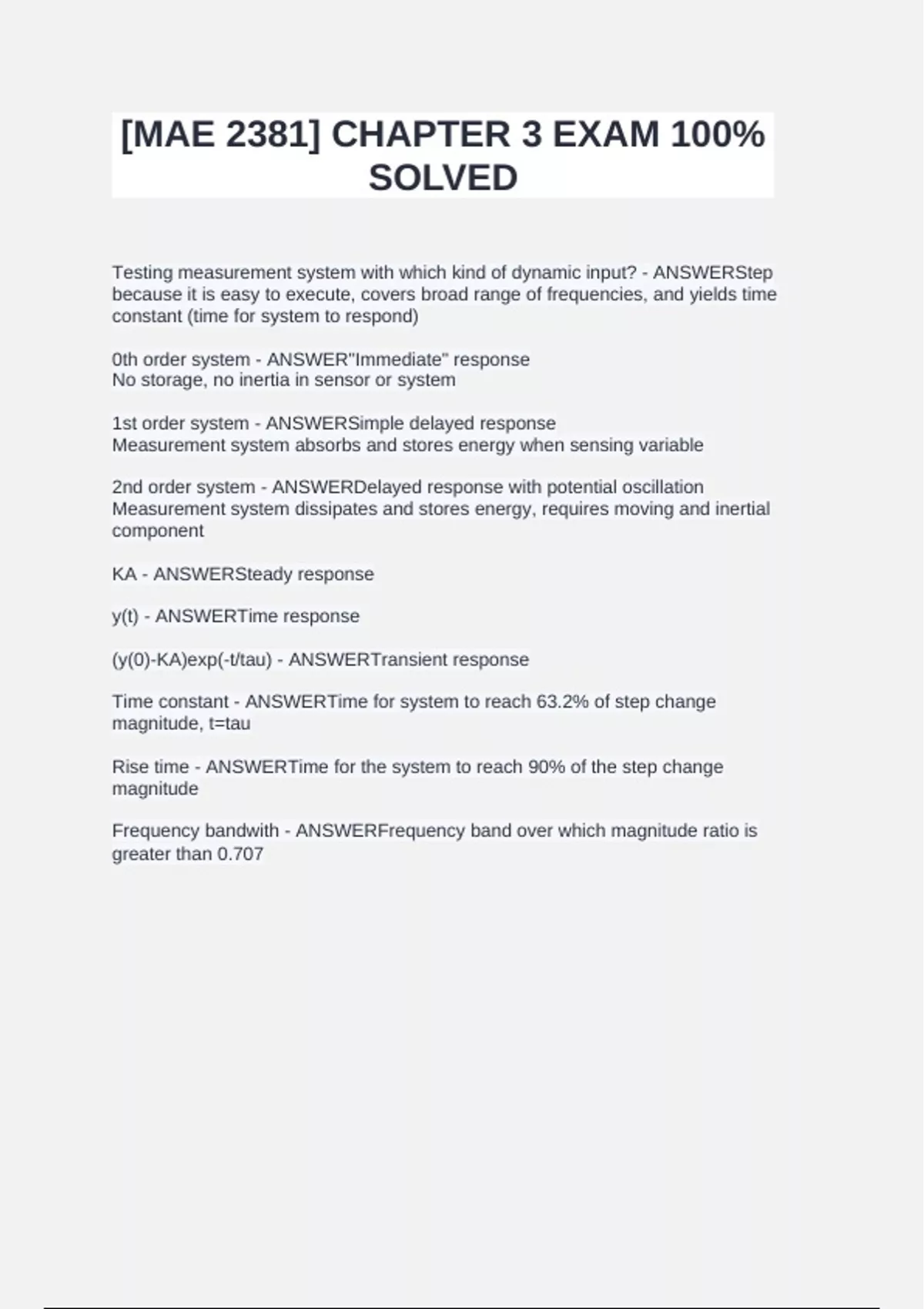

[MAE 2381] CHAPTER 3 EXAM 100%
SOLVED

Testing measurement system with which kind of dynamic input? - ANSWERStep
because it is easy to execute, covers broad range of frequencies, and yields time
constant (time for system to respond)

0th order system - ANSWER"Immediate" response
No storage, no inertia in sensor or system

1st order system - ANSWERSimple delayed response
Measurement system absorbs and stores energy when sensing variable

2nd order system - ANSWERDelayed response with potential oscillation
Measurement system dissipates and stores energy, requires moving and inertial
component

KA - ANSWERSteady response

y(t) - ANSWERTime response

(y(0)-KA)exp(-t/tau) - ANSWERTransient response

Time constant - ANSWERTime for system to reach 63.2% of step change
magnitude, t=tau

Rise time - ANSWERTime for the system to reach 90% of the step change
magnitude

Frequency bandwith - ANSWERFrequency band over which magnitude ratio is
greater than 0.707
